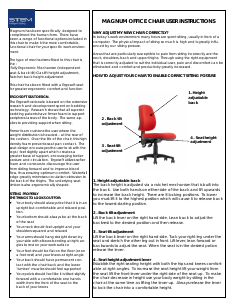

MAGNUM OFFICE CHAIR USER INSTRUCTIONS

WHY ADJUST MY NEW CHAIR CORRECTLY?

In today’s work environment many hours are spent sitting, usually in front of a

computer. The physical impact of sitting so much is high and is greatly influ-

enced by our sitting posture.

Areas that are particularly susceptible to pain from sitting incorrectly are the

neck, shoulders, back and upper thighs. Through using the right equipment

that is correctly adjusted to suit the individual user, pain and discomfort can be

eliminated and comfort and productivity greatly increased.

HOW TO ADJUST YOUR CHAIR TO ENABLE CORRECT SITTING POSTURE

1. Height adjustable back

The back height is adjusted via a ratchet mechanism that is built into

the back. Use both hands on either side of the back and lift upwards

to increase the back height. There are 8 locking positions. To lower

you must lift it to the highest position which will cause it to release back

to the lowest starting position.

2 . Back tilt adjustment

Lift the back lever on the right hand side. Lean back to adjust the

backrest to the desired position and then release.

3 . Seat tilt adjustment

Lift the back lever on the right hand side. Tuck your right leg under the

seat and stretch the other leg out in front. Lift lever, lean forward or

backwards to adjust the seat. When the seat is in the desired potion

release the lever.

4 . Seat height adjustment lever

Establish the right seating height with both the hips and knees comfort-

able at right angles. To increase the seat height lift your weight from

the seat lift the front lever under the right side of the seat up. To make

the chair decrease in height use your body weight by sitting in the

chair at the same time as lifting the lever up. Always release the lever

to lock the chair into a comfortable height.

Magnum has been specifically designed to

compliment the human form. There have

been a range of functional options included in

this chair to make it the most comfortable,

functional chair for your specific work environ-

ment.

The type of mechanisms fitted to this chair is

the :

Fully Ergonomic Mechanism (independent

seat & back tilt) Gas lift height adjustment,

Ratchet back height adjustment

This chair has been fitted with a Ergosoft seat

for greater ergonomic comfort and function

ERGOSOFT SEAT DESIGN.

The Ergosoft rationale is based on the extensive

research and development spent on bedding

technology. Research shows that all superior

bedding patents have firmer foam to support

peripheral areas of the body. The same ap-

plies to providing support when sitting.

Firmer foam cushions the user where the

weight distribution is heaviest – at the rear of

the cushion. Over the life of the chair, this high

density foam prevents seat pan contact. The

seat design encourages the user to sit with the

legs / feet slightly apart which creates a

greater base of support, encouraging better

posture and circulation. Ergosoft utilizes softer

foam and contours to discourage the user

from sliding forward and to improve blood

flow, thus ensuring optimum comfort. Waterfall

edge greatly minimises circulation obtrusion to

the back of the thighs. The underlying seat

timber is also ergonomically shaped.

SITTING PROPERLY

THE THINGS TO LOOKS OUT FOR:

• Your body should always feel that it is in an

upright but comfortable and relaxed posi-

tion.

• Your bottom should always be at the back

of the seat

• Your neck should feel upright and your

shoulders squared and relaxed

• Your arms should hang straight down by

your side with elbows bending at right an-

gles to rest on your work surface

• Your feet should be flat on the floor (or on

a foot rest) and your knees at right angle

• Your back should have permanent con-

tact with the chair back and the lower

‘lumber’ muscles should feel supported

• Your pelvis should feel like it is tilted slightly

forward with a comfortable one hands

width from the front of the seat to the

back of your knees

1. Height

adjustable

back

2 . Back tilt

adjustment

3 . Seat tilt

adjustment

4 . Seat height

adjustment
