7. Building In

A = Auxiliary burner

R = Rapid Burner

These hobs can be inserted in a built-in kitchen unit

whose depth is between 550 and 600 mm. The hobs

dimensions are shown in Fig. 9.

INSTALLATION AND ASSEMBLY

These hobs can be installed in a kitchen unit with an

opening for insertion whose dimensions are shown in

Fig. 10.

Carry out the building in of the hob as follows:

• put the relevant sealings, supplied with the hob, on

the edges of the cut out, taking care that the sealings

meet without overlapping;

• place the hob in the cut out, taking care of its

centring;

• fix the hob with the relevant screws (Fig. 11). The

traction of the screws is able to trace the sealing, any

excess of which can then be easily removed.

The edge of the hob forms a double labyrinth seal

which provides a total guarantee against infiltration of

liquids.

If several function are to be combined (2 burners hob

+ fish kettle burner + 2 plates hob) follow the

recommendations given in Fig. 10, which indicates the

minimum distance to be observed between the various

openings to be cut on the surface of the unit.

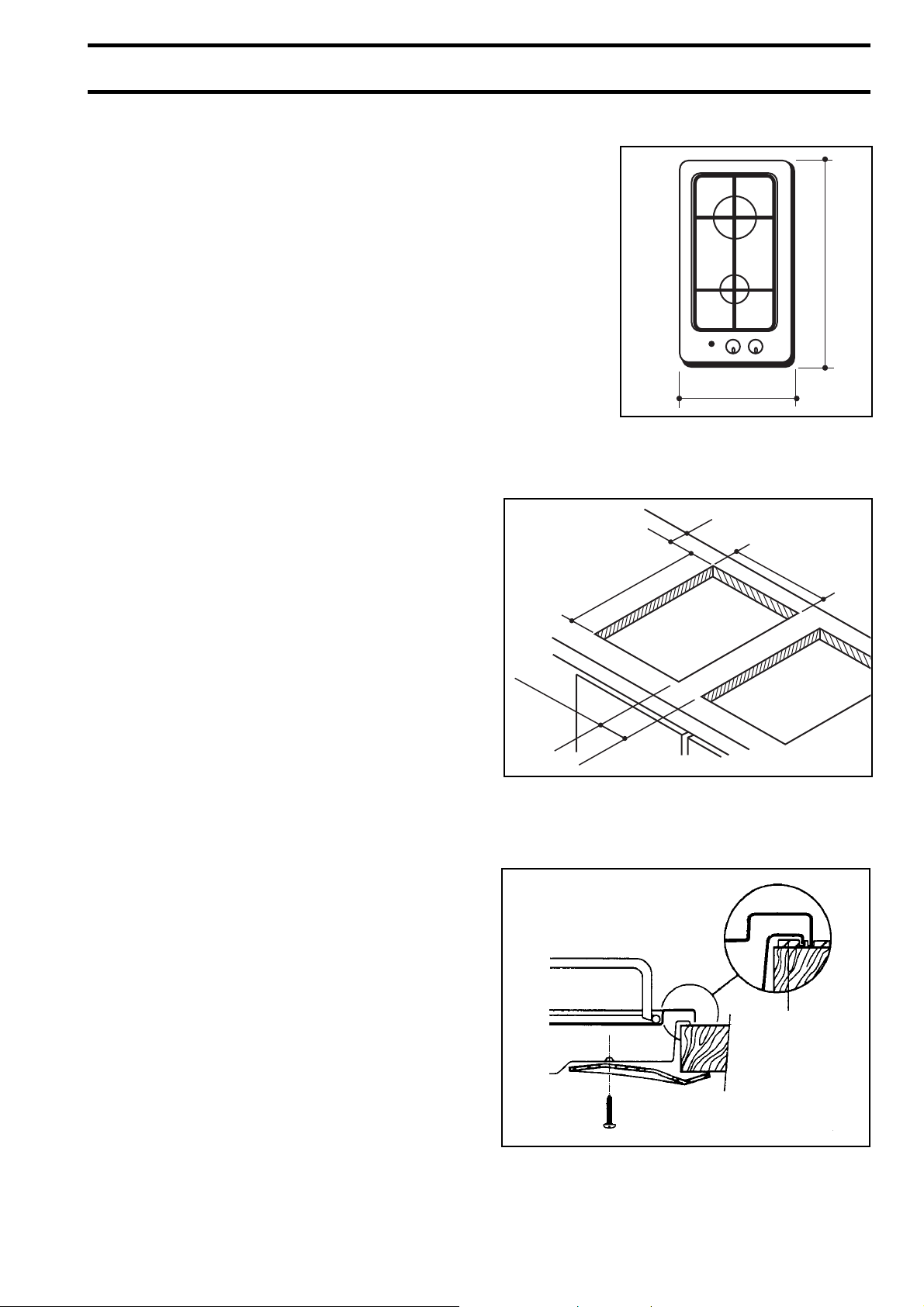

Fig. 11

FO 0199

a) sealing

Fig. 9

FO 0952

Fig. 10

FO 0954

490

270

40÷50

510

290

Paroi arrière
