INJECTORS REPLACEMENT

• Remove the pan supports.

• Remove the burner's caps and crowns.

• With a socket spanner 7 unscrew and remove the

injectors (Fig. 7), and replace them with the ones

required for the type of gas in use (see table 2).

• Reassemble the parts, following the same procedu-

re backwards.

• Replace the rating label (placed near the gas supply

pipe) with the relevant one for the new type of gas

supply. You can find this label in the package of the

injectors supplied with the appliance.

Should the feeding gas pressure be different or

variable compared with the required pressure, an

appropriate pressure adjuster must be fitted on the gas

supply pipe, in compliance with the rules in force.

6. Adaptation to different types of gas

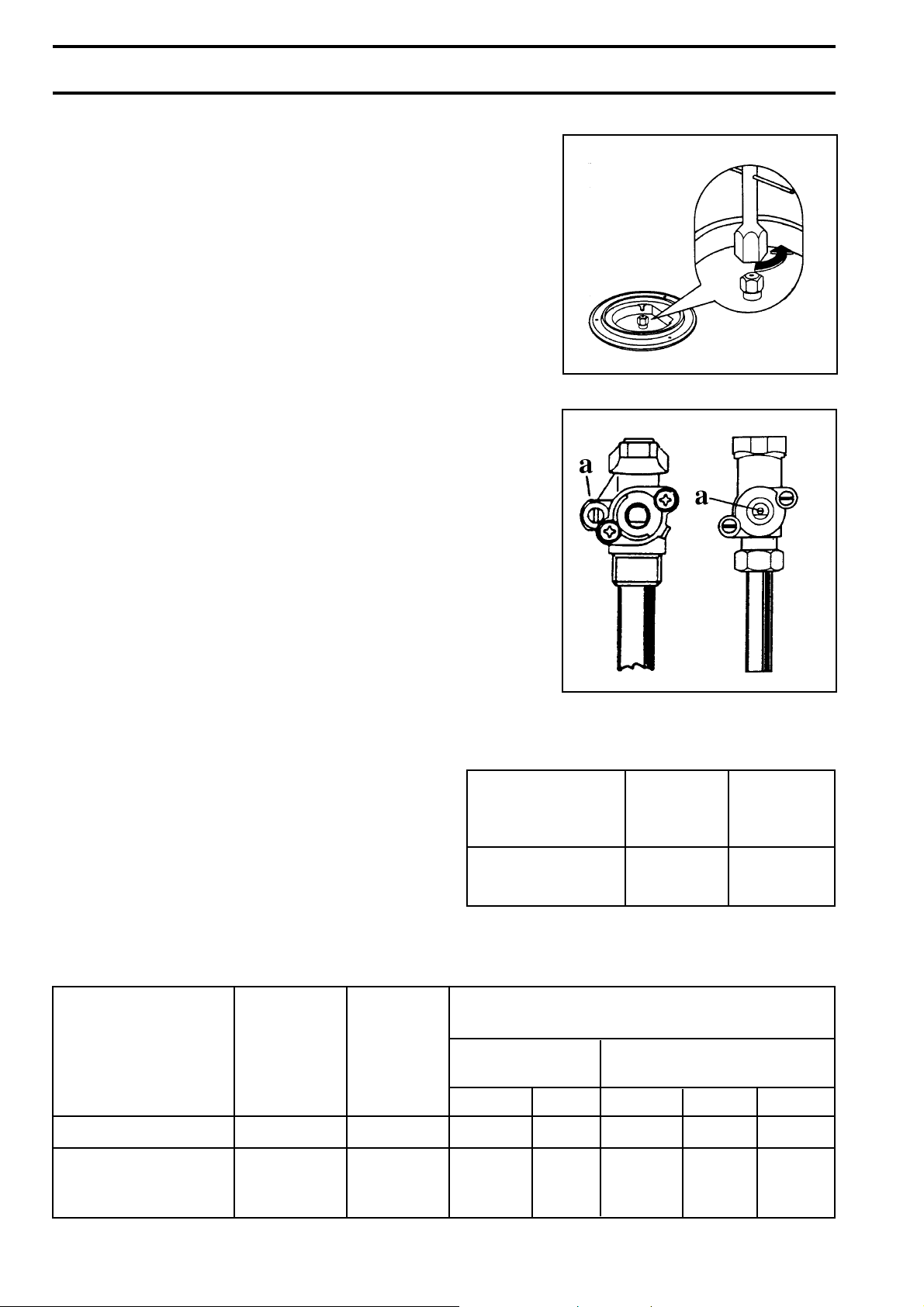

Fig. 7

FO 0392

ADJUSTMENT OF MINIMUM LEVEL

To adjust the minimum level of the burners, proceed as

follows:

• Light the burner.

• Turn the knob on the minimum position.

• Remove the knob.

• With a thin screwdriver, adjust the by-pass screw

(see Fig. 8 - "a"). If changing from natural gas to LPG,

completely tighten clockwise the screw, until a small

regular flame is obtained.

• Finally check the flame does not go out when quickly

turning the knob from the maximum position to the

minimum position.

This procedure can easily be carried out, anyhow the

hob has been positioned or built in the working top.

BURNER NORMAL REDUCED NORMAL

POWER POWER POWER

kW kW NATURAL GAS LPG

G20 - 20 mbar 28-30/37 mbar

inj. 1/100 m

/h inj. 1/100 g/h - G30 g/h - G31

Auxiliary (small) 1 0,33 70* 0,095 50 73 71

Natural gas :

Rapid (big) 3 0,65 119* 0,286 86 203 200

LPG : 2,8

Burner Ø By-pass Tap

in 1/100 colour

of mm.

Auxiliary 28 Green-Brown

Rapid 40 Green-Violet

Table 1 : BY-pass diameters

Table 2 : injectors - (*) suitable for G25 too.

Fig. 8

FO 1045
