Manual

Oven Light

The oven light is a 40 W halogen bulb. Before replacing, make

sure the oven and cooktop are cool and the control knobs are in

the Off position.

To Replace:

1. Disconnect power.

2. Turn the glass bulb cover in the back of the oven

counterclockwise to remove.

3. Remove bulb from socket.

4. Replace bulb, using tissue or wearing cotton gloves to handle

bulb. To avoid damage to or decreasing the life of the new

bulb, do not touch bulb with bare fingers.

5. Replace bulb cover by turning clockwise.

6. Reconnect power.

IMPORTANT: Do not use lamps rated higher than 40 W.

INSTALLATION INSTRUCTIONS

REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Tools Needed

� Tape measure

� Flat-blade screwdriver

� Phillips screwdriver

� 1/8" flat-blade screwdriver

� Level

� Hand or electric drill

� Hammer

� Wrench or pliers

� Pipe wrench

� 15/16" combination wrench

� 1/4" drive ratchet

� 3/8" nut driver

� 1/8" drill bit (for wood floors)

� Marker or pencil

� Pipe-joint compound

resistant to Propane gas

� Noncorrosive leak-detection

solution

� 3/16" carbide-tipped

masonry drill bit

(for concrete/ceramic floors)

(For Slide-in/Front Control

Ranges)

For Propane/Natural Gas

Conversions

� 3/8" combination wrench

� 1/2" combination wrench

� 5/8" combination wrench

� 9/32" nut driver

� Quadrex

✝

or Phillips

screwdriver

� Masking tape

� 3/8" nut driver

(For Slide-in/Front Control

Ranges)

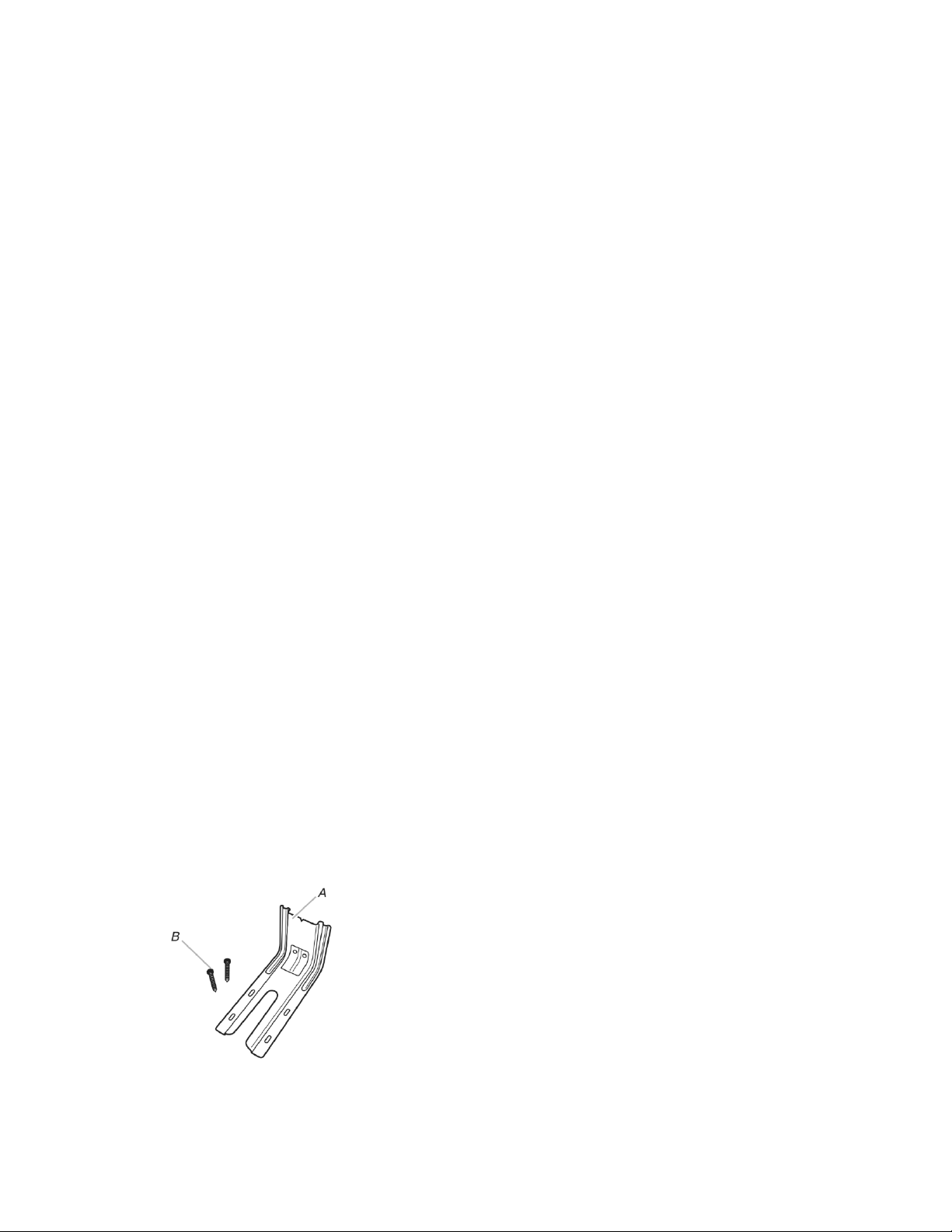

Parts Supplied

Check that all parts are included.

A. Anti-tip bracket

B. #12 x 1

" (4.1 cm) screws (2)

Anti-tip bracket must be securely mounted to floor or wall.

Thickness of flooring may require longer screws to anchor bracket

to floor.

Parts needed

Check local codes and consult gas supplier. Check existing gas

supply and electrical supply. See “Electrical Requirements” and

“Gas Supply Requirements” sections.

NOTE: Be sure to purchase only WHIRLPOOL factory-certified

parts and accessories for your appliance. Your installation may

require additional parts. To order, refer to the contact information

referenced in your Quick Start Guide.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Do

not obstruct flow of combustion and ventilation air.

� It is the installer’s responsibility to comply with installation

clearances specified on the model/serial/rating plate. The

model/serial/rating plate is located behind the oven door on the

top right/left-hand side of the oven frame.

� The range should be located for convenient use in the kitchen.

� Recessed installations must provide complete enclosure of the

sides and rear of the range.

� All openings in the wall or floor where range is to be installed

must be sealed.

� Cabinet opening dimensions that are shown must be used.

Given dimensions are minimum clearances.

� The anti-tip bracket must be installed. To install the anti-tip

bracket shipped with the range, see “Install Anti-Tip Bracket”

section.

� Grounded electrical supply is required. See “Electrical

Requirements” section.

� Proper gas supply connection must be available. See “Gas

Supply Requirements” section.

� Contact a qualified floor covering installer to check that the

floor covering can withstand at least 200°F (93°C).

� Use an insulated pad or 1/4" (6.4 mm) plywood under range if

installing range over carpeting.

IMPORTANT: To avoid damage to your cabinets, check with your

builder or cabinet supplier to make sure that the materials used

will not discolor, delaminate or sustain other damage. This oven

has been designed in accordance with the requirements of UL

and CSA International and complies with the maximum allowable

wood cabinet temperatures of 194°F (90°C).

Mobile Home - Additional Installation

Requirements

The installation of this range must conform to the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280

(formerly the Federal Standard for Mobile Home Construction and

Safety, Title 24, HUD Part 280). When such standard is not

applicable, use the Standard for Manufactured Home Installations,

ANSI A225.1/NFPA 501A or with local codes. In Canada, the

installation of this range must conform with the current standards

CAN/CSA-Z240.1 - latest edition, or with local codes.

Mobile Home Installations Require:

� When this range is installed in a mobile home, it must be

secured according to the instructions in this document.

� Any method of securing the range is adequate as long as it

conforms to the standards listed above.

✝Quadrex

is a registered trademark of NLW Holdings, Inc.
