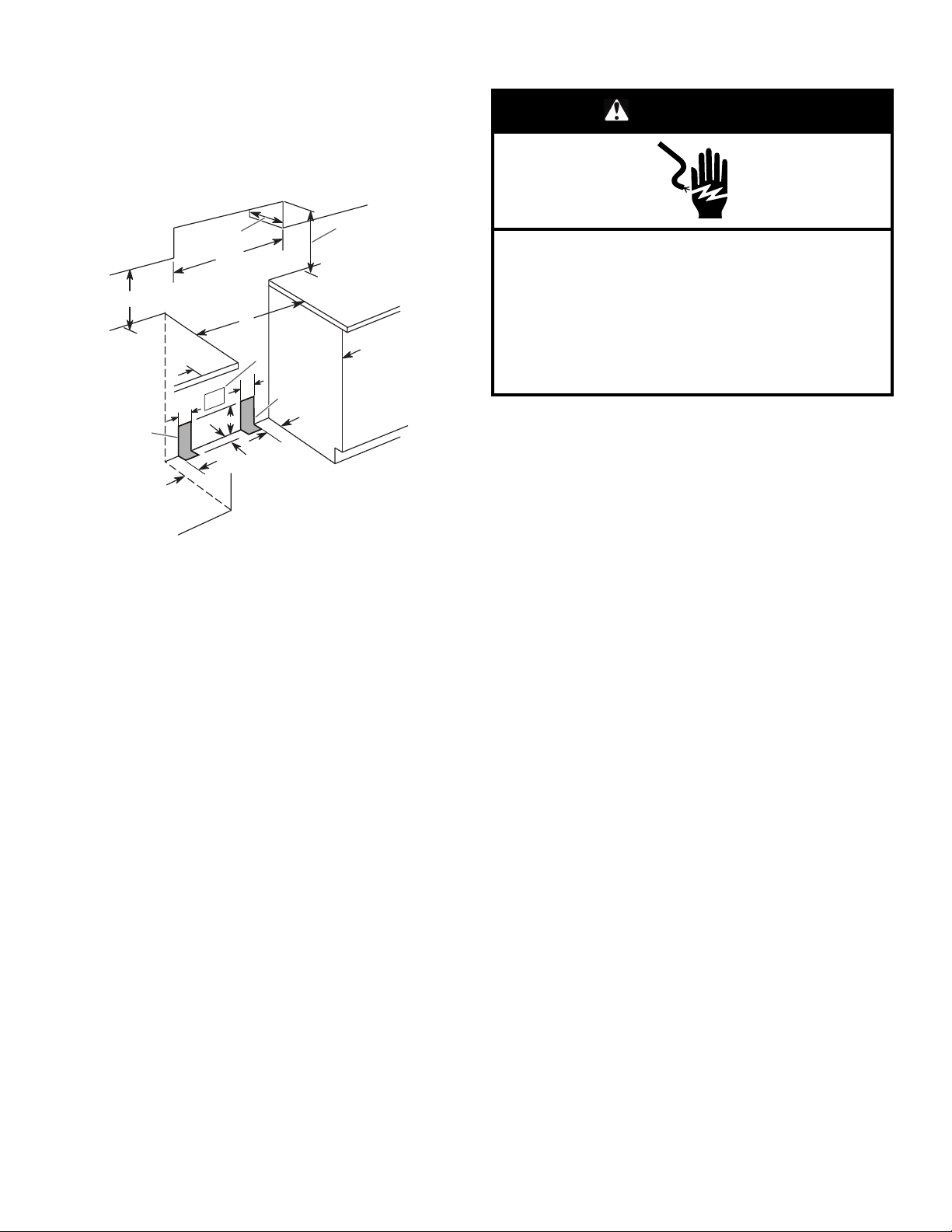

Cabinet Dimensions

Cabinet opening dimensions shown are for 25" (64.0 cm)

countertop depth, 24" (61.0 cm) base cabinet depth and

36" (91.4 cm) countertop height.

IMPORTANT: If installing a range hood or microwave hood

combination above the cooking surface, follow the range hood or

microwave hood combination installation instructions for

dimensional clearances above the cooktop surface.

A. For minimum clearance to top of cooktop, see NOTE*.

B. 13" (33 cm) maximum upper cabinet depth

C. 30" (76.2 cm) minimum opening width

D. 18" (45.7 cm) upper side cabinet to countertop

E. 30" (76.2 cm) minimum opening width

F. The shaded areas are recommended for installation of rigid gas pipe.

G. 4

" (11.4 cm)

H. 8" (20.3 cm)

I. 17" (43.2 cm)

J. 2" (5.1 cm)

K. 4

⁄

" (11.4 cm)

L. 7" (17.78 cm) minimum clearance from both sides of range to side

wall or other combustible material.

M. Grounded outlet

N. Cabinet door or hinges should not extend into the cutout.

*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal

cabinet is shielded by not less than 1/4" (6.35 mm) flame retardant

millboard covered with not less than No. 28 MSG sheet steel,

0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or

0.020" (0.5 mm) copper. 40" (101.6 cm) minimum clearance

between the top of the cooking platform and the bottom of an

uncovered wood or metal cabinet.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

IMPORTANT: The range must be electrically grounded in

accordance with local codes and ordinances, or in the absence of

local codes, with the National Electrical Code, ANSI/NFPA 70 or

Canadian Electrical Code, CSA C22.1.

This range is equipped with an electronic ignition system that will

not operate if plugged into an outlet that is not properly polarized.

If codes permit and a separate ground wire is used, it is

recommended that a qualified electrical installer determine that

the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

� A 120 V, 60 Hz, AC only, 15 A fused, ground and polarized

electrical circuit is required. A time-delay fuse or circuit breaker

is also recommended. It is recommended that a separate

circuit serving only this range be provided.

� Electronic ignition systems operate within wide voltage limits,

but proper grounding and polarity are necessary. Check that

the outlet provides 120 V power and is correctly grounded.

� This gas range is not required to be plugged into a GFCI

(Ground-Fault Circuit Interrupter) outlet. It is recommended

that you do not plug an electric spark ignition gas range or any

other major appliance into a GFCI wall outlet as it may cause

the GFCI to trip during normal cycling.

� Performance of this range will not be affected if operated on a

GFCI-protected circuit. However, occasional nuisance tripping

of the GFCI breaker is possible due to the normal operating

nature of electronic gas ranges.

� The tech sheet and wiring diagram are located on the back of

the range in a plastic bag.

NOTE: The metal chassis of the range must be grounded in order

for the control panel to work. If the metal chassis of the range is

not grounded, no keypads will operate. Check with a qualified

electrician if you are in doubt as to whether the metal chassis of

the range is grounded.

Download manual in English (PDF, 3.02 MB)
