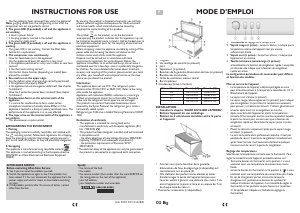

Manual Whirlpool AFG 6352/1 A Freezer

Manual

INSTRUCTIONS FOR USE

• Has the packaging been removed from under the appliance?

Note: gurgling noises from the refrigerating circuit after the

compressor cuts out are perfectly normal.

3. The green LED (if provided) is off and the appliance is

not working.

• Is there a power failure?

• Is the plug properly inserted in the socket?

• Is the electric cable intact?

4. The green LED (if provided) is off and the appliance is

working.

• The green LED is not working. Contact the After Sales

Service for a replacement.

5. The compressor runs continuously.

• Have hot foods been put in the appliance?

• Has the appliance lid been left open for a long time?

• Is the appliance positioned in a very warm room or near heat

sources?

• Is the thermostat setting correct?

• Has the fast freeze function (depending on model) been

pressed by mistake?

6. Too much ice on the upper edge.

• Are the defrost water drainage plugs correctly positioned?

• Is the appliance lid properly closed?

• Is the appliance lid seal damaged or deformed? (See chapter

"Installation")

• Have the 4 protection pieces been removed? (See chapter

"Installation")

7. Condensation forms on the external walls of the

appliance

• It is normal for condensation to form under certain

atmospheric conditions (humidity above 85%) or if the

appliance is located in a damp or poorly ventilated room. The

performance of the appliance is in no way affected.

8. The layer of ice on the internal walls of the appliance is

not uniform.

• This phenomenon is quite normal.

SAFEGUARDING THE ENVIRONMENT

1. Packing

The packaging material is entirely recyclable, and marked with

the recycling symbol. Follow local regulations for scrapping.

Keep the packaging materials (plastic bags, polystyrene parts,

etc.) out of reach of children, as they are potentially dangerous.

2. Scrapping

The appliance is manufactured using recyclable material .

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE).

By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment

and human health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product, or on the documents

accompanying the product, indicates that this appliance may not

be treated as household waste. Instead it shall be handed over to

the applicable collection point for the recycling of electrical and

electronic equipment.

Before scrapping, make the appliance unusable by cutting off the

power cable and removing the doors and shelves so that

children cannot easily climb inside the appliance.

Disposal must be carried out in accordance with local

environmental regulations for waste disposal. Deliver the

appliance immediately to an authorized dump; do not leave it

unattended even for a few days, since it is potentially dangerous

for children. For more detailed information about treatment,

recovery and recycling of this product, please contact your local

city office, your household waste disposal service or the shop

where you purchased the product.

Information:

This appliance does not use CFC. The refrigerant system

contains either R134a (HFC) or R600 (HC). Refer to the rating

plate inside the appliance.

Appliances with Isobutane (R600a): isobutane is a natural gas

without environmental impact, but is flammable. Therefore,

make sure the refrigerant circuit pipes are not damaged.

This product may contain Fluorinated Greenhouse Gases

covered by the Kyoto Protocol; the refrigerant gas is inside a

hermetically sealed system.

Refrigerant gas: R134a has a Global Warming Potential of (GWP)

1300.

Declaration of conformity

• This appliance is intended for storing food and is

manufactured in conformity with European regulation (EC)

No. 1935/2004.

• This product has been designed, manufactured and marketed

in compliance with:

- the safety objectives of Low Voltage Directive 2006/95/EC

(replacing 73/23/EEC and subsequent amendments);

- the protection requirements of Directive "EMC"

2004/108/CE.

• The electrical safety of the appliance can only be guaranteed if

the product is connected to an approved earth connection.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1. See if you can solve the problem yourself.

2. Switch the appliance on again to see if the problem has

been solved. If it has not, disconnect the appliance from the

power supply and wait for about an hour before switching

on again.

3. If the problem persists after this course of action, contact

After-Sales Service.

Specify:

• the nature of the fault,

• the model,

• the service number (the number after the word SERVICE on

the rating plate on the rear of the appliance)

• your full address,

• your telephone number and area code.

MODE D’EMPLOI

F

1. Poignée

2. Verrouillage de sécurité (si présent)

3. Joint

4. Séparateur (si présent)

5.

Bouchon de la goulotte d'évacuation de l'eau (si présent)

6. Bandeau de commande

7. Grille de ventilation moteur latéral

8. Bord supérieur

9. Condenseur (situé à l'arrière)

INSTALLATION

•

Consultez le chapitre "AVANT D'UTILISER L'APPAREIL".

• Retirez l'appareil de son emballage.

• Retirez les 4 entretoises installées entre la porte

et l'appareil.

• Assurez-vous que le bouchon de la goulotte

d'évacuation de l'eau de dégivrage (si disponible) est

correctement mis en place (5).

• Afin d'obtenir des performances élevées et éviter

d'endommager la porte de l'appareil lorsque vous

l'ouvrez, veillez à garantir une distance d'au moins 7 cm

entre l'appareil et la paroi arrière et un espace de 7 cm

de chaque côté de celui-ci.

• Montez les accessoires (si disponibles).

1. Thermostat de réglage de la température.

2. Voyant rouge (si prévu) : lorsqu'il s'allume, il indique que la

température interne de l'appareil n'est pas encore

suffisamment froide.

3. Voyant vert (si prévu) : lorsqu'il est allumé, il indique que

l'appareil est en marche.

4. Touche lumineuse jaune/orange (si prévue) :

active/désactive la fonction de congélation rapide. Lorsqu'elle

est allumée, elle indique que la fonction de congélation

rapide est active.

La configuration du bandeau de commandes peut différer

en fonction des modèles.

Mise en service de l'appareil

•

La température de l'appareil a déjà été préréglée en usine

pour le fonctionnement à la température conseillée de -18 °C.

• Branchement de l'appareil.

• Le voyant vert s'allume (si présent).

•

Le voyant rouge s'allume également (si présent), pour indiquer

que le congélateur n'a pas atteint la température nécessaire

pour pouvoir y introduire les aliments. Il s'éteint généralement

6 heures après avoir mis le congélateur en marche.

• Après avoir branché l'appareil et atteint la température

correcte (il faut compter environ une heure pendant laquelle

la porte ne s'ouvre pas), assurez-vous que la fonction de

congélation rapide est désactivée (le voyant jaune, si prévu,

est éteint).

• Placez les aliments uniquement après que le voyant rouge

est éteint (si présent).

• Le joint de la porte étant parfaitement étanche, il n'est pas

possible de rouvrir la porte du congélateur immédiatement

après l'avoir fermée. Il est nécessaire d'attendre quelques

minutes avant de rouvrir la porte du congélateur.

Réglage des températures

Sélectionnez la température correcte avec le thermostat. Pour

régler la température de l'appareil, procédez comme suit:

• Tournez le bouton du thermostat sur la position 1 si vous

souhaitez avoir une température de conservation moins

froide.

• ournez le bouton du thermostat sur la position 6 / si vous

souhaitez avoir une température de conservation plus froide.

• En cas de chargement partiel, c'est-à-dire lorsque le

chargement est positionné au-dessous du symbole "e"

indiqué à l'intérieur de l'appareil, il est conseillé de régler le

thermostat sur les positions les plus basses (sur la position

"e" lorsqu'elle est indiquée sur l'échelle de réglage du

thermostat).

CO Big

Classe Climatique T° amb. (°C) T° amb. (°F)

SN De 10 à 32 De 50 à 90

N De 16 à 32 De 61 à 90

ST De 16 à 38 De 61 à 100

T De 16 à 43 De 61 à 110

cod. 5019 613 01126/B
