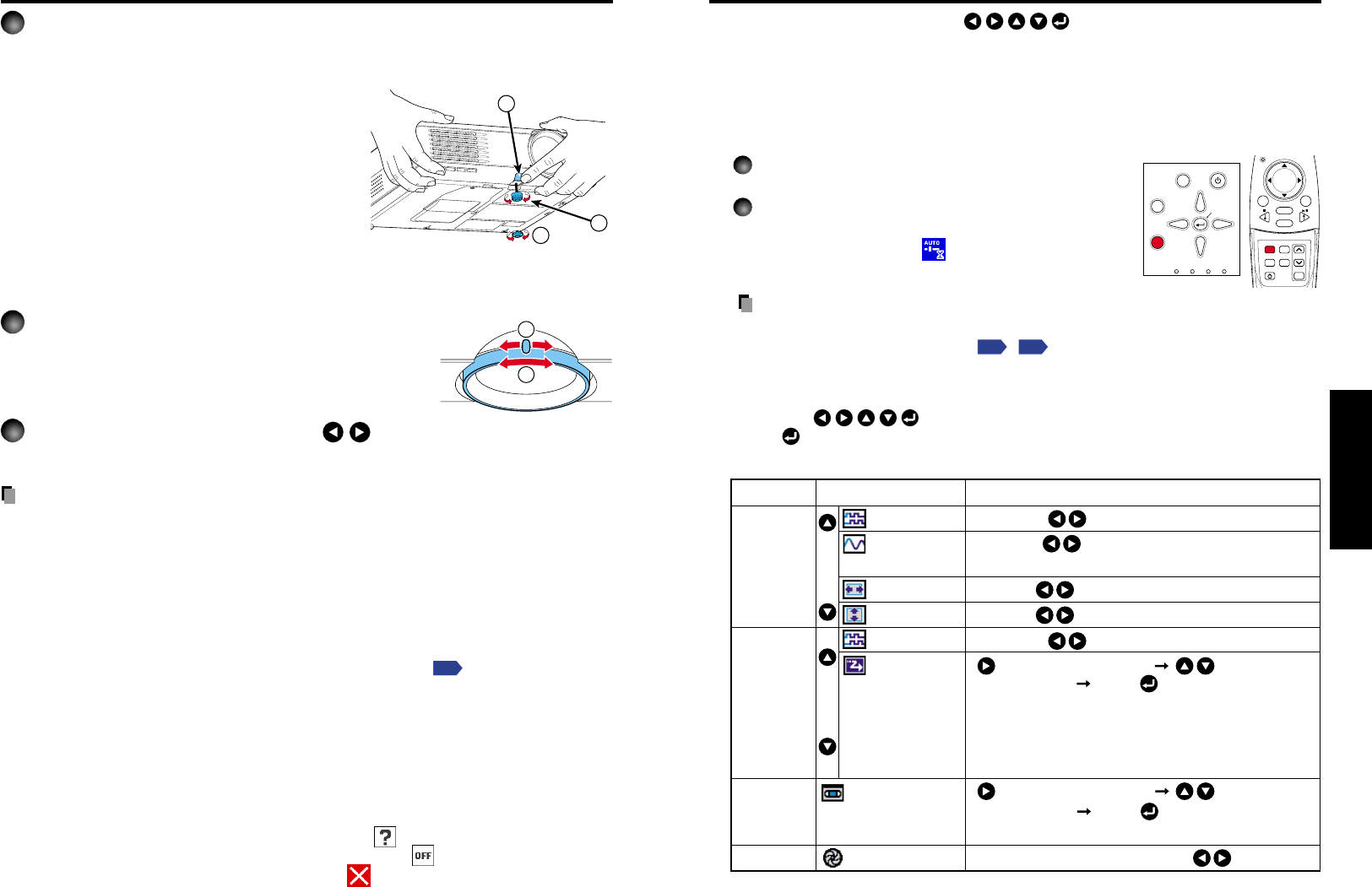

Using handy features

● To operate via the remote control’s buttons, [PJ MODE] must be

selected. Press the PJ Mode button. The button lights up. This light will go out 30

seconds after operations are complete. If necessary, press the button again.

■ Using auto setting (Auto setting)

This function sets up the projector to the optimum state for

each type of the input signal by using simple operations.

1

Press the AUTO SET button.

The Auto setting menu appears.

2

Press the AUTO SET button again.

The menu item is automatically adjusted/set.

For computer input, the

icon will appear during

processing.

Note

• Auto adjustment/setting may not be performed correctly for input signals other than

those supported by the projector

p.68

,

p.69

.

● Manual adjustment and setting

The menu items vary according to the input type, as shown in the table below.

Use the

buttons to adjust the items in the table below, then press

the

button when you are finished. The menu disappears.

Control panel

Remote

Control

Phase Adjust with to eliminate flicker.

Frequency

Adjust with to eliminate periodic patterns and

flickering when many vertical lines appear in the screen.

H-position Move left Move right

V-position Move up Move down

Phase Adjust with to eliminate flicker.

Input Item

Description

Computer (1)

Computer (2)

Select ItemSelect Item

Signal format

[ : Enter to setting mode] [ : Select one

of the following] [Apply: ]

480i(525i)@60Hz/480p(525p)@60Hz/

576i(625i)@50Hz/576p(625p)@50Hz/

720p(750p)@60Hz/720p(750p)@50Hz/

1080i(1125i)@60Hz/1080i(1125i)@50Hz/

1035i(1125i)@60Hz/1152i(1250i)@50Hz

Video mode [ : Enter to setting mode] [ : Select one

of the following] [Apply: ]

NTSC/PAL/SECAM/PAL-N/PAL-M/PAL60/NTSC4.43

Shutter speed Set to local line frequency: 50Hz 60Hz

Y/P

B

/P

R

(1)

Y/P

B

/P

R

(2)

Video

S-video

Camera

1

2

3

1

2

Basic operations (Continued)

5

Projector placement angle adjustments

The placement angle and the height of the projected image can be adjusted by the foot

adjuster.

q Lift up the front of the projector until

it is at the desired angle, then press

the foot adjuster release button.

The foot adjuster extends. Release the

button to lock the position.

w Turn the foot adjuster to fine-tune

the angle.

e To adjust the horizontal angle, use

the tilt adjuster.

To stow the foot adjuster, hold up the projector while pressing the foot adjuster

release button, then slowly lower the projector will the button depressed.

6

Adjusting the picture size and focus

q Use the zooming lever to adjust the screen

size.

w Use the focusing ring to adjust the focus.

7

Adjusting the volume with the buttons

The speaker volume can be adjusted when an audio signal is being input.

Notes

• Note that the lamp characteristics may rarely cause the brightness to fluctuate slightly.

• A lamp is consumable supplies.

If used for extended periods, images will appear dark, and the lamp could burn out. This

is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on

conditions of use.)

• The LCD panel is made using extremely advanced technology, but there may be black

spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel.

Please note that these are not malfunctions.

• Although this projector supports a wide range of RGB signals

p.68

, any resolutions not

supported by the model (XGA or SVGA, depending on the model) will be expanded or

shrunk, which will affect image quality slightly. To view high-quality images, it is

recommended that the computer’s external output should be set to the projector’s

resolution.

• With some models of computer having LCD displays or the like, displaying images

simultaneously on the projector and the monitor’s display may prevent the images from

displaying properly. If this happens, turn off the computer’s LCD display. For information

on how to turn off the LCD display, see the owner’s manual of your computer.

• If a signal not supported by the projector is input, the

icon will appear.

• If a no signal is being input from the connected device, the

icon will appear.

• If an unavailable operation button is pressed, the

icon will appear.
