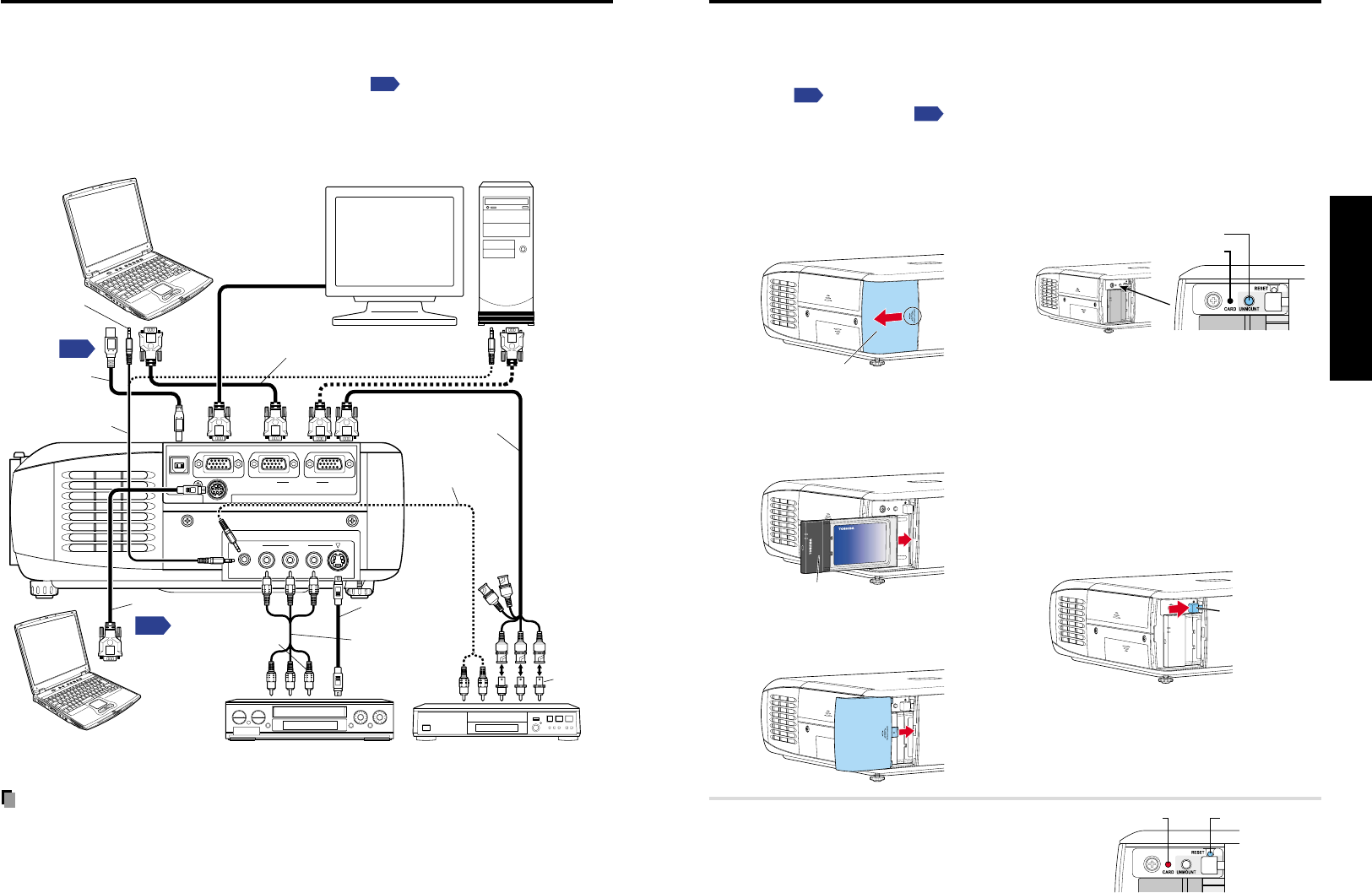

Preparations

Before connection

• Read the owner’s manual of the device to be connected to the projector.

• Some types of computer cannot be used connected to this projector.

Check for an RGB output terminal, supported signal

p.68

, etc.

• Turn off the power of both devices before connection.

• The figure below is a sample connection. This does not mean that all of these devices

can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)

Notes

• COMPUTER terminals 1 and 2 function identically.

• The AUDIO terminal doubles for devices connected to COMPUTER terminals 1 and 2.

Connection

USB

COMPUTER

(

Y/P

)

S-VIDEOVIDEO

VIDEO

R - AUDIO - L

AUDIO

MONITOR

CONTROL

p.70

p.51

Computer Desktop computer

To audio output

To USB terminal

USB cable

Audio cable

(for computer)

(supplied)

To RGB

output

Control cable

To RS-232C terminal

Computer (for control)

RGB cable

(supplied)

To Y/C

B/CR

output

Green (Y)

Blue (CB),

Red (C

Yellow

(to video output)

To audio

output

White (L)

Red (R)

VCR

S-Video cable

(not supplied)

AV cable

(supplied)

To S-Video

output

To audio

output

White (L)

Red (R)

To audio

output

To RGB

output

Monitor cable

Mini D-sub 15P-BNC

(not supplied)

Audio cable

(not supplied)

DVD player

Conversion

adapter

BNC-pin

(not supplied)

How to use the PC card slot

Please read this chapter if the model you purchased includes a PC card slot.

The attached wireless LAN PC card enables you to connect the projector wirelessly with a

personal computer that supports IEEE802.11b based wireless LAN. Please note that

communication between all the computers based on IEEE802.11b and this projector is not

guaranteed.

p.33

You can also use a commercially available memory card to project JPEG

image files using this projector.

p.40

Please follow the steps below when removing or

mounting a PC card.

■ Mounting a PC card

q Remove the PC card slot cover.

Press lightly on the circle (“O”) while

sliding the cover in the direction of the

arrow.

Card slot cover

w Insert the PC card.

After making sure of the card

orientation, press it in firmly until it

stops.

PC Card

e Replace the PC card slot cover.

Replace the PC card slot cover to keep

dust from entering.

■ Removing a PC card

q Look at CARD indicator.

If it is off, proceed to step r.

UNMOUNT button

CARD indicator

w Press the UNMOUNT button.

Begins processing for PC card removal

e Wait until CARD indicator goes

out.

Never remove the PC card while lit.

Doing so could damage the PC card or

corrupt your data.

r Press the Eject button.

The Eject button is a bit stiff, so press

firmly while supporting the projector.

Be careful to avoid injury when doing

so.

Eject button

■ If CARD indicator turns red

Press the RESET switch with a thin pin or

similar implement (it is at the bottom of a

recess).

RESET switch

CARD indicator

Download manual in English (PDF, 3.34 MB)
