RQT8654

Simple Setup

≥ Do not connect through the video cassette recorder.

Due to copy guard protection, the picture may not be displayed properly.

≥ Turn the television off before connecting, and refer to the television’s operating instructions.

≥ This audio connection will enable you to play audio from your

television through your home theater system. Refer to “Operating other

equipment” (➜ page 31).

≥ Refer also to “Other video connections for improved picture quality”

(➜ below).

COMPONENT VIDEO OUT

≥ Using the COMPONENT VIDEO OUT terminals

The COMPONENT VIDEO OUT terminals provides a purer picture than

the S-VIDEO OUT terminal. These terminals can be used for either

interlaced or progressive output. Connection using these terminals

outputs the color difference signals (P

B/PR) and luminance signal (Y)

separately in order to achieve high fidelity in reproducing colors.

≥ The description of the component video input terminals depends on

the television or monitor (e.g. Y/P

B/PR, Y/B-Y/R-Y, Y/CB/CR). Connect

to terminals of the same color.

[Continental]Europe]

≥ When making this connection, select “Video/YPbPr” or “S-Video/

YPbPr” from QUICK SETUP (➜ page 10). If “RGB/No Output” is

selected, the RGB signal is output from the SCART (AV) terminal, but

no signal is output from the component video output terminals.

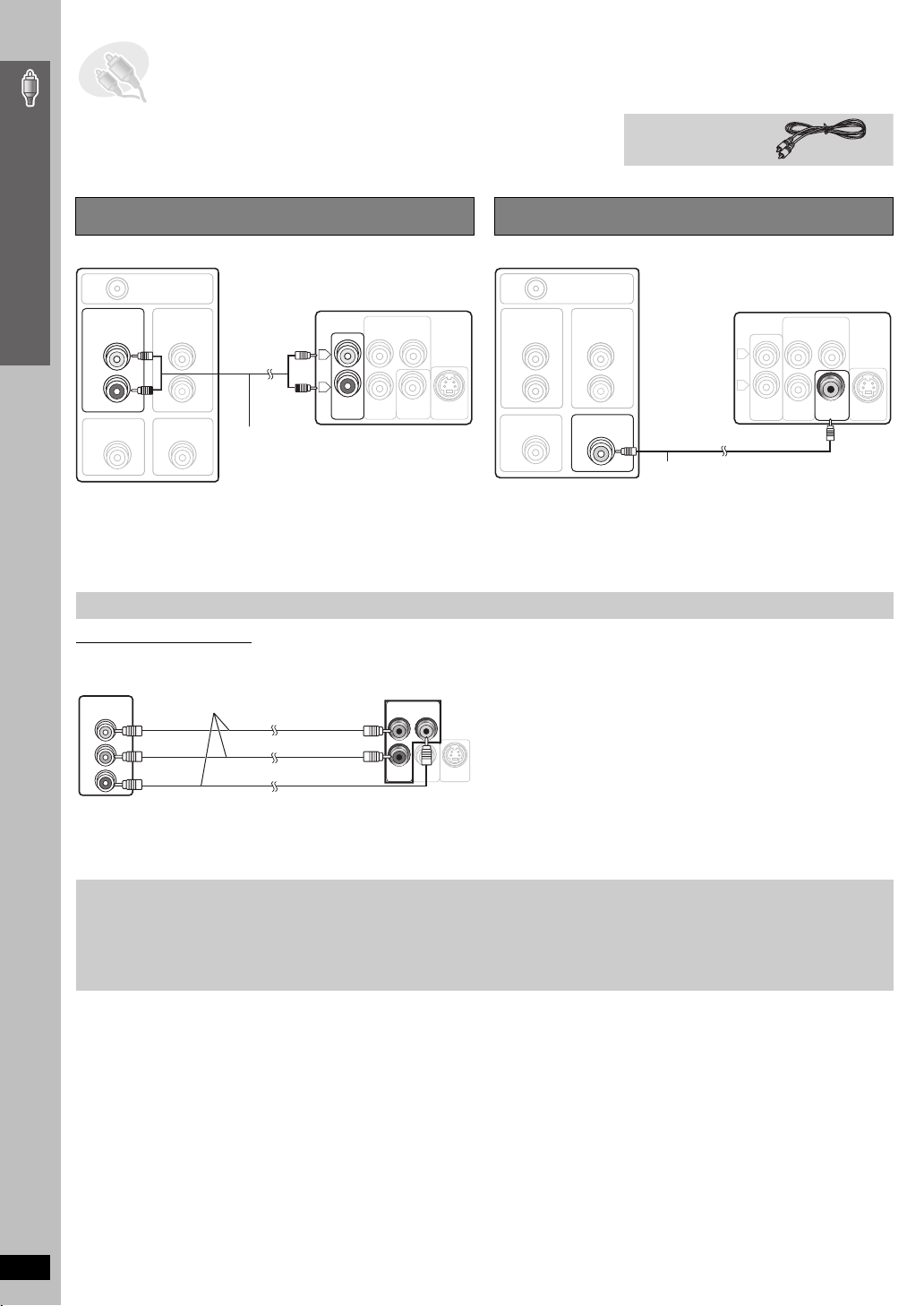

STEP4 Audio and video connections

Video cable

Basic audio connection

VIDEO

OUT

RF IN

AUDIO

OUT

VIDEO IN

AUDIO

VIDEO OUT

AUX

S-VIDEO

OUT

COMPONENT VIDEO OUT

Back of the main unit

Audio cable

(not included)

Television (not included)

Basic video connection

RF IN

AUDIO

OUT

VIDEO IN

AUDIO

VIDEO OUT

AUX

VIDEO

OUT

S-VIDEO

OUT

COMPONENT VIDEO OUT

AUX

Back of the main unit

Video cable (included)

Television (not included)

Other video connections for improved picture quality

VIDEO

OUT

S-VIDEO

OUT

COMPONENT VIDEO OUT

COMPONENT

VIDEO IN

Television

(not included)

Back of the

main unit

Video cables

(not included)

To enjoy progressive video

≥ Connect to a progressive output compatible television.

≥ Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen (➜ page 21, Picture Menu).

[Continental]Europe]

≥ Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible. Consult the manufacturer if you

have another brand of television.

Audio and video connections

HT545 545W En.book Page 8 Friday, March 31, 2006 3:00 PM
