Simple Setup

[HT545]

Set your surround sound free!

Optional Panasonic wireless accessory (e.g. SH-FX60)

You can enjoy surround speaker sound wirelessly when you use the optional Panasonic wireless accessory (e.g. SH-FX60).

For details, please refer to the operating instructions for the optional Panasonic wireless accessory.

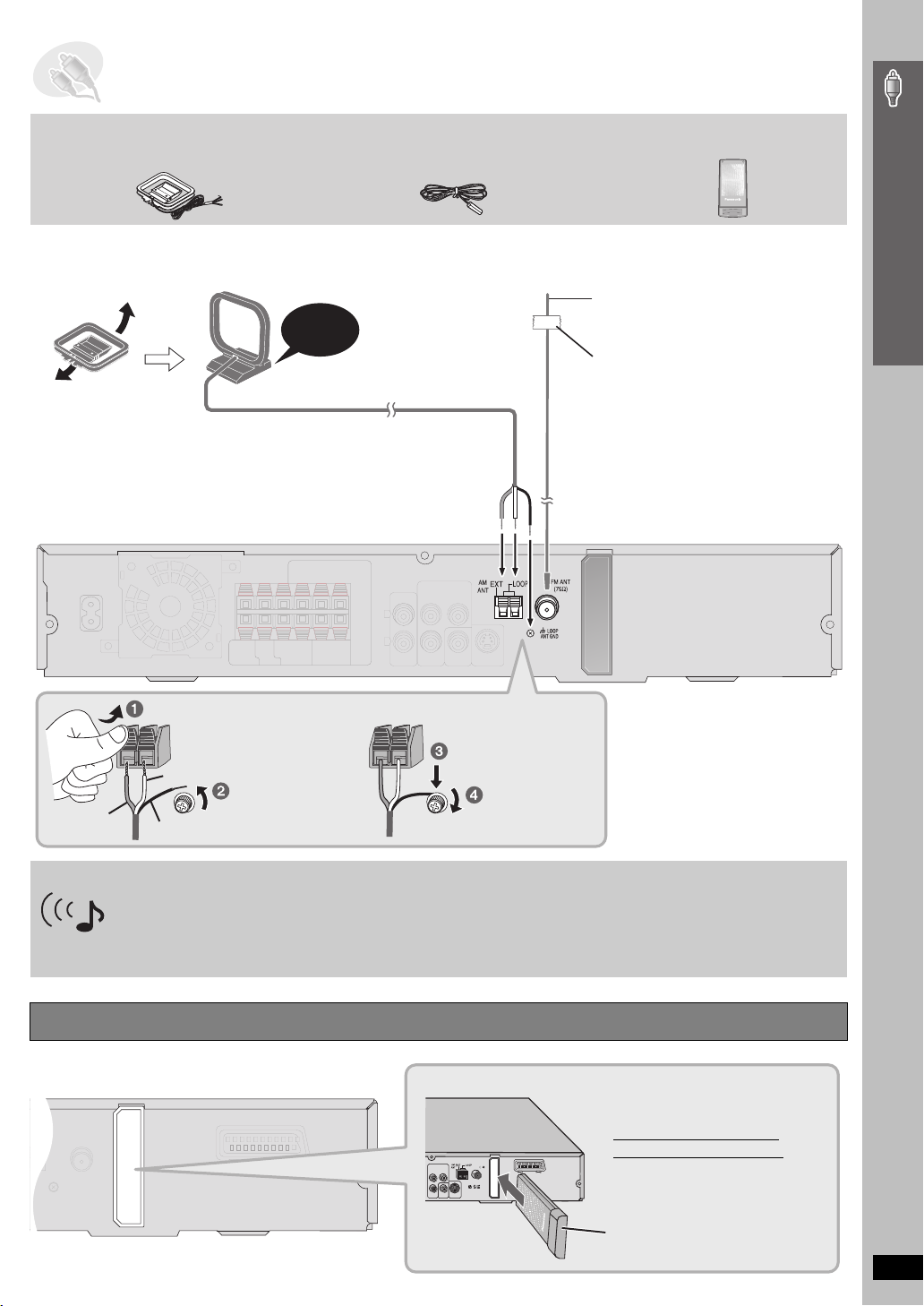

STEP3 Radio and digital transceiver connections

[For SC-HT545, an optional wireless accessory is required to make the digital transceiver connection (➜ below).]

Digital Transceiver

Adhesive tape

Main unit

AM loop antenna

Stand the antenna up on its base.

Place the antenna where reception is best.

Keep loose antenna cable away from other

wires and cables.

Click!

AM loop antenna FM indoor antenna

FM indoor antenna

Affix this end of the antenna where

reception is best.

≥ Using an outdoor antenna (optional) (➜ page 27).

The illustration shows SC-HT545.

Re-tighten the

terminal screw.

Loosen the terminal

screw with a Phillips-

head screwdriver.

White

Red

Black

While pushing, insert the wire fully.

[HT545W]

Digital transceiver

[HT545W] Connecting the digital transceiver

Digital Transceiver

FM ANT

COMPONENT VIDEO OUT

VIDEO

S-VIDEO

OUT

Insert the digital transceiver

into the slot.

Do not insert or remove

while the main unit is on.

Digital transceiver

Insert fully until you hear a click.

ill

ustrat

on s

ows

545

Main unit

Radio and digital transceiver connections
