RQT8654

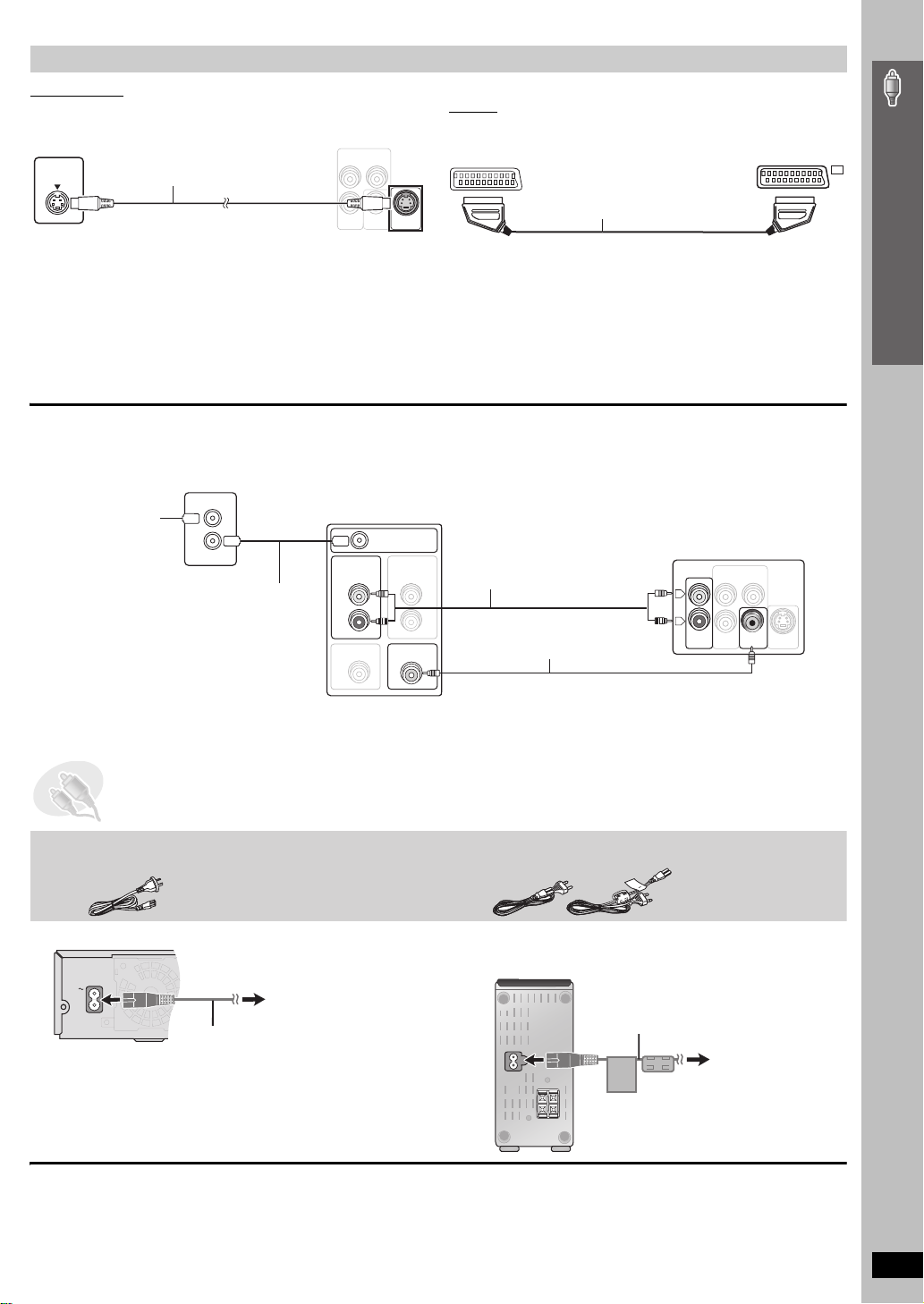

Simple Setup

S-VIDEO OUT

≥ Using the S-VIDEO OUT terminal

The S-VIDEO OUT terminal achieves a more vivid picture than the

VIDEO OUT terminal by separating the chrominance (C) and luminance

(Y) signals. (Actual results depend on the television.)

[Continental]Europe]

SCART

≥ Using the SCART (AV) terminal

To improve picture quality, you can change the video signal output from

the SCART (AV) terminal from “Video” to either “S-Video” or “RGB” to

suit the type of television you are using. Select “S-Video/YPbPr” or

“RGB/No Output” from QUICK SETUP (➜ page 10).

This connection will also enable you to play audio from your television

through your home theater system. Refer to “Operating other

equipment” (➜ page 31).

∫ Cable TV box or video cassette recorder connection

Conserving power

The main unit and the wireless system consume a small amount of

power when they are in standby mode (main unit: approx. 0.5 W,

wireless system: approx. 1.2 W). To save power when they are not to be

used for a long time, unplug them from the household mains socket.

You will need to reset some memory items after plugging in the main unit.

[Note]

The included AC mains leads are for use with the main unit and wireless

system only. Do not use them with other equipment. Also, do not use

cords for other equipment with the main unit or wireless system.

Other video connections for improved picture quality

VIDEO

OUT

S-VIDEO

OUT

COMPONENT VIDEO OUT

S-VIDEO

Television

(not included)

S-video cable

(not included)

Back of the

main unit

Television

(not included)

Scart cable

(not included)

Back of the

main unit

AUX

VIDEO

OUT

S-VIDEO

OUT

COMPONENT VIDEO OUT

RF IN

RF OUT

RF IN

AUDIO

OUT

VIDEO IN

AUDIO

VIDEO OUT

Television

(not included)

Video cable

(included)

Back of the main unit

RF cable

(not included)

To your cable TV

service or television

antenna

Cable TV box or video cassette recorder

(not included)

Audio cable

(not included)

≥

You can use the scart cable connection

(

➜

above) instead of this connection.

STEP5 AC mains lead connections

AC IN

AC IN~

AC mains lead

Main unit

[HT545W]

Wireless system

To household mains socket

[HT545W]

2 AC mains leads

[HT545]

1 AC mains lead

To household

mains socket

Audio and video connections/AC mains lead connections
