Manual Lifestyler Cardio Fit Plus Exercise Bike

Need a manual for your Lifestyler Cardio Fit Plus Exercise Bike? Below you can view and download the PDF manual for free in English. This product currently has 4 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

':cliff

115- _.o

-,*,Front View

Apply

32 Teeth

Tube

Pedal

Tool

_een included. Save the Push Nuts

sh Nuts are needed in the future.

cision resistance cylinder; due to

Jmmended that the floor under-

.....

case of slight oil leakage.

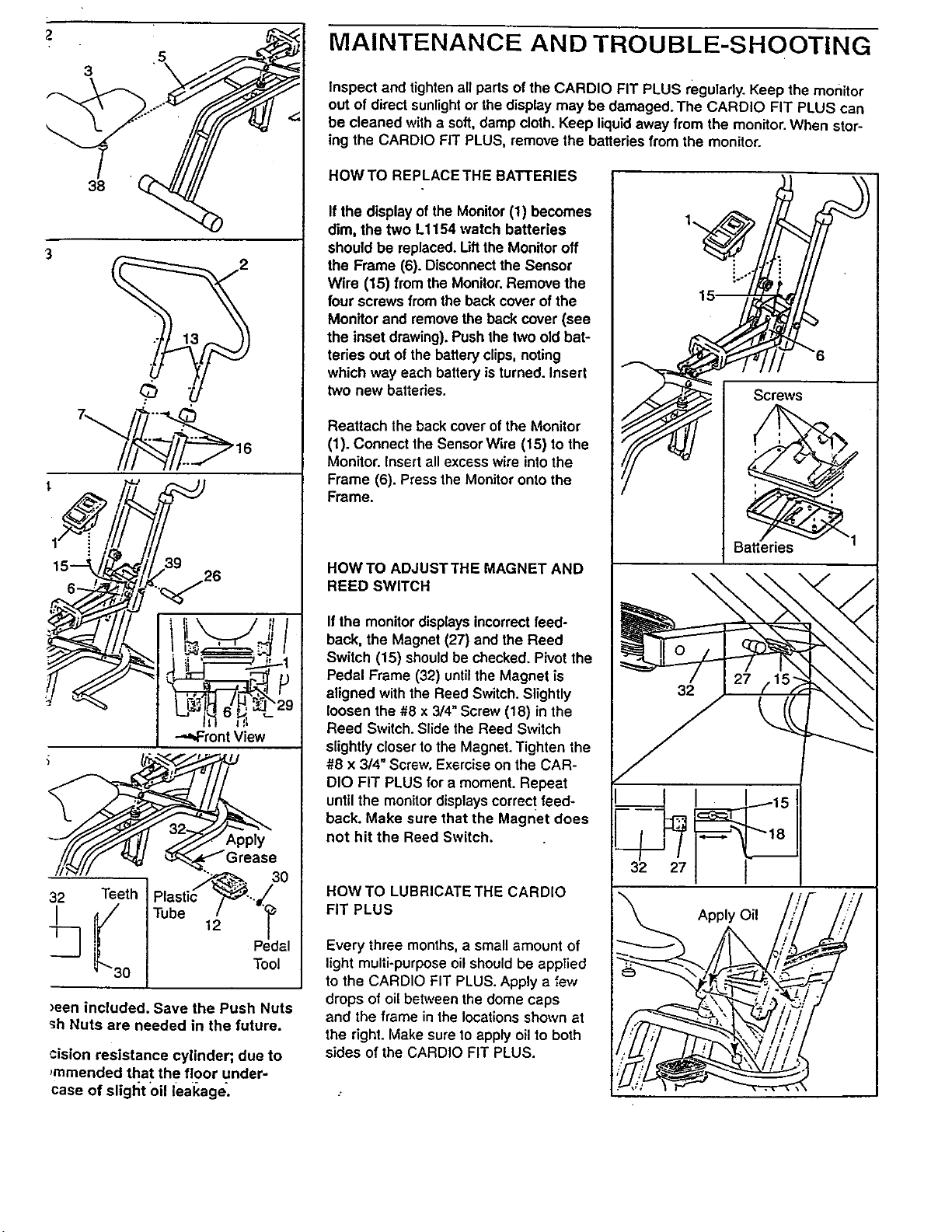

MAINTENANCE AND TROUBLE-SHOOTING

Inspect and tighten all parts of the CARDIO FIT PLUS regularly. Keep the monitor

out of direct sunlight or the display may be damaged. The CARDIO FIT PLUS can

be cleaned with a soft, damp cloth. Keep liquid away from the monitor. When stor-

ing the CARDIO FIT PLUS, remove the batteries from the monitor.

HOWTO REPLACETHE BATTERIES

If the display of the Monitor (1) becomes

dim, the two Ll154 watch batteries

should be replaced. Uft the Monitor off

the Frame (6). Disconnect the Sensor

Wire (15) from the Monitor. Remove the

four screws from the back cover of the

Monitor and remove the back cover (see

the inset drawing). Push the two old bat-

teries out of the battery clips, noting

which way each battery is turned. Insert

two new batteries.

Reattach the back cover of the Monitor

(1). Connect the Sensor Wire (15) to the

Monitor. Insert all excess wire into the

Frame (6). Press the Monitor onto the

Frame.

HOWTO ADJUSTTHE MAGNET AND

REED SWITCH

I1the monitor displays incorrectfeed-

back, the Magnet (27) and the Reed

Switch (15) should be checked. Pivot the

Pedal Frame (32) untilthe Magnet is

aligned with the Reed Switch. Slightly

loosen the #8 x 3/4" Screw (18) in the

Reed Switch. Slide the Reed Switch

slightly closer to the Magnet. Tighten the

#8 x 3/4" Screw. Exercise on the CAR-

DIO FIT PLUS for a moment. Repeat

until the monitor displays correct teed-

back. Make sure that the Magnet does

not hit the Reed Switch.

HOWTO LUBRICATETHE CARDIO

FIT PLUS

Every three months, a small amount of

light multi-purpose oil should be applied

to the CARDIO FIT PLUS. Apply a few

drops of oil between the dome caps

and the frame in the locations shown at

the right. Make sure to apply oil to both

sides of the CARDIO FIT PLUS.

Battenes 1

.-----15

"_h ApplyOil t" _

1114 -77"-. W iiiI
