EN -1-

Chart

PROGRAM SELECTION

BUTTON

Push “Programs” button

(repeatedly) until the indicator

of the required program lights

up (see “Table of programs”

below).

CANCEL/OFF BUTTON

Push this button to switch off the control panel.

If pressed when a program is running it cancels the

program ongoing draining water for 1 minute.

If pressed when the dishwasher is switched off it

drains any possible liquids from dishwasher

(1 minute process).

If the indicator flashes repeatedly, see page 6 -

chapter “What to do if...”.

START/RESUME BUTTON

Push this button to start the selected program: the

indicator lights up and goes off at the end of the

program. When the door is opened during a

washing cycle, the cycle is temporarily paused: the

Start indicator blinks.

To resume the cycle push the Start button and

close the door within 3 seconds.

(see at right for options

description)

1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without any options) and may vary

depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration

system.

2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the

EN/Standard loading comparison test and other tests, contact using following address: “[email protected]”.

*Power consumption in: Left-on mode: 0.70 W / Off mode: 0.40 W

Table of programs

Deter-

gent

Consumption

Drying

Phase

P

Programs

Available

options

Loading instructions

Litres kWh

Minutes

1)

1

Sensor 40°-70°C

Delay

Antibacterial

rinse

Recommended program for routine

washes, with dried-on food.

X 7-15 1.00-1.70 70-172 Full

2

Prewash cold

Delay Crockery to be washed later. — 4.0 0.01 14-16 NO

3

Express 45°C

Delay

Lightly soiled crockery, with no

dried-on food.

X 11.0 0.85 30-50 NO

4

Eco

2)

50°C

Delay

Antibacterial

rinse

Normally soiled crockery.

Standard program, the most efficient

in terms of its combined energy and

water consumption.

X 11.0 0.92 240 Full

5

Intensive 65°C

Delay

Antibacterial

rinse

Recommended program for heavily

soiled crockery, especially suitable

for pans and saucepans.

X 15.0 1.60 165-175 Full

5019 400 00394

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS

QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!

Options and display description

SALT INDICATOR

When lit (at the end of the

cycle), the salt reservoir

needs to be refilled.

RINSE AID INDICATOR

When lit (at the end of the

cycle), the rinse aid

dispenser needs to be

refilled.

THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY

BUTTON EXCEPT CANCEL/OFF BUTTON.

FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES

AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.

DELAYED START

BUTTON

The wash cycle can be

programmed to start after

2, 4 or 8 hours. Then press

the Start button. The wash

program will start after the

set time.

TABLET SETTING

This setting allows to optimize

the cycle performances

according the type of

detergent used. Push the

Tablet button for 3 seconds

(until the indicator lights up) if

you are using the combined

detergents in tablet (rinse aid,

salt and detergent in 1 dose).

If you are using powder

detergent or liquid detergent,

the Tablet indicator on the

control panel has to be off.

ANTIBACTERIAL RINSE

This function activates an

antibacterial rinse at the end

of the wash cycle,

guaranteeing a further

reduction of bacteria. Press

the utton to activate or

deactivate the function. This

function can be used with

the programs indicated in

the table of programs. The

dishwasher door must be

kept shut for the entire

duration of the program in

order to guarantee

reduction of bacteria.

If the door is opened the

indicator lamp starts

flashing.

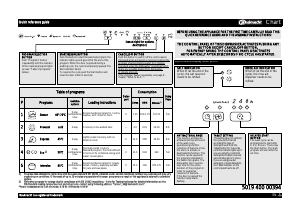

Quick reference guide
