ENGLISH
3
CHARACTERISTICS
Supercurrent series: LR 180 M, LR 1140 M, LR 180 XR, LR 1140 XR
. One-channel amplifiers
of compact dimensions and excellent musical features. The
LR 180 M and LR 1140 M have a wide
band, therefore they are suitable for DUAL MONO installations or as mono SUBWOOFER
drivers where an external electronic CROSSOVER is provided. The LR 180 XR and LR 1140 XR
have an electronic CROSSOVER inside and are therefore specialize in driving the SUBWOOFERS.
The
outstanding features of the sophisticated circuitry are: “FRONT END” stages realized with
two complementary differential stages, polarized by two low Noise constant current sources. The
final stage configuration is made of an inverted triplet at pure complementary symmetry. The
power amplifier is realized by a transistor parallel with current capacity of 15 Amperes each. The
PWM MOSFET power supply has been particularly designed to supply high current at the
amplification stages. These features allow to drive very low loads; in fact this amplifier series has
been called
Supercurrent
for the easiness in driving loads with nominal impedance of 1 Ohm.
Of course, as they are amplifiers with very compact dimensions in relation to their performances,
it is opportune to choose a well-ventilated place for the installation when they work at very low
loads ore, if needed, a cooling fan can be placed near the device, in order to avoid excessive
overheating.
PRECAUTIONS
·In order for this device to function properly it's important that it be installed in a spot where the
temperature doesn't fall below 0°C (32°F) or rise above 55°C (131°F).
· It must be installed in a dry and well ventilated spot.
· The power supply voltage is 12 Vcc negative to ground. Make sure that the caracteristics of the
vehicle's electrical system are compatible.
· For safe driving it's advised to listen to music at volume level that won't drown out external traffic
sounds.
INTALLATION
For mounting use 4 self-threading screws and protective plastic rings provided. For a very good result
we suggest to use audison cable products to complete your installation. These include: power cables,
signal cables, speaker wires RCA connectors and all accessories needed to complete the wiring.
WARNING
· INPUT: If the radio-cassette player's output GND isn't connected to car body, the braided shield of
shielded cable must be connected to the radio-cassette player's chassis.
· OUTPUTS: Never connect the -R and -L outputs to ground or to each other. If a crossover filter is
used be assured that the two channels don't have a common ground.
· REGULATION: If you should hear distortion phenomena at moderate volume levels, it means that
a distorted signal is coming from the radio-cassette player. Turn radio-cassette player volume down
until there's no longer any distortion.
Then adjust the calibration levels of the amplifier until you hear slight distortion phenomena.
38
LR 1140 XR
LR 270
LR 1140 XR
HI-PASS
FRONT-LEFT
L R
HI-PASS REAR
SUBWOOFERS
LEFT
L
LR 270
LR 1140 XR

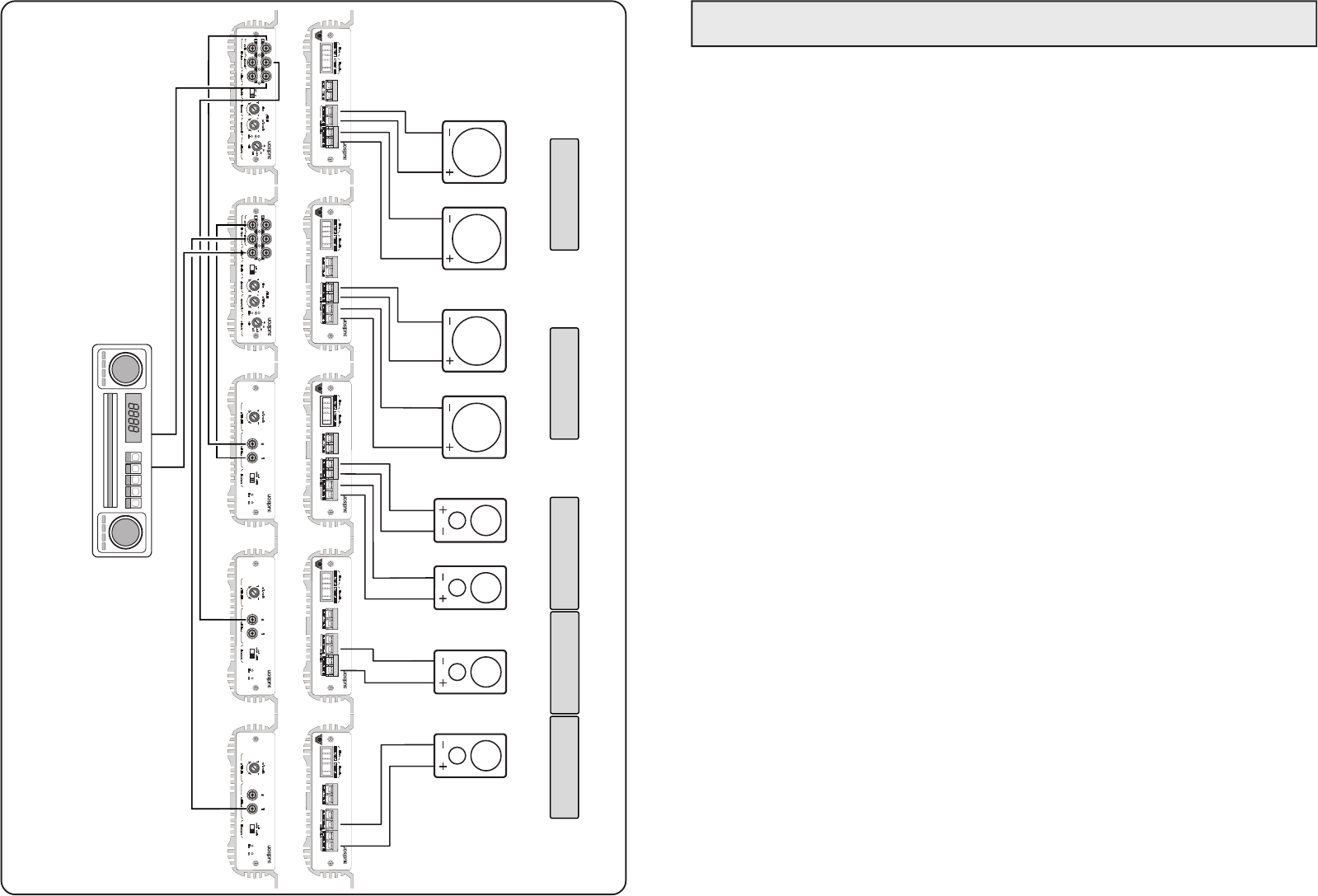

MORE THAN 1000 WATTS SYSTEM
LR 270
LR 270
LR 1140 XR
R
LR 270
HI-PASS
FRONT-RIGHT
SUBWOOFERS
RIGHT
BRIDGE
270 W - 4 Ohm
BRIDGE
270 W - 4 Ohm
STEREO
75+75 W - 4 Ohm
MONO
250 W - 2 Ohm
MONO
250 W - 2 Ohm
LR 270
LR 1140 XR
