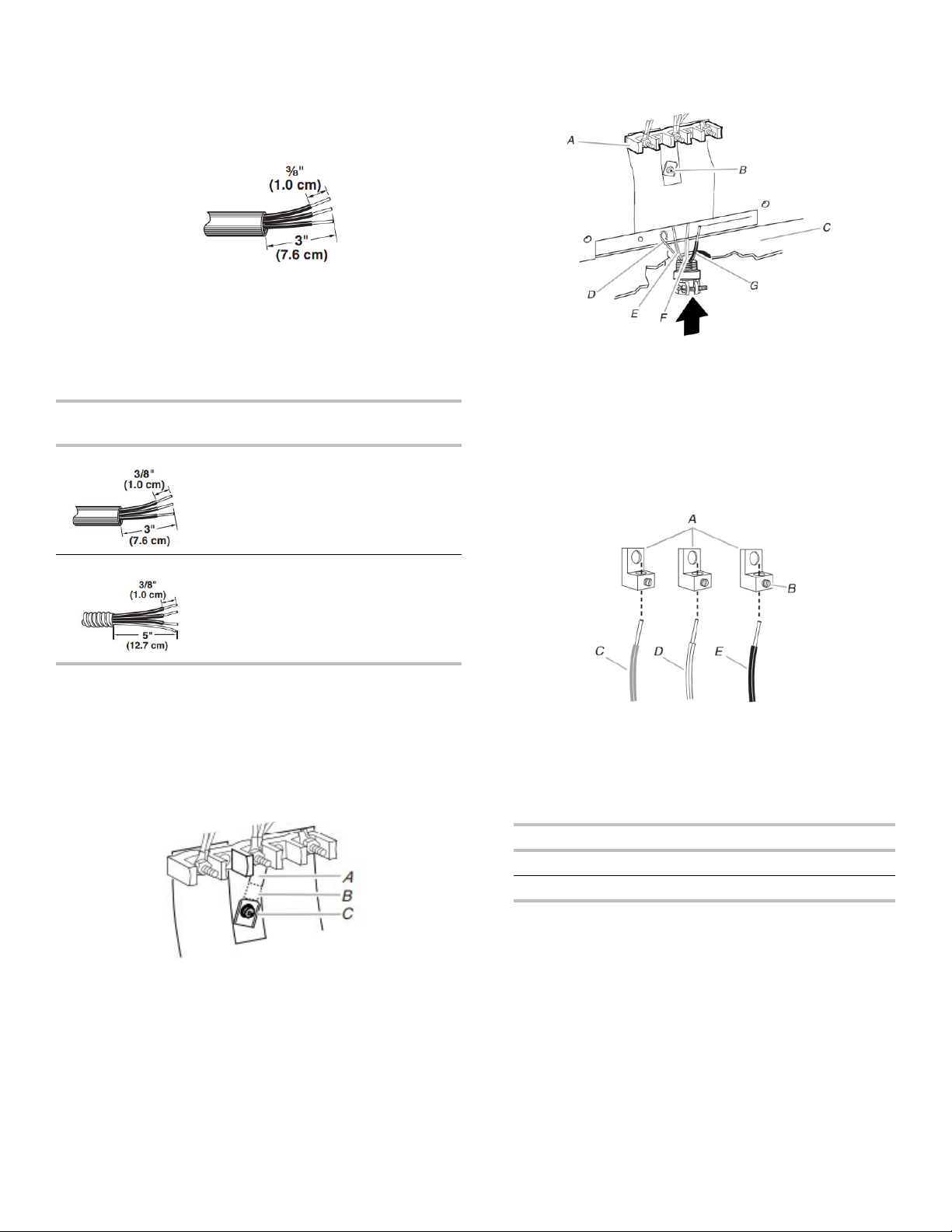

Direct Wire Installation: Copper or Aluminum Wire

This range may be connected directly to the fuse disconnect or

circuit breaker box. Depending on your electrical supply, make the

required 3-wire or 4-wire connection.

1. Strip outer covering back 3" (7.6 cm) to expose wires. Strip

the insulation back 3/8" (1.0 cm) from the end of each wire.

2. Allow enough slack in the wire to easily attach the wiring

terminal block.

3. Complete electrical connection according to your type of

electrical supply.

4-wire (recommended)

3-wire (if 4-wire is not available)

Electrical Connection Options

If your home has:

And you will be

connecting to:

Go to Section:

3-wire direct

A circuit breaker

box or fused

disconnect

3-Wire Connection:

Direct Wire

4-wire direct

A circuit breaker

box or fused

disconnect

4-Wire Connection:

Direct Wire

4-Wire Connection: Direct Wire

Use this method for:

� New branch-circuit installations (1996 NEC)

� Mobile homes

� Recreational vehicles

� In an area where local codes prohibit grounding through the

neutral

1. Part of metal ground strap must be cut out and removed.

A. Metal ground strap

B. Discard

C. Ground-link screw

2. Use a Phillips screwdriver to remove the ground-link screw

from the back of the range. Save the ground-link screw and

the end of the ground link under the screw.

3. Pull the wires through the strain relief on bottom of range.

Allow enough slack to easily attach wiring to the terminal

block.

A. Terminal block

B. Ground-link screw

C. Cord/conduit plate

D. Bare (green)

ground wire

E. Line 2 (red) wire

F. Neutral (white) wire

G. Line 1 (black) wire

4. Attach terminal lugs to line 1 (black), neutral (white), and line 2

(red) wires. Loosen (do not remove) the setscrew on the front

of the terminal lug and insert exposed wire end through

bottom of terminal lugs. Securely tighten setscrew to torque as

shown in the following Bare Wire Torque Specifications chart.

A. Terminal lug

B. Setscrew

C. Line 2 (red) wire

D. Neutral (white) wire

E. Line 1 (black) wire

Bare Wire Torque Specifications

Attaching terminal lugs to the terminal block - 20 lbs-in. (2.3 N-

Wire Awg Torque

8 gauge copper 25 lbs-in. (2.8 N-m)

6 gauge aluminum 35 lbs-in. (4.0 N-m)

5. Use a hex or Phillips screwdriver to connect the bare (green)

ground wire to the range with the ground-link screw and

ground-link section. The ground wire must be attached first

and must not contact any other terminal.

Download manual in English (PDF, 2.76 MB)
