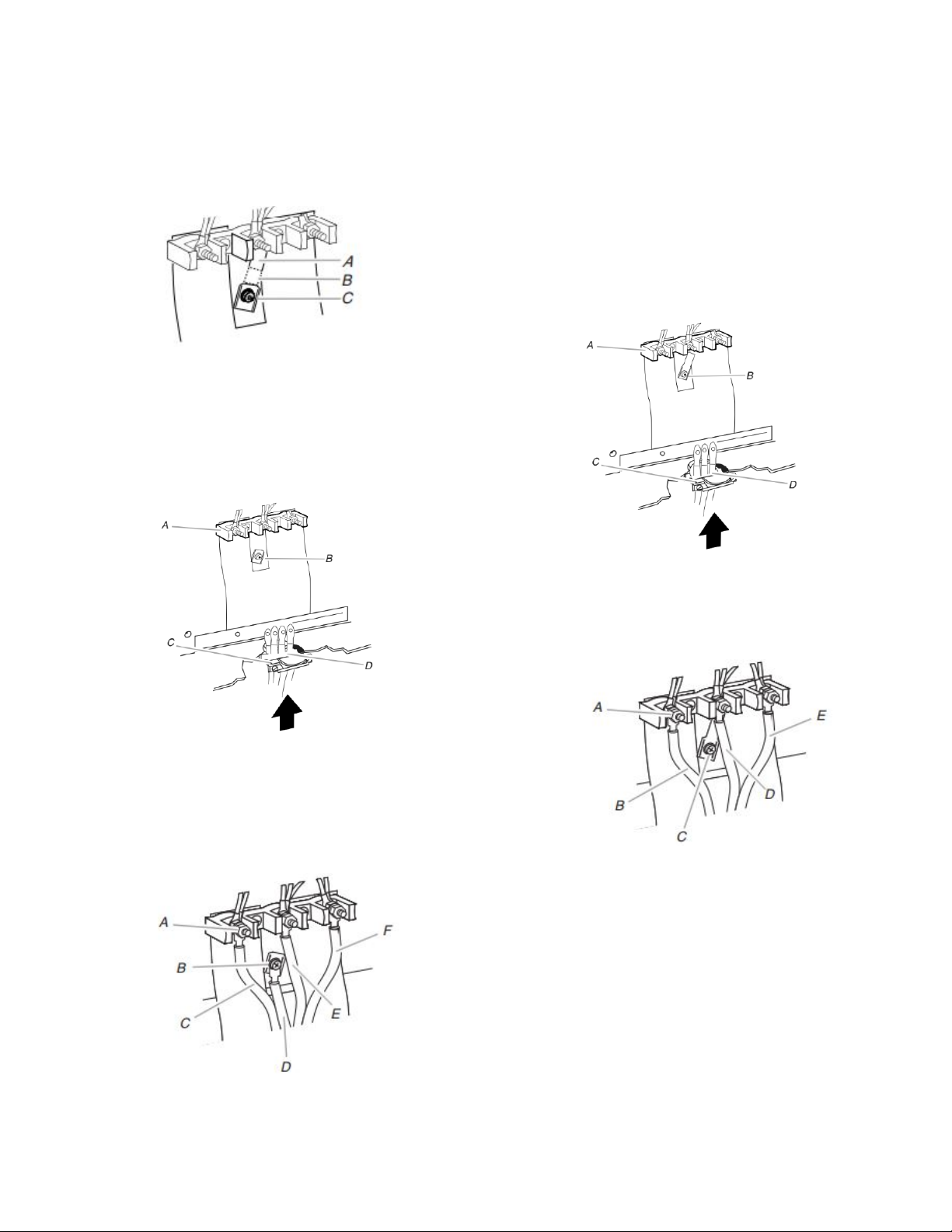

4-Wire Connection: Power Supply Cord

Use this method for:

� New branch-circuit installations (1996 NEC)

� Mobile homes

� Recreational vehicles

� In an area where local codes prohibit grounding through the

neutral

1. Part of metal ground strap must be cut out and removed.

A. Metal ground strap

B. Discard

C. Ground-link screw

2. Use a Phillips screwdriver to remove the ground-link screw

from the back of the range. Save the ground-link screw and

the end of the ground link under the screw.

3. Feed the power supply cord through the strain relief on the

cord/conduit plate on bottom of range. Allow enough slack to

easily attach the wiring to the terminal block.

A. Terminal block

B. Ground-link screw

C. UL listed strain relief

D. Power supply cord wires

4. Use Phillips screwdriver to connect the green ground wire

from the power supply cord to the range with the ground-link

screw. The ground wire must be attached first.

5. Use 3/8" (9.5 mm) nut driver to connect the neutral (white)

wire to the center terminal block post with one of the 10-32

hex nuts.

A. 10-32 hex nut

B. Ground-link screw

C. Line 2 (red)

D. Green ground wire

E. Neutral (center) wire

F. Line 1 (black)

6. Connect line 2 (red) and line 1 (black) wires to the outer

terminal block posts with 10-32 hex nuts.

7. Securely tighten hex nuts.

NOTE: For power supply cord replacement, use only a power

cord rated at 250 V minimum, 40 A or 50 A that is marked for

use with nominal 1

⁄

" (3.5 cm) diameter connection opening,

with ring terminals and marked for use with ranges.

8. Tighten strain relief screws.

9. Replace terminal block access cover.

3-Wire Connection: Power Supply Cord

Use this method only if local codes permit connecting chassis

ground conductor to neutral wire of power supply cord.

1. Feed the power supply cord through the strain relief in the

cord/conduit plate on bottom of range. Allow enough slack to

easily attach the wiring to the terminal block.

A. Terminal block

B. Ground-link screw

C. UL listed strain relief

D. Power supply cord wires -

large opening

2. Use 3/8" (9.5 mm) nut driver to connect the neutral (white)

wire to the center terminal block post with one of the 10-32

hex nuts.

A. 10-32 hex nut

B. Line 2 (red)

C. Ground-link screw

D. Neutral (white) wire

E. Line 1 (black)

3. Connect line 2 (red) and line 1 (black) wires to the outer

terminal block posts with 10-32 hex nuts.

4. Securely tighten hex nuts.

NOTE: For power supply cord replacement, only use a power

cord rated at 250 V minimum, 40 A or 50 A that is marked for

use with nominal 1

" (3.5 cm) diameter connection opening,

with ring terminals and marked for use with ranges.

5. Tighten strain relief screws.

IMPORTANT: Verify the tightness of the hex nuts.

6. Replace terminal block access cover.
