■ A 120-volt, 60 Hz., AC-only, 15-amp, fused electrical circuit

is required.

■ If the house has aluminum wiring, follow the procedure

below:

1. Connect a section of solid copper wire to the pigtail

leads.

2. Connect the aluminum wiring to the added section

of copper wire using special connectors and/or tools

designed and UL Listed for joining copper to aluminum.

Follow the electrical connector manufacturer’s recommended

procedure. Aluminum/copper connection must conform with

local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of

the appliance as speciﬁed on the model/serial/rating plate.

The model/serial/rating plate is located inside the range

hood.

■ Wire sizes must conform to the requirements of the National

Electrical Code, ANSI/NFPA 70 (latest edition), or CSA

Standards C22. 1-94, Canadian Electrical Code, Part 1 and

C22.2 No. 0-M91 (latest edition) and all local codes and

ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

NOTE: It is recommended that the vent system be installed

before hood is installed.

Before making cutouts, make sure there is proper clearance

within the ceiling or wall for exhaust vent.

1. Disconnect power.

2. Depending on your model, determine which venting method

to use: roof, wall, or non-vented (recirculating).

3. Select a ﬂat surface for assembling the range hood. Place

covering over that surface.

4. Lift the range hood and set it upside down onto covered

surface.

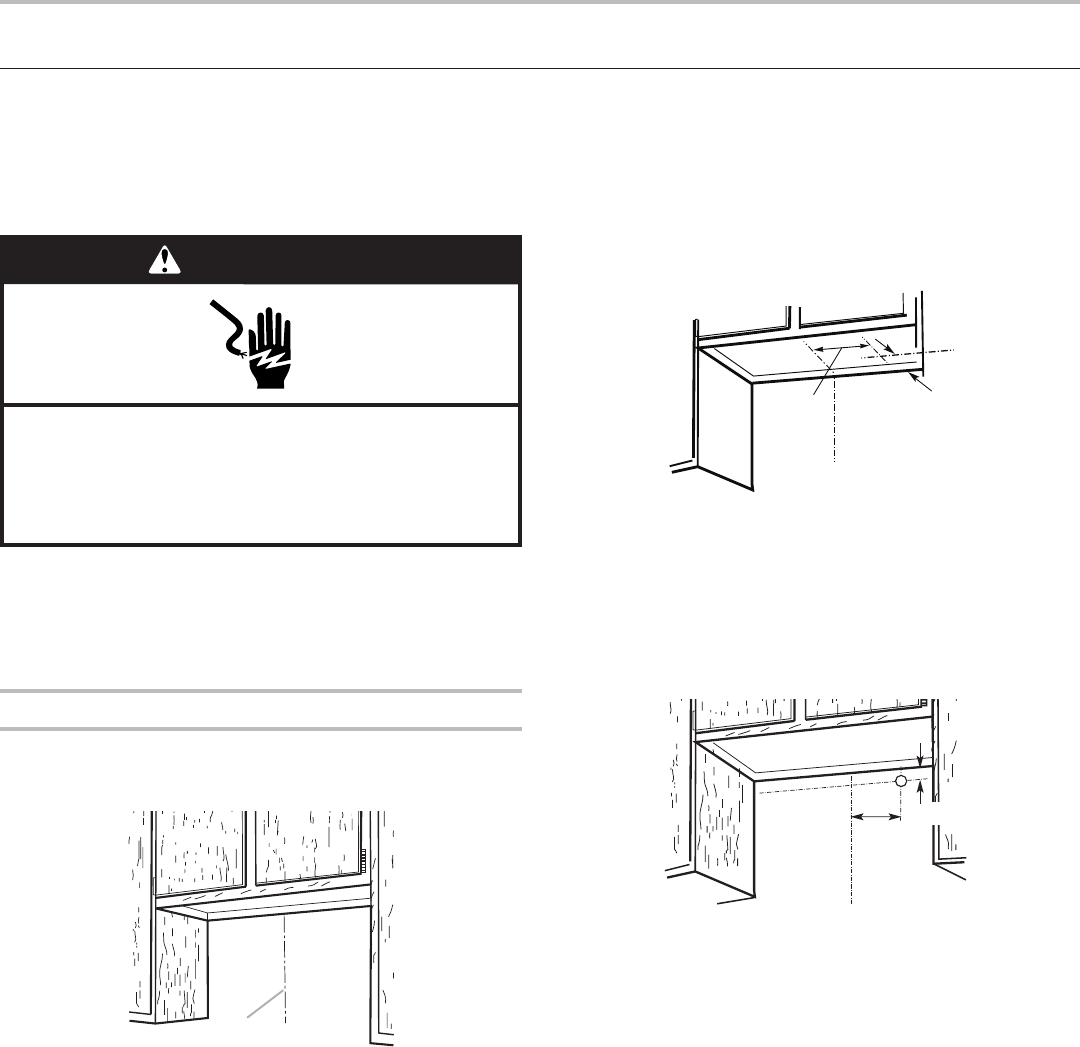

Determine Wiring Hole Location

Cut only one 1¹⁄

" (3.2 cm) diameter wiring access hole.

1. Determine and clearly mark a vertical centerline on the wall

and cabinet in the area the vent opening will be made.

A. Centerline

To wire through top:

1. Mark a line distance “A” from the right of the centerline

on the underside of the cabinet. For 12" (30.5 cm) deep

cabinets, mark the point on this line that is 2" (5.1 cm) from

the back wall. For 15" (38.1 cm) deep cabinets, mark the

point on this line that is 5" (12.7 cm) from the back wall. Drill

a 1¼" (3.2 cm) diameter hole through the cabinet at this

point.

To wire through wall:

1. Mark a line distance “A” from the right of the centerline on

the underside of the wall. Mark the point on this line that is

⁄

" (2.2 cm) from the underside of the cabinet. Drill a 1¹⁄

(3.2 cm) diameter hole through the rear wall at this point.

A. 8³⁄

" (21.3 cm)

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

Centerline

⁷⁄₈" (2.2 cm

)

Centerline

A. 8³⁄

" (21.3 cm)

B. 2" (5.1 cm) for 12" (30.5 cm) deep cabinets*

5" (12.7 cm) for 15" (38.1 cm) deep cabinets*

*From wall, not cabinet frame
