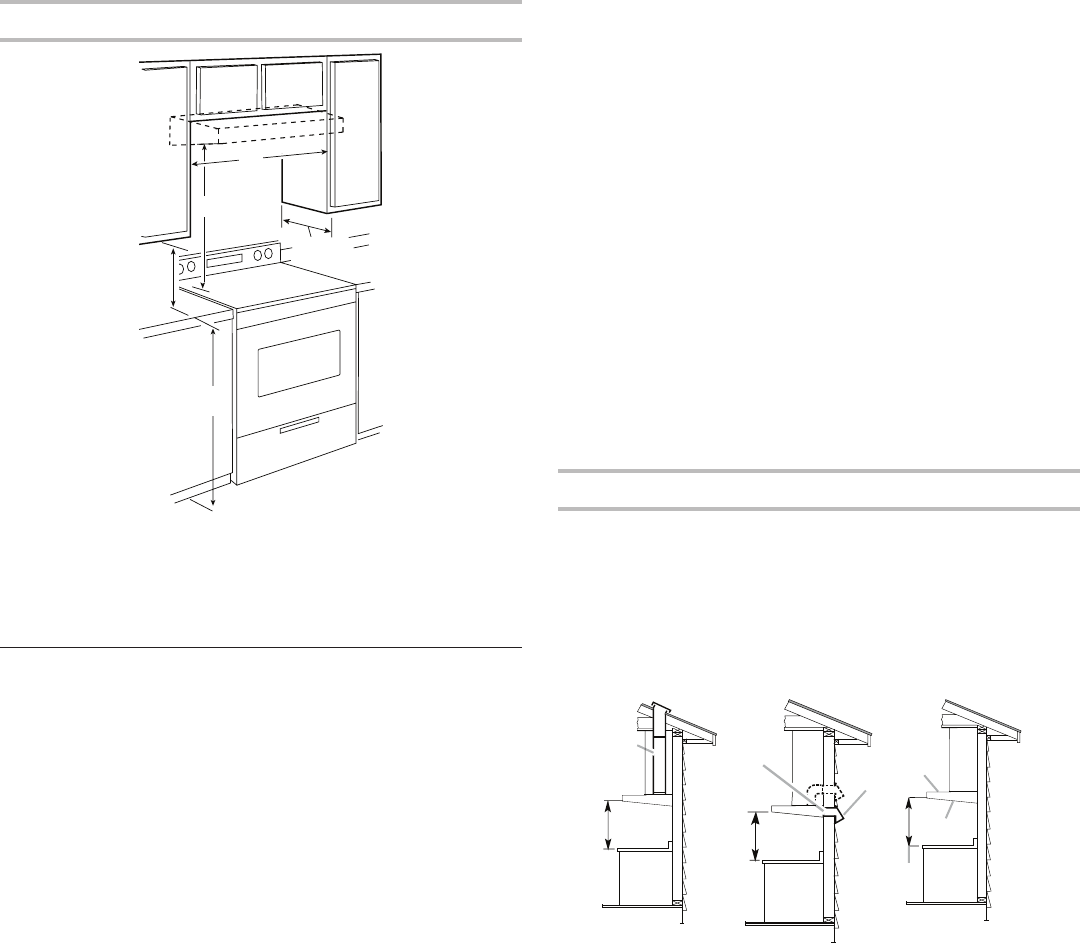

Installation Clearances

A. 18" (45.7 cm) min. clearance - upper cabinet to countertop

B. 24" (61.0 cm) minimum - bottom of range hood to cooking surface

C. 30" (76.2 cm) min. cabinet opening width for 30" (76.2 cm) models

36" (91.4 cm) min. cabinet opening width for 36" (91.4 cm) models

D. 12" (30.5 cm) minimum cabinet depth

E. 36" (91.4 cm) base cabinet height

Venting Requirements

■ This range hood is factory set to exhaust the air to

the outside through the wall or the roof. A non-vented

(recirculating) installation will require a Charcoal Filter Kit.

See the “Accessories” section for ordering information.

■ Vent system must terminate to the outdoors, except for

nonvented (recirculating) installations.

■ Do not terminate the vent system in an attic or other

enclosed area.

■ Do not use a 4" (10.2 cm) laundry-type wall cap.

■ Use a 7" (17.8 cm) round metal vent or a 3¹⁄

4

" x 10"

(8.3 cm x 25.4 cm) rectangular metal vent, depending

on your installation requirements. Rigid metal vent

is recommended. Plastic or metal foil vent is not

recommended.

■ The length of vent system and number of elbows should be

kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

■ Use no more than three 90° elbows.

■ Make sure there is a minimum of 24" (61 cm) of straight vent

between the elbows if more than 1 elbow is used.

■ Do not install 2 elbows together.

■ Use clamps or duct tape to seal all joints in the vent system.

■ The vent system must have a damper. If roof or wall cap has

a damper, do not use damper supplied with the range hood.

■ Use caulking to seal exterior wall or roof opening around

the cap.

Cold Weather Installations

An additional backdraft damper should be installed to minimize

backward cold air flow and a thermal break should be installed

to minimize conduction of outside temperatures as part of the

vent system. The damper should be on the cold air side of the

thermal break.

The break should be as close as possible to where the vent

system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems

when using ventilation systems greater than specified CFM of

air movement. The specified CFM varies from locale to locale.

Consult your HVAC professional for specific requirements in your

area.

Venting Methods

Vent system can terminate either through the roof or wall. Use

3¹⁄

4

" x 10" (8.3 cm x 25.4 cm) rectangular with a maximum vent

length of 35 ft (10.7 m) or 7" (17.8 cm) or larger round vent with

a maximum length of 50 ft (15.2 m) for vent system.

NOTE: Flexible vent is not recommended. Flexible vent creates

both back pressure and air turbulence that greatly reduce

performance.

A. 7" (17.8 cm) round vent through roof or 3

1

⁄

4

" x 10"

(8.3 cm x 25.4 cm) rectangular vent through the roof

or wall (purchased separately)

B. Roof/Wall cap with damper (purchased separately)

C. 24" (61.0 cm) min. above the cooking surface

D. Charcoal Filter Kit (purchased separately)

E. Recirculating grid

C

A

B

D

E

Roof Venting Wall Venting Recirculating

B

A

C

B

A

C

C

D

E
