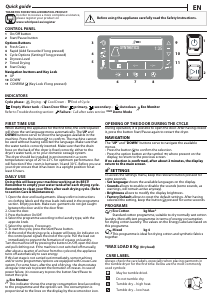

Manual Whirlpool FT D 8X3WSY EU Dryer

Need a manual for your Whirlpool FT D 8X3WSY EU Dryer? Below you can view and download the PDF manual for free in English. This product currently has 6 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website - docs.whirlpool.eu

• Using QR Code

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When

contacting our After-sales Service, please state the codes provided on your product’s identi cation plate.

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance,

please register your product on

www.whirlpool.eu/register

Quick guide

Before using the appliance carefully read the Safety Instructions.

xxxxxxxxxxxx

xxxx

Before using the appliance carefully read the Safety Instructions.

xxxxxxxxxxxx

xxxx

OPENING OF THE DOOR DURING THE CYCLE

During operation, it is possible to open the door. After having closed

it, press the button Start/Pause again to restart the dryer.

NAVIGATION

The "UP" and "DOWN" buttons serve to navigate the available

menus.

• Press the button to conrm the selection.

• Press the option button at the symbol , where present on the

display, to return to the previous screen.

If no selection is conrmed, after about 2 minutes, the display

return to the main screen.

SETTINGS

To access the settings menu, keep the relevant button pressed for

some seconds.

• Set language shows the available languages on the display.

• Sounds allows to enable or disable the sounds (some sounds, as

warnings, will remain active anyway).

• Brightness allows to modify the display brightness.

• Factory Default allows to reset the default settings. After having

selected the setting, keep the button pressed for some seconds.

PROGRAMS

Eco Cotton kg Max*

Standard cotton programme, suitable to dry normally wet cotton

laundry. Most ecient programme in terms of energy consumption

for drying cotton laundry. The values on the Energy Label are based on

this programme.

Mixed kg 4

This programme is ideal for drying cotton and synthetic fabrics

together.

FIRST TIME USE

When starting the appliance for the rst time, the control panel

will show the set language menu automatically. The UP and

DOWN buttons serve to show the languages available in the

machine. Press the button to conrm. The machine cannot

be used without having selected the language. Make sure that

the water tank is correctly inserted. Make sure that the drain

hose on the back of the dryer is xed correctly, either to the

dryer’s water tank, or to your domestic sewage system.

The dryer should be installed in environment in a room

temperature range of 20°to 23°C for optimum performance. But

will function if the room is between 14 and 30°C. Before you use

your dryer ensure that it has been in a upright position for at

least 6 hours.

DAILY USE

Doing this will keep your machine working at its BEST!

Remember to empty your water tank after each drying cycle.

Remember to clean your lters after each drying cycle. (Refer

to section Care & Maintanence).

1. Open the door and load garments. Always refer to instructions

on clothing labels and the max loads indicated in the programme

section. Empty pockets. Make sure garments do not get caught

between the door and/or the door lter.

2. Close the door.

3. Press the button On/O.

4. Select the programme according to the laundry type, with the

apposite knob.

5. Select the options, if necessary.

6. To start the cycle, press the Start/Pause button.

7. At the end of the drying cycle, a buzzer will beep. An indicator on

the control panel signals the end of the cycle. Pull the load out

immediately to prevent the formation of creases on laundry.

Turn the machine o by pressing the button On/O, open the door

and pull clothing out. If the machine is not switched o manually,

after about a quarter of an hour from the cycle end, the appliance

turns o automatically to save energy.

If this last stage is not carried out immediately, some machines

and/or some programmes/options are equipped with Crease Care

system. For some hours, after the end of drying, the drum rotates

at regular intervals to prevent the formation of creases. In case of

power failure, it is necessary to press the button Start/Pause to

restart the cycle.

Eco Monitor

This indicator shows the energy consumption level according

to the programme and the options set. The consumption is

proportional to the lines on the display,by the ecomonitor icon.

*MAX LOAD 8 Kg (Dry load)

CARE LABEL

Always check the care labels, especially when placing garments in

the tumble dryer for the  rst time. Below are the most commonly

used symbols:

May be tumble dried.

Do not tumble dry.

Tumble dry – high heat.

Tumble dry – low heat.

CONTROL PANEL

1 On/O button

2 Start/Pause button

Options Buttons

3 Fresh Care +

4 Rapid (Add Favourite if long pressed)

5 Cycle Options (Setting if long pressed)

6 Dryness Level

7 Timed Drying

8 Start Delay

Navigation buttons and Key Lock

9 UP

10 DOWN'

11 CONFIRM (Key Lock if long pressed)

INDICATORS

Cycle phase: Drying - Cool Down - End of Cycle

Empty Water tank - Clean Door lter: primary, secondary - Autoclean Eco Monitor

Refer to Troubleshooting section:

Failure: Call after sales service

DEMO

Demo Mode

SYNTHETICS

1:35

-:--

6 7 8
