Manual

2120

Preparations

MONITOR

COMPUTER 2 IN

Y/P

(

)

AUDIO OUT

AUDIO IN

CONTROL

S-VIDEO

VIDEO

COMPUTER 1 IN

Y/P

(

)

p.47

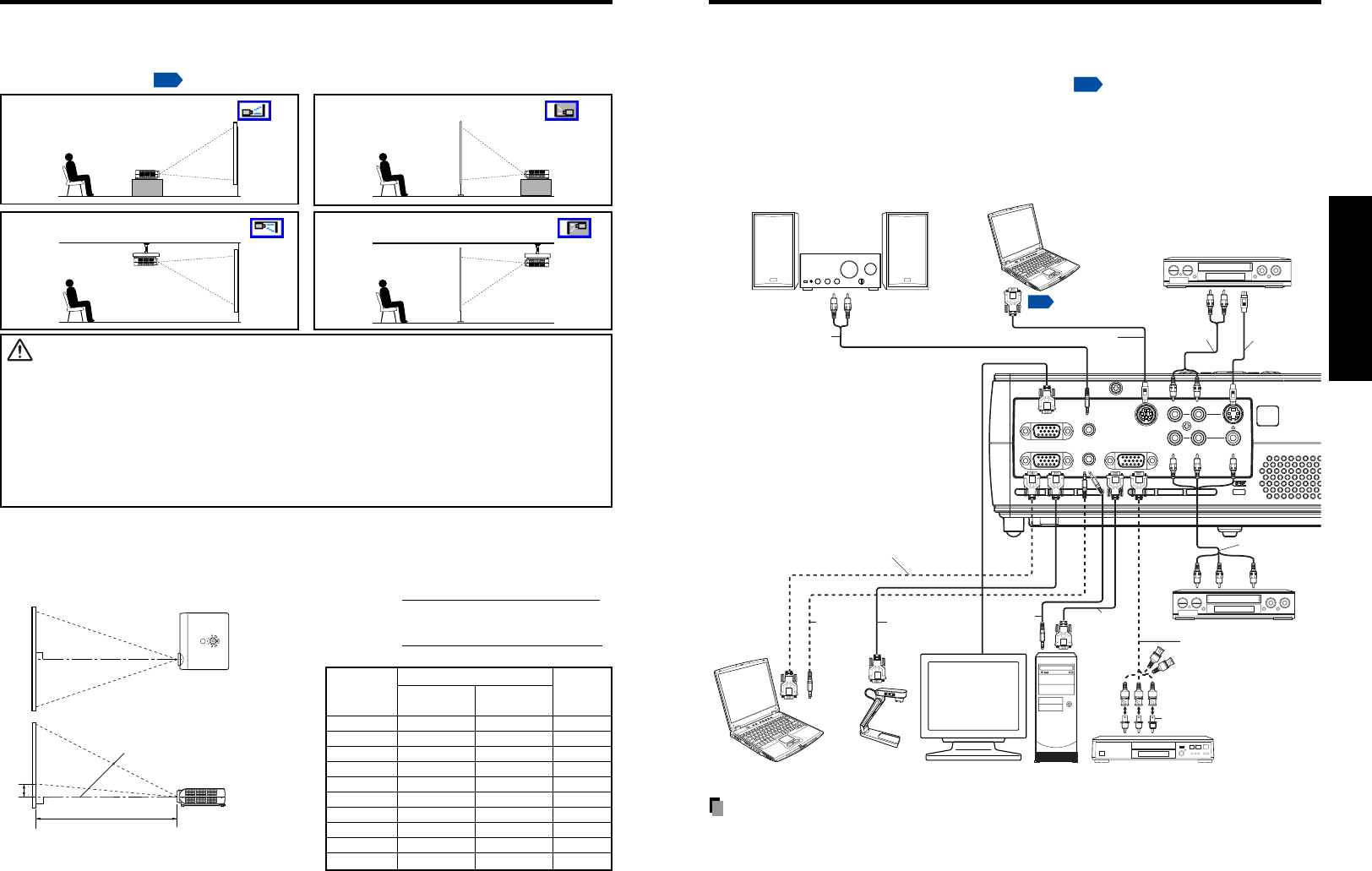

Before connection

• Read the owner’s manual of the device you are connecting to the projector.

• Some types of computer cannot be used or connected to this projector.

Check for an RGB output terminal, supported signal

p.45

, etc.

•Turn off the power of both devices before connecting.

• The figure below is a sample connection. This does not mean that all of these devices

can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)

Notes

• COMPUTER terminals 1 and 2 function identically.

• For TDP-S21, the document camera should be connected to COMPUTER terminal 2.

• The AUDIO IN terminal doubles for devices connected to COMPUTER terminals 1 and 2.

Connection

To audio

output

To RGB

output

Control cable

To RS-232C terminal

RGB cable

(not supplied)

To Y/CB/CR output

Green (Y)/Blue (C

B)/Red (CR)

VCR

S-Video cable

(not supplied)

Video cable

(not supplied)

To S-Video

output

To audio output

White (L)/Red (R)

Computer

(for control)

Conversion adapter BNC-pin

(not supplied)

Monitor cable Mini D-sub

15P-BNC

(not supplied)

Audio cable

(not supplied)

Video recorder,

DVD player, etc.

Projection Distance and Size

Use the figures, tables, and formulas below to determine the projection size and projection distance.

(Projection sizes are approximate values for full-size picture with no keystone adjustment.)

Placement Styles

As shown in the figures below, this device can be placed in 4 different styles.

The factory setting is “floor-mounted front projection.” Set the Projection mode in the

default setting menu

p.32

, in accordance with your needs.

Placement

Floor-mounted front projection

WARNING

• Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit.

Attempting to clean/replace the lamp at a high site by yourself may cause you to drop down, thus

resulting in injury.

• If you wish to mount the projector on the ceiling, be sure to ask your dealer to do so. Mounting the

projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge.

Improper mounting could cause the projector to fall, resulting in an accident.

• If the projector is ceiling-mounted, install the breaker for turning off the power in case of anomaly. Let

everyone involved with the use of the projector know that fact.

Floor-mounted rear projection

Ceiling-mounted front projection Ceiling-mounted rear projection

a is the distance (m) between the lens and the

screen, and corresponds to a range of 1.15 m to

10.00 m. H is the height from the image bottom to the

center of the lens.

Screen

As seen from above

Lens center

As seen from the side

a (min length) =

projection size (inches) – 1.516

29.85

a (max length) =

projection size (inches) – 1.264

24.88

Audio amplifier, etc.

To audio

output

White (L)/

Red (R)

DVD video recorder, etc.ComputerComputer

RGB cable

(supplied with

TDP-S21)

Audio cable

(not supplied)

RGB cable

(supplied)

To RGB

output

Audio cable

(not supplied)

To audio input

White (L)/Red (R)

AV cable

(not supplied)

To audio

output

To video

output

Document camera

projection

projection distance a (m)

height (H)

min length max length

size (inches)

(zooming max) (zooming min)

(cm)

30 — 1.15 5.5

36 1.15 1.40 6.6

40 1.29 1.56 7.3

60 1.96 2.36 11.0

80 2.63 3.17 14.6

100 3.30 3.97 18.3

150 4.97 5.98 27.4

200 6.65 7.99 36.6

250 8.32 10.00 45.7

300 10.00 — 54.9
