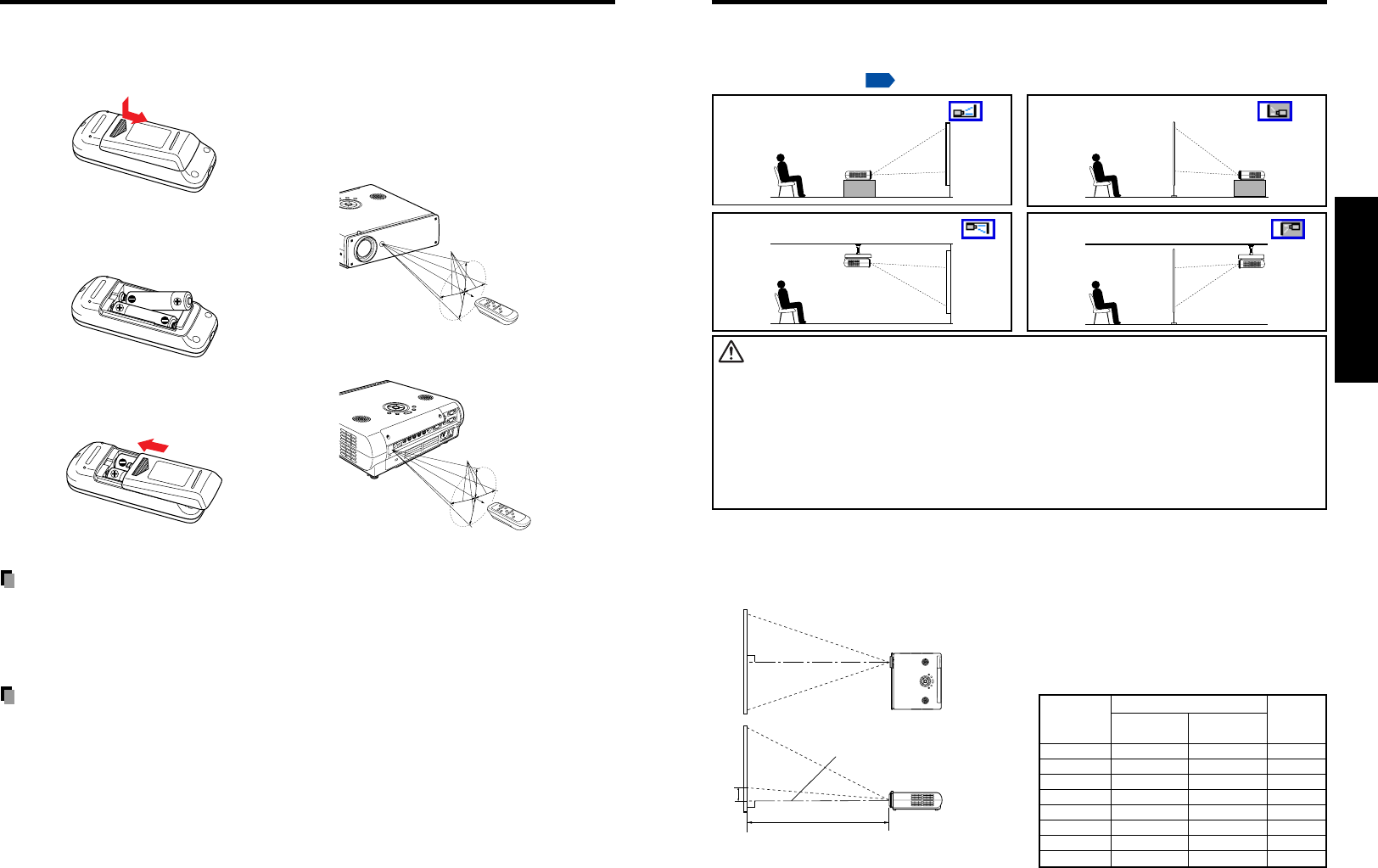

Preparations

Projection Distance and Size

Use the figures, tables, and formulas below to determine the projection size and projection distance.

(Projection sizes are approximate values for full-size picture with no keystone adjustment.)

Placement Styles

As shown in the figures below, this device can be placed in 4 different styles.

The factory setting is “floor-mounted front projection.” Set the Projection mode in the

default setting menu

p.31

, in accordance with your needs.

Placement

Floor-mounted front projection

WARNING

• Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit.

Attempting to clean/replace the lamp at a high site by yourself may cause you to drop down, thus

resulting in injury.

• If you wish to mount the projector on the ceiling, be sure to ask your dealer to do so. Mounting the

projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge.

Improper mounting could cause the projector to fall, resulting in an accident.

• If the projector is ceiling-mounted, install the breaker for turning off the power in case of anomaly. Let

everyone involved with the use of the projector know that fact.

Floor-mounted rear projection

Ceiling-mounted front projection Ceiling-mounted rear projection

H

a

90

°

Screen

As seen from above

Lens center

As seen from the side

a (min length) = projection size (inches) × 0.04064

a (max length) = projection size (inches) × 0.04878

90

°

a is the distance (m) between the lens and the

screen, and corresponds to a range of 1.20 m to

10.00 m. H is the height from the image bottom to

the center of the lens.

projection

projection distance a (m)

height (H)

min length max length

size (inches)

(zooming max) (zooming min)

(cm)

24.6 — 1.20 5.6

40 1.62 1.95 9.1

60 2.44 2.93 13.8

80 3.25 3.90 18.3

100 4.00 4.88 22.9

150 6.10 7.30 34.3

200 8.10 9.76 45.7

246 10.00 — 56.2

■ Operating the remote

control

Point the remote control toward the

projector’s infrared remote sensor,

and press a button on the remote

control.

• Operating the projector from the front

Approx. 15°

Approx. 5m

• Operating the projector from the rear

Approx. 15°

Approx. 5m

■ Loading dry-cell batteries

into the remote control

q Remove the battery cover.

w Insert the dry-cell batteries.

Be sure to align the plus and minus

ends of the batteries properly.

Two batteries (R6, SIZE AA) are used.

e Replace the battery cover.

Dry-cell batteries

• Before using the batteries, be sure to observe the Safety Precautions described in

previous pages.

• Remove batteries from remote control when not using for extended periods.

• If the remote control stops working, or if its range decreases, replace all the batteries with

new ones.

The remote control

• The remote control may fail to operate if the infrared remote sensor is exposed to bright

sunlight or fluorescent lighting.

• Do not drop or bang.

• Do not leave in hot or humid locations.

• Do not get wet or place on top of wet objects.

• Do not take apart.

• In rare cases, ambient conditions could impede the operation of the remote control. If this

happens, point the remote control at the main unit again, and repeat the operation.

•For further information of the mouse remote control, see the Owner’s Manual of the

Mouse Remote Control.

Preparing and using the remote control

Rating

More about this manual
