Simple Setup
4
How you set up your speakers can affect the bass and the sound field. Note the following points:
≥ Place speakers on flat secure bases.
≥ Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.
≥ Left and right speakers are interchangeable, but front and surround speakers are not.
≥ Place the front, center, and surround speakers at approximately the same distance from the seating position.
The angles in the diagram are approximate.
≥Use only supplied speakers
Using other speakers can damage the unit, and sound quality will be
negatively affected.
≥ Set the speakers up on an even surface to prevent them from falling.
Take proper precautions to prevent the speakers from falling if you
cannot set them up on an even surface.
Main unit
[Note]
≥ Keep your speakers at least 10 mm away from the system for proper
ventilation.
≥ To allow for proper ventilation and to maintain good airflow around the
main unit, position it with at least 5 cm of space on all sides.
≥ Do not block the ventilation holes of the main unit.
Center speaker
≥
Vibration caused by the center speaker can disrupt the picture if it is
placed directly on the television. Put the center speaker on a rack or shelf.
≥ To prevent the speakers from falling, do not place directly on top of the
television.
[HT545W]
Wireless system
≥
Place the wireless system within approximately 10 m from the main unit.
≥ Do not use the wireless system or the digital transceiver in a metal
cabinet or bookshelf.
Subwoofer
Place to the right or left of the television, on the floor or a sturdy shelf so
that it will not cause vibration. Leave about 30 cm from the television.
Caution
Do not touch the netted area of
the speakers.
Notes on speaker use
≥ You can damage your speakers and shorten their useful life if you play
sound at high levels over extended periods.
≥ Reduce the volume in the following cases to avoid damage:
– When playing distorted sound.
– When the speakers are reverberating due to a record player,
noise from FM broadcasts, or continuous signals from an oscillator,
test disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
If irregular coloring occurs on your television
The front and center speakers are designed to be used close to a
television, but the picture may be affected with some televisions and
setup combinations.
If this occurs, turn the television off for about 30 minutes.
The demagnetizing function of the television should correct the problem.
If it persists, move the speakers further away from the television.

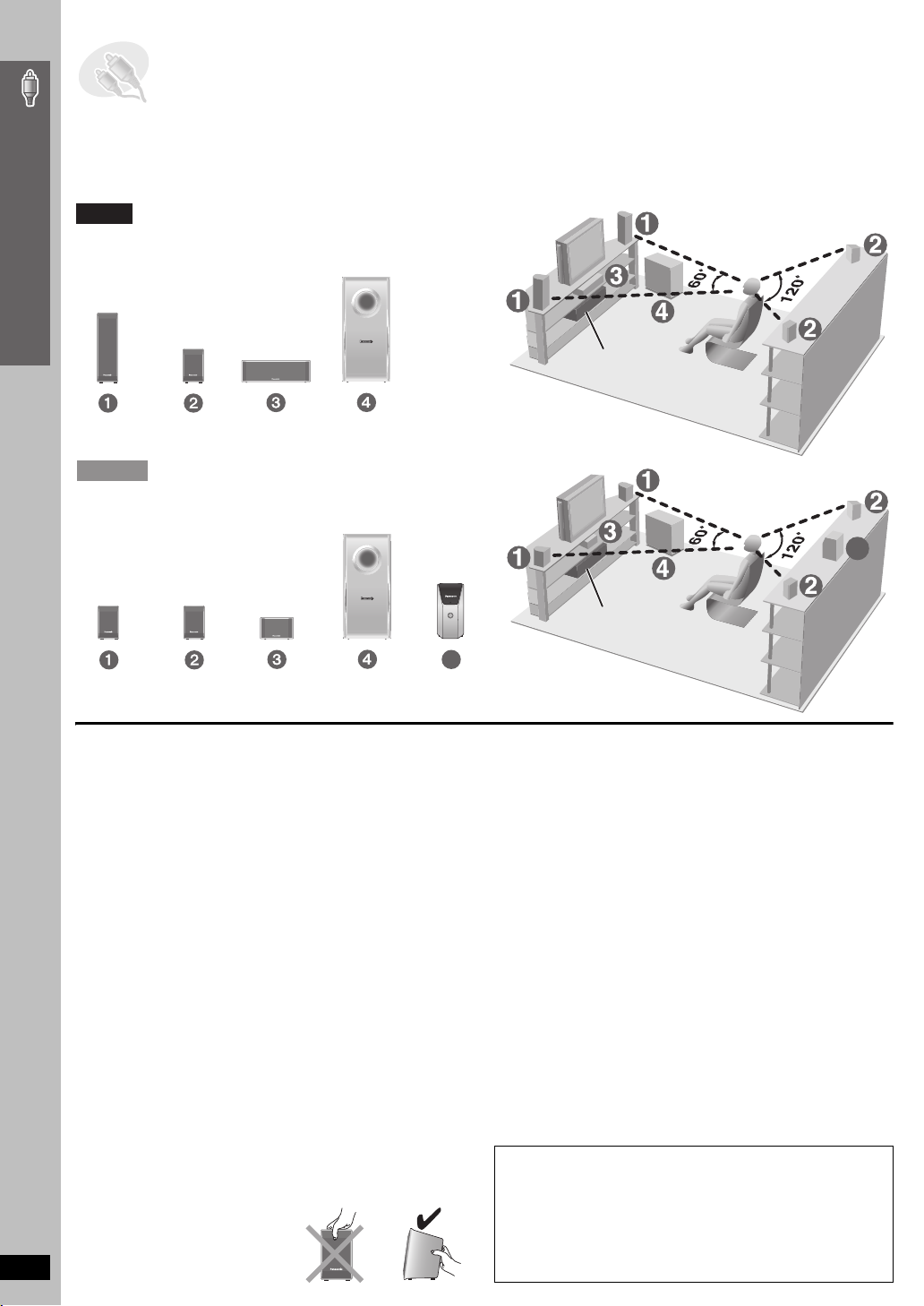

STEP1 Positioning the speakers
HT545
5
HT545W
5
Setup example
Main unit
(with digital transceiver)
FRONT
(L, R)
SURROUND
(L, R)
CENTER
SUBWOOFER WIRELESS
SYSTEM
Setup example
Main unit
FRONT
(L, R)
SURROUND
(L, R)
CENTER
SUBWOOFER
e.g. Surround speaker
Caution
≥ The main unit and supplied speakers are to be used only as
indicated in this setup. Failure to do so may lead to damage to
the amplifier and/or the speakers, and may result in the risk of
fire. Consult a qualified service person if damage has occurred
or if you experience a sudden change in performance.
≥ Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
Positioning the speakers
