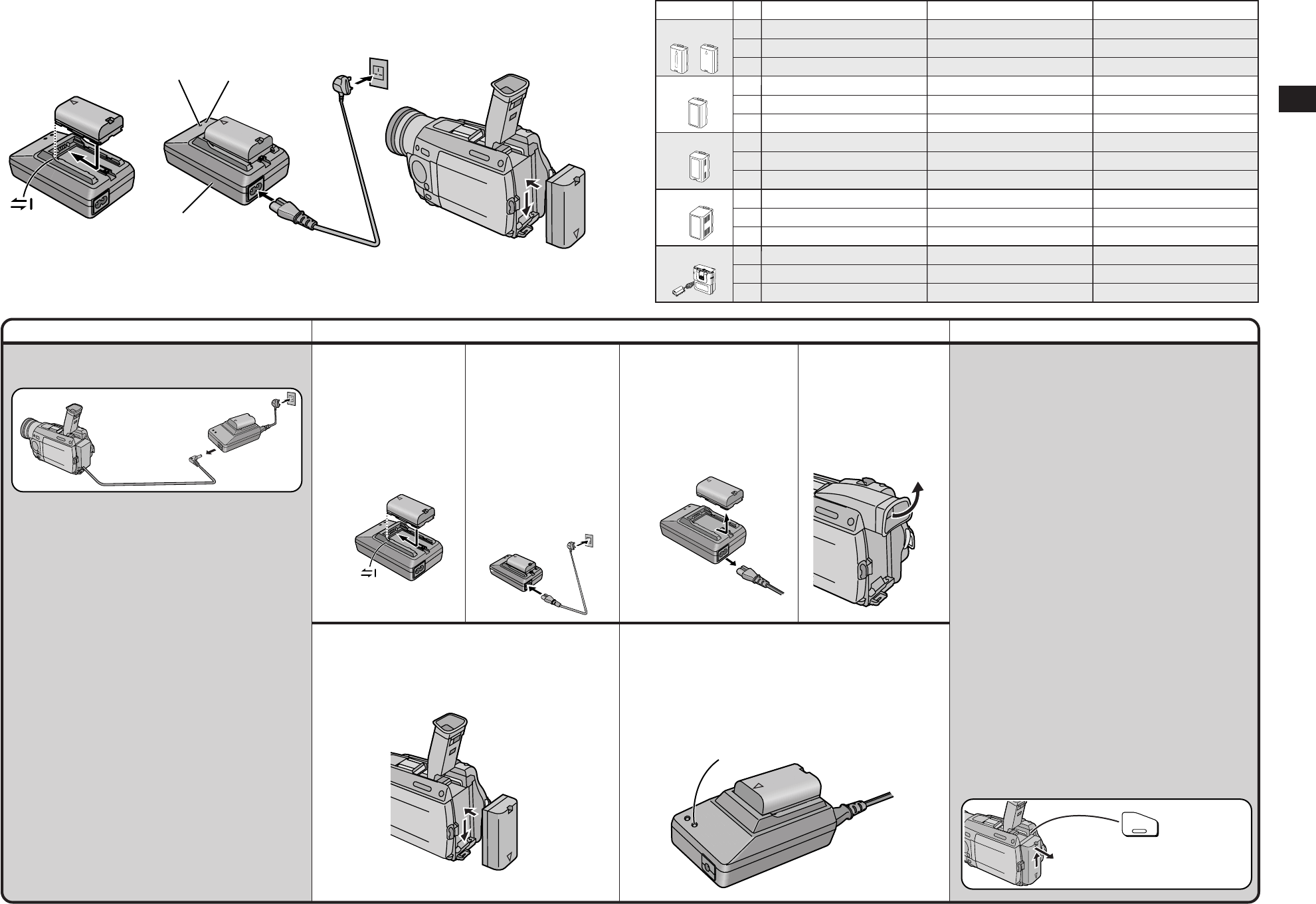

Basic Operations

8 9

Title Procedure Remarks, etc.

PUSH

BATT.

EJECT

AC Adaptor

3) Supplying Power with the Battery

Before use, fully charge the Battery.

When the [CHARGE] Lamp Flashes Continuously

If the temperature of the Battery is extremely low or

extremely high, the [CHARGE] Lamp on the AC

Adaptor flashes continuously. It also flashes

continuously when some malfunction has occurred in

the Battery or the AC Adaptor. For details, read “Notes

about the AC Adaptor”. (p. 115)

≥Charge the Battery at a room temperature between

10oC and 30oC.

≥If the DC Input Lead is connected to the AC Adaptor,

disconnect it as charging is not possible otherwise.

≥If the [CHARGE] Lamp does not light even though the

Battery is attached, remove the Battery and then re-

attach it.

≥During recording and charging, the Battery becomes

warm. However, this is normal.

≥If the temperature of the Battery is extremely high or

extremely low, the [CHARGE] Lamp may keep on

flashing and charging is not possible. After the

Battery has cooled down or warmed up sufficiently,

charging starts automatically.

1

Have the front edge of

the battery lined up with

the

1 mark on the side

of the AC Adaptor, and

then slide it horizontally

until it locks with a

click.

5

Insert the Battery into the Battery Holder on the

Movie Camera and slide it downward until it locks

with a click.

2

Connect the AC Mains

Lead to the AC Adaptor

and an AC mains socket.

The [POWER] Lamp and

the [CHARGE] Lamp light

and charging starts.

≥The AC Mains Lead

does not fit entirely into

the AC Adaptor socket,

however this has no

effect on operation.

4

Tilt the Viewfinder

upward.

Charging Time and Maximum Time for

Continuous Recording

The times shown in the above chart are

approximations. The figures in parentheses show the

recording time when using the LCD Monitor.

The times listed above for your information indicate the

duration of recording performed at an ambient

temperature of 20°C and 60% relative humidity. The

charging time may be longer when you charge the

Battery at higher or lower temperature.

A Charging Time

B Maximum Continuous Recording Time

C Intermittent Recording Time

(The Intermittent Recording Time indicates the total

recording time possible when you start and stop

recording repeatedly.)

≥The Battery Model VSB0418 is supplied.

≥During use and charging, the Battery becomes warm.

The Movie Camera, too, becomes warm during use.

≥

When you repeatedly stop and restart recording, the

recording time per Battery is shorter than listed above.

≥If you do not use the Battery for a long time, please

read “Precautions for Storage”. (p. 116)

≥The Battery models CGP-D110 and CGP-D105

cannot be charged with this AC Adaptor.

Removing the Battery from the Movie Camera

While pressing the [BATT. EJECT] Button, slide the

Battery upward to remove it.

≥Be careful not to drop the Battery by accident.

≥Before removing the Battery, set the [OFF/ON/MODE]

Switch to [OFF].

1

3

Remove the Battery by

sliding it in the

opposite direction of

Step

1

.

≥Also disconnect the AC

Mains Lead.

When charging,

do not connect

the DC Input

Lead to the

AC Adaptor.

Power Lamp

Charge Lamp

Battery Eject Button

Charge Lamp [CHARGE]

Lit: During charging.

Off: When the Battery is fully charged.

Charge Lamp

CGP-D210

NV-MX1 NV-MX5 NV-MX7

CGR-D220

CGP-D320

CGR-D815

VSB0418

CGR-D120

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

1 h.

1 h 50 min.

2 h.

3 h 15 min.

5 h 20 min.

1 h 20 min. (1 h 5 min.)

40 min. (35 min.)

2 h 20 min. (1 h 50 min.)

1 h 10 min. (55 min.)

2 h 50 min. (2 h 15 min.)

1 h 25 min. (1 h 10 min.)

4 h 50 min. (3 h 55 min.)

2 h 25 min. (2 h.)

4 h 35 min. (3 h 50 min.)

9 h 10 min. (7 h 40 min.)

1 h.

1 h 50 min.

2 h.

3 h 15 min.

5 h 20 min.

1 h 25 min. (1 h 5 min.)

45 min. (35 min.)

2 h 20 min. (1 h 55 min.)

1 h 10 min. (1 h.)

2 h 55 min. (2 h 20 min.)

1 h 30 min. (1 h 10 min.)

5 h 5 min. (4 h 5 min.)

2 h 35 min. (2 h 5 min.)

4 h 45 min. (3 h 50 min.)

9 h 25 min. (7 h 40 min.)

1 h.

1 h 50 min.

2 h.

3 h 15 min.

5 h 20 min.

1 h 20 min. (1 h 5 min.)

40 min. (35 min.)

2 h 20 min. (1 h 50 min.)

1 h 10 min. (55 min.)

2 h 50 min. (2 h 15 min.)

1 h 25 min. (1 h 10 min.)

4 h 50 min. (3 h 55 min.)

2 h 25 min. (2 h.)

4 h 35 min. (3 h 50 min.)

9 h 10 min. (7 h 40 min.)

Rating
