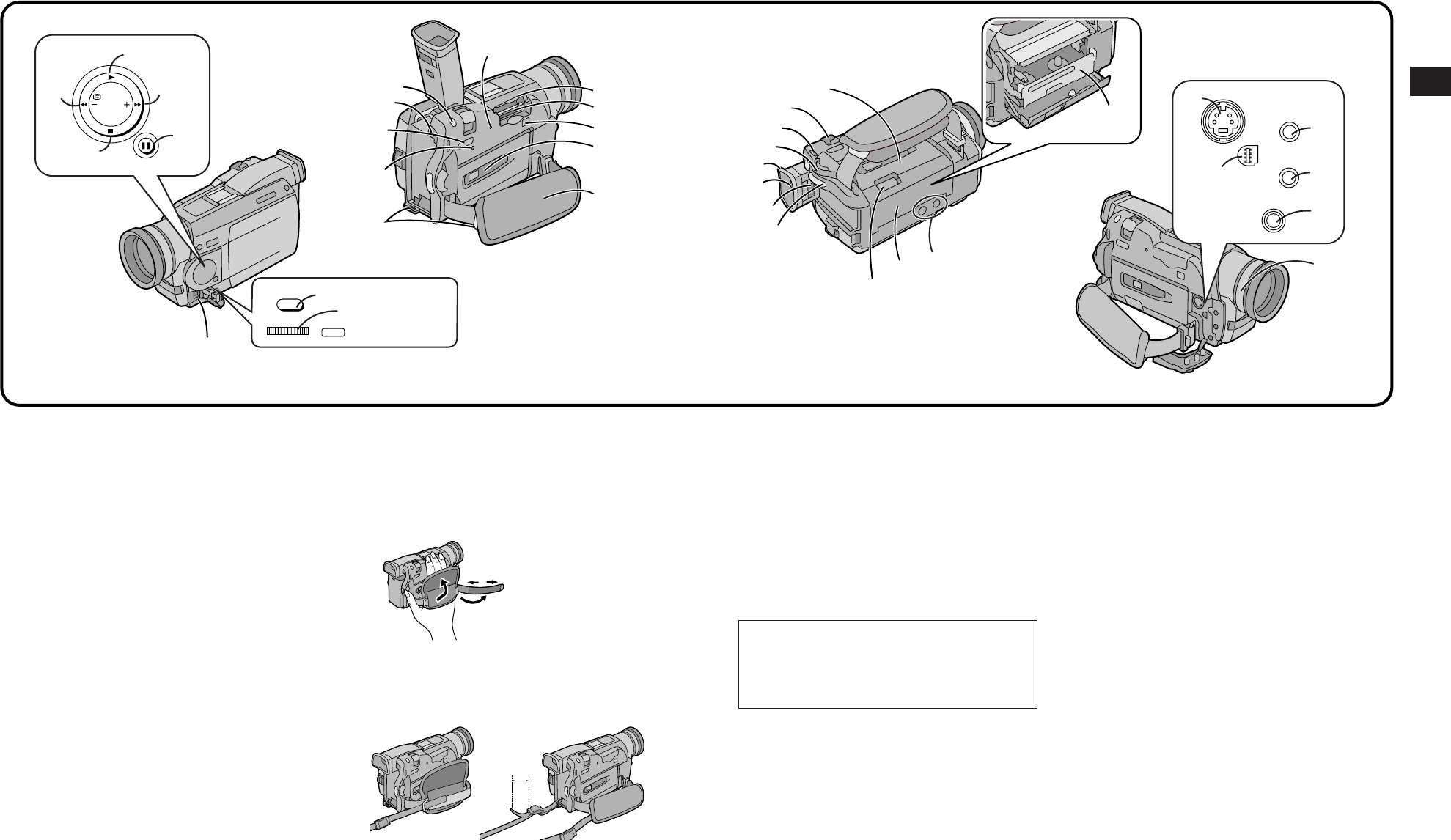

Basic Operations

Controls and Functions

(Continued)

PUSH

W.B/SHUTTER/IRIS/VOL/JOG

]

[

S-VIDEO

IN/OUT

D.STILL


EDIT

(MINI)

AV IN/OUT

PHONES

MIC

S Cassette Compartment Window (p. 12)

T Grip Belt

You can adjust the Grip Belt to the size of your hand.

When you open or close the Cassette Compartment,

push down the buckle of the Grip Belt so that it does

not prevent the Cassette Compartment from opening

and closing completely.

U Shoulder Strap Holders

Before you go recording outside, it is recommended

that you attach the Shoulder Strap to prevent the

Movie Camera from dropping accidentally.

Pull the end of the Shoulder Strap through the

Shoulder Strap Holder on the Movie Camera.

Fold the end of the Shoulder Strap back, pull it

through the Shoulder Strap Length Adjuster.

Pull it out more than 2 cm 1 from the Shoulder Strap

Length Adjuster so that it cannot slip off.

Pass your hand through

the Grip Belt and adjust

its length. Fold back the

end of the Grip Belt to

securely fasten the

velcro tape closure.

V Upper Cassette Compartment Cover (p. 12)

W Zoom Lever [W/T] (p. 32)

X Operation Mode Lamps

[CAMERA/VCR/CARD P.B] (p. 26, 38, 88)

(Only the NV-MX5 and NV-MX7 models come with

[CARD P.B] Lamp.)

Y Off/On Mode Selector Switch [OFF/ON/MODE]

(p. 14, 26, 38, 42, 88)

Z Eyecup

[ Viewfinder (p. 14, 23, 117)

c Edit Socket [EDITD (MINI)] (p. 111, 112)

d Audio-Video Input/Output Socket [AV IN/OUT]

(p. 42, 108, 111, 114) (Only the NV-MX7 model

comes with an input function.)

Headphone Socket [PHONES] (p. 43)

When a cable is connected to this socket, the Movie

Camera’s built-in speaker is turned off.

e Microphone Socket [MIC] (p. 117)

To connect an external microphone or audio

equipment. (Connecting to this socket deactivates the

built-in microphone.)

f Digital Still Picture Terminal [D.STILL PICTURE]

(p. 114)

g Focus Ring (p. 30)

Due to limitations in LCD production technology,

there may be some tiny bright or dark spots on

the Viewfinder screen. However, this is not a

malfunction and does not affect the recorded

picture.

\ Eyepiece Corrector Knob (p. 14)

] Recording Start/Stop Button (p. 26)

^ Cassette Eject Lever [OPEN/EJECT] (p. 12, 42)

_ Lower Cassette Compartment Cover (p. 12)

` Tripod Receptacle

To mount the Movie Camera on an optional tripod.

a Cassette Holder (p. 12)

b S-Video Input/Output Socket [S-VIDEO IN/OUT]

(p. 42, 108, 111, 112, 114)

(Only the NV-MX7 model comes with an input

function.)

Connect the S-Video Cable to this socket to record

clearer pictures or view on the TV screen.

C Play Button [1] (p. 38, 89, 94)

D Rewind/Review Button [6] (p. 38, 94)

Recording Check Button [S] (p. 28)

Reverse Search Button [sSEARCH] (p. 44, 88)

E Stop Button [∫] (p. 38, 89, 94)

F Fast Forward/Cue Button [5] (p. 38, 94)

Forward Search Button [SEARCHr] (p. 44, 88)

G Pause Button [;] (p. 40, 89, 94)

H DV Terminal (i.LINK) [¥] (p. 110)

Connect it to digital video equipment.

“i.LINK” is the name of the connector in accordance

with the IEEE1394-1995.

“¥” is the logo marked on products conforming with

the “i.LINK” specifications.

(It is only possible to input digital signals with model

NV-MX7.)

I Menu Button [MENU] (p. 16)

J Multi-Function Dial [PUSH]

(p. 16, 23, 24, 39, 41, 62, 64)

K Photoshot Button [PHOTO SHOT]

(p. 34, 82–87, 90, 92, 96)

L Battery Eject Button [BATT. EJECT] (p. 11)

M Tape/Card Photoshot Selector [TAPE/CARD]

(p. 34, 82–87) (NV-MX5, NV-MX7 only)

N Reset Button [RESET] (p. 128)

O Card Access Lamp [ACCESS] (p. 81)

(NV-MX5, NV-MX7 only)

P Card Slot Cover (p. 80) (NV-MX5, NV-MX7 only)

Q Card Slot (p. 80) (NV-MX5, NV-MX7 only)

R Card Slot Cover Open Lever [OPEN] (p. 80)

(NV-MX5, NV-MX7 only)
