Noctua NH-U14S |
Installation Manual | LGA115x
LGA115x
Even with high-grade products and strict quality control, the
possibility of defects cannot be eliminated entirely. Therefore,
we aim at providing the highest possible level of reliability and
convenience by offering a warranty period of 6 years and direct, fast
and straightforward RMA service.
Should you encounter any problems with your NH-U14S, please
Please also consult the FAQ section on our website:
www.noctua.at/faqs.
Warranty, Support and FAQs!
As it is not possible to reliably calculate or control the forces
that act upon a system during transport (e.g. in shipping), we gen-
erally recommend, for safety reasons, taking the cooler off. Noctua
cannot be held responsible for any damage that may arise due to
excessive stress during transport if you keep the heatsink installed.
Transporting your system!
While Noctua recommends using an NF-A15 fan for best results in
dual fan mode, the extra set of fan clips can also be used to install
most other fans. In this case, please put the supplied self-adhesive
anti-vibration strips onto the heatsink to avoid vibrations being
transmitted to the cooler.
Clip position for standard spacers:
Clip position for thick spacers:

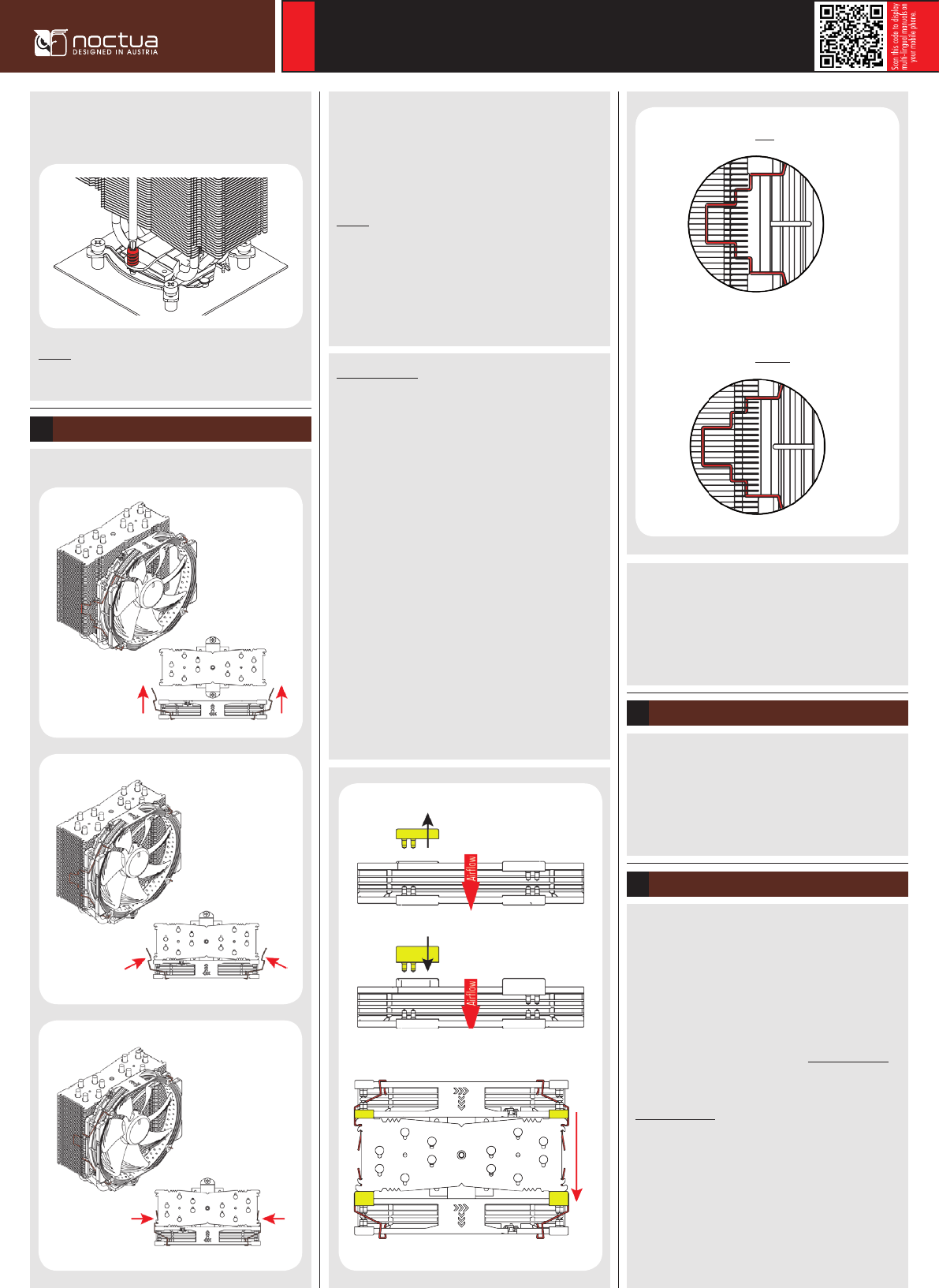

Then put the heatsink onto the CPU and screw it to the screw
threads of the mounting bars. Perform 2-3 turns on each screw,
then repeat until both are fully tightened.
Caution: Gently tighten the screws until they stop, but don’t use
excessive force (max. torque 0.6 Nm).
Reattach the fan to the heatsink using the supplied steel clips:
Fan Setup6
1.
2.
3.
Connect the fan to the motherboard’s CPU fan header.
Depending on your CPU and the temperature inside the case, you
may interconnect the supplied NA-RC7 Low-Noise Adapter (L.N.A.)
in order to further reduce the fan’s operating noise.
Caution: When using the L.N.A., check the temperature of your
CPU using appropriate software (e.g. the respective applications
of your motherboard manufacturer), in order to evade automatic
throttling of the CPU due to the increased temperature. If the cool-
ing performance is insufficient, please increase case ventilation or
remove the L.N.A.
Adding a second fan
The NH-U14S includes an extra set of fan clips and an extra set of
thicker anti-vibration pads for installing a second NF-A15 fan in
push/pull mode in order to further improve cooling performance.
Please use the thicker anti-vibration pads on the rear NF-A-15 fan
for improved acoustics if space allows. The y-cable supplied with
the retail NF-A15 fan can be used to control the speed of both fans
via the same motherboard fan header.
Please note that while the NF-A15 fan included with the NH-
U14S runs at 1500rpm, Noctua recommends using the standard
1200rpm retail version as a rear fan in push/pull mode as the
combination of 1500rpm at the front and 1200rpm at the rear will
provide the best balance of performance and acoustics.
If you would like to run both fans at the same speed, please use the
supplied Low-Noise Adaptor on the front fan to reduce the speed
to 1200rpm.
1. Remove standard spacers on rear fan
2. Install thick spacers on rear fan
Airflow
front fan (standard spacers)
rear fan (thick spacers)
