Manual Neomounts DS70-810BL2 Monitor Mount

Need a manual for your Neomounts DS70-810BL2 Monitor Mount? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

PARTS

DS70-810BL2

Tool

Pencil Drill Tape measure

Tool Pencil

Drill

Tape measure

F. M6x12

(x3)

K. M8

(x1)

N. 4mm

(x1)

O. 6mm

(x1)

P. 10-13mm

(x1)

M-A. M4x12

(x8)

M-B. M5x12

(x8)

M-C. D5

(x8)

H. M8x105

(x1)

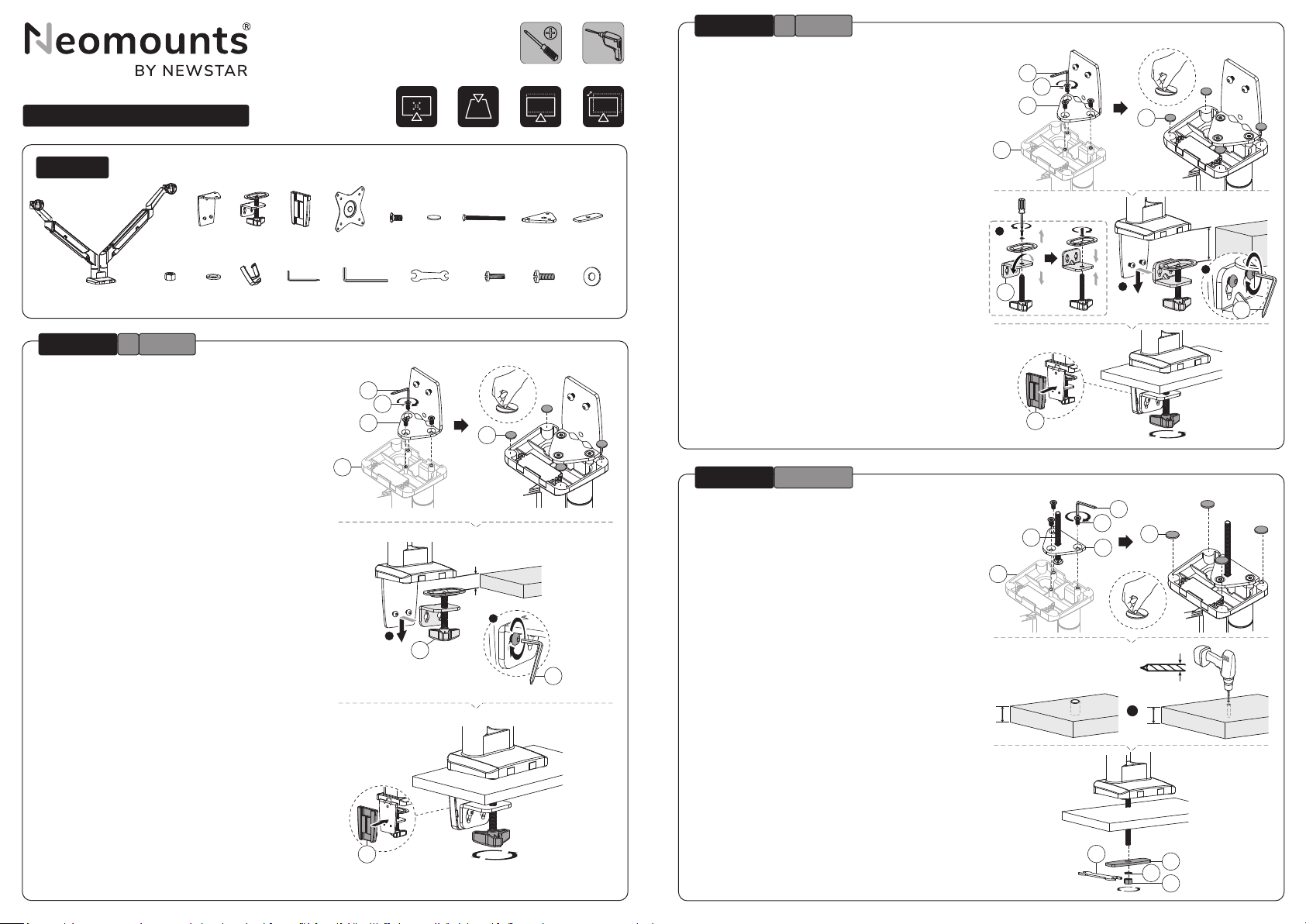

Install the clamp to the desk - for desktop thickness

between 45-85 mm

Installeer de klem aan het bureau - voor bladdikte

45-85 mm

Installieren der Klemme an den Schreibtisch - für

Tischstärken zwischen 45-85 mm

Installez la pince sur le bureau (prévu pour un bureau

d'épaisseur entre 45-85 mm)

Installa il morsetto sulla scrivania - per spessore del

desktop tra 45-85 mm

Instale la abrazadera en el escritorio - para el grosor

del escritorio entre 45-85 mm

Instale a braçadeira na mesa - para espessura de mesa

entre 45-85 mm

Zainstaluj zacisk na biurku - dla grubości pulpitu od

45-85 mm

75x75 -

100x100 mm

1-9 kg |

2,2-19,8 lbs (2x)

STEP 1

Grommet

Install the clamp to the desk - for desktop thickness

between 10-50 mm

Installeer de klem aan het bureau - voor bladdikte

10-50 mm

Installieren der Klemme an den Schreibtisch - für

Tischstärken zwischen 10-50 mm

Installez la pince sur le bureau (prévu pour un bureau

d'épaisseur entre 10-50 mm)

Installa il morsetto sulla scrivania - per spessore del

desktop tra 10-50 mm

Instale la abrazadera en el escritorio - para el grosor

del escritorio entre 10-50 mm

Instale a braçadeira na mesa - para espessura de mesa

entre 10-50 mm

Zainstaluj zacisk na biurku - dla grubości pulpitu od

10-50 mm

Install the grommet through the desk

Installeer de doorvoer in het bureau

Fixierung der Tülle durch den Schreibtisch

Vissez le support à travers le bureau avec la plaque

sous le plateau

Installa l'occhiello attraverso la scrivania

Instale la arandela a través del escritorio

Instale o anel através da mesa

Zainstaluj przelotkę przez biurko

A. (x1) L. (x1) M. (x2)

B. (x1) C. (x1) D. (x1) E. (x2) G. (x4) I. (x1) J. (x1)

10-50mm

10-80mm

Ø10 mm

(Ø3,8")

10-80mm

45-85mm

STEP 1

ClampA

STEP 1

ClampB

26,5-55 cm

0-49 cm

Download manual in English (PDF, 11.25 MB)
