1 - GENERAL INFORMATION

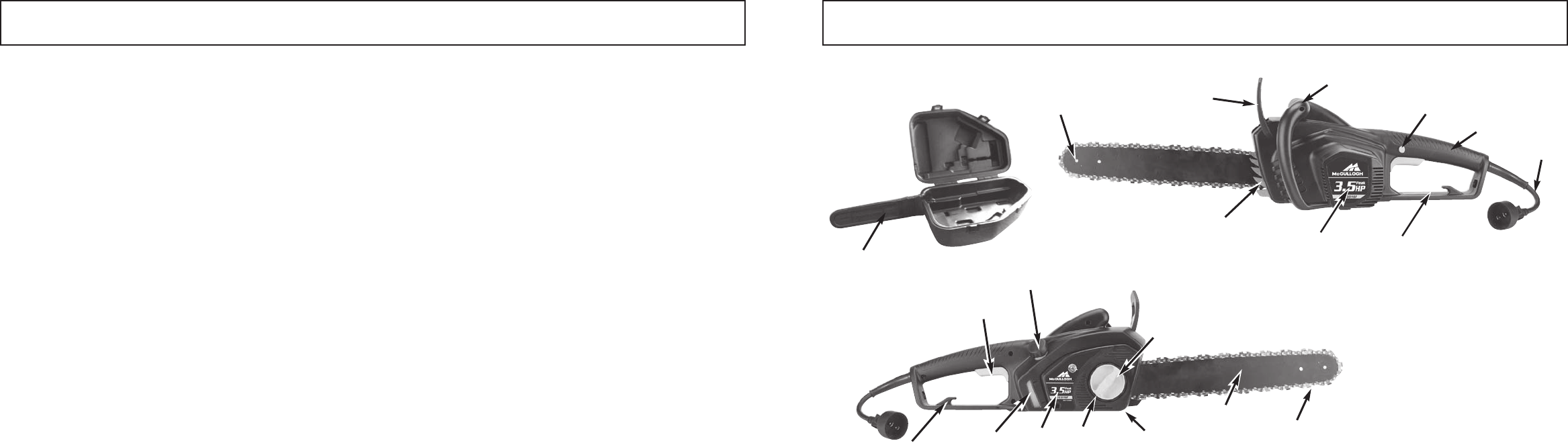

1-1. GENERAL IDENTIFICATION

1. REAR HANDLE

2. OIL TANK CAP

3. TRIGGER START/STOP SWITCH

4. SPROCKET COVER

5. BAR BOLT KNOB

6. CHAIN TENSION RING

7. ELECTRIC MOTOR

8. ELECTRIC CORD

9. CHAIN BRAKE

LEVER /

HAND GUARD

10. LOCK / OFF BUTTON

11. FRONT HANDLE

12. GUIDE BAR

13. SAW CHAIN

14. SPIKES

15. REAR HAND GUARD

16. SPROCKET

17. OIL TANK WINDOW

18. CORD RETAINER

19. CHAIN CATCHER

1-2. SAFETY FEATURES

Numbers preceding the descriptions correspond with the num-

bers on preceding page to help you locate the safety feature.

TRIGGER START / STOP SWITCH stops saw motor

when released.

7 ELECTRIC MOTOR is double insulated for added

safety.

9 CHAIN BRAKE

LEVER / HAND GUARD activates

the chain brake and protects the operator’s left hand

in the event it slips off the front handle while saw is

running.

10 LOCK / OFF BUTTON prevents accidental accelera-

tion of the saw motor. The trigger cannot be squeezed

unless lock/off button is depressed.

12 GUIDE BAR Reduced kickback guide bar reduces the inten-

sity of

kickback.

3 LOW-KICKBACK CHAIN helps significantly reduce

kickback, or the intensity of kickback, due to specially

designed depth gauges and Guard links.

19 CHAIN CATCHER reduces the danger of injury in the

event saw chain breaks or derails during operation.

The catcher is designed to intercept a whipping chain.

PLEASE READ

Dear Customer,

Thank you for purchasing a McCulloch product. With prop-

er operation and maintenance, it will provide you with years

of service.

In order to make the best use of your investment, be CER-

TAIN to familiarize yourself with the contents of the

ENTIRE user manual before attempting to operate and

maintain your unit.

Be sure to carefully follow the step-by-step instructions in

this manual to start, operate and maintain your new prod-

uct.

In the manual there will be the following call-outs: NOTE:,

WARNING / CAUTION and WARRANTY.

A NOTE: is used to convey additional information, to high-

light a particular explanation, or to expand a description.

A WARNING or CAUTION identifies a procedure which, if

not undertaken or if improperly done, can result in serious

personal injury and/or damage to the unit.

The (WARRANTY SYMBOL) serves notice that unless

instructions or procedures are followed, any damage

caused will void the warr

anty and repairs will be at owner’s

expense.

Pay particular attention to the safety precautions. They are

written for your protection and contain important informa-

tion you must know to safely operate your chain saw.

FOR WARRANTY OR SERVICE CONTACT THE NEAR-

EST McCULLOCH AUTHORIZED SERVICE CENTER -

LOCATE YOUR NEAREST SERVICE CENTER BY

CALLING THE TOLL FREE NUMBER IN THIS

MANUAL.

TABLE OF CONTENTS

1 GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . .3

1-1. General Identification

1-2. Safety Features

1-3 Glossary

1-4. Specificatioin

2 SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2-1. Kickback Safety Labels

2-2. Important Safety Instructions

2-3. Other Safety Precautions

2-4. General Safety Precautions for chain saw users

2-5. More About Kickback

2-6. International Symbols

3 ASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . .9

3-1. Introductioin

3-2. Assembly Requirements

3-3. Guide Bar / Saw Chain Installation

3-4. Saw Chain Tension Adjustment

3-5. Filling Oil Tank

3-6. Selecting the Proper Extension Cord for Your Saw Model

4 OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . .12

4-1. To Start Saw

4-2. To Stop Saw

4-3. Chain and Bar Lubrication

4-4.

CHAIN BRAKE

/ Hand Guard

4-5. Extension Cords

5 GENERAL CUTTING INSTRUCTIONS . . . . . . . . . . . . . . . .15

5-1. Felling

5-2. Limbing

5-3. Bucking

5-4. Bucking Using a Sawhorse

6 BAR / CHAIN MAINTENANCE . . . . . . . . . . . . . . . . . . . . . .17

6-1. Guide Bar Maintenance

6-2. Chain Maintenance Instructions

7 BAR / CHAIN MAINTENANCE . . . . . . . . . . . . . . . . . . . . . .19

7-1. Preventive maintenance

7-2. Chain Replacement Information

8 ONE YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . .20

INTRODUCTION

20. CARRY CASE (only for MCC4516FC)
