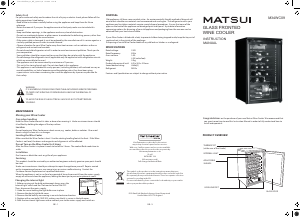

Manual Matsui M34WC09 Wine Cabinet

Need a manual for your Matsui M34WC09 Wine Cabinet? Below you can view and download the PDF manual for free in English. This product currently has 4 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

For your continued safety and to reduce the risk of injury or electric shock, please follow all the

safety precautions listed below.

• Read all the instructions carefully before using the appliance and keep them for future

reference.

• Retain the manual. If you pass the appliance onto a third party make sure to include this

manual.

• Keep ventilation openings, in the appliance enclosure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than

those recommended by the manufacturer.

• If the mains cable is damaged, it must be replaced by the manufacturer of its service agent or a

similarly qualied person in order to avoid a hazard.

• Choose a location for your WIne Cooler away from heat sources such as radiators or res as

refrigerant and vesicant are burnable.

• Do not discard old refrigerators at will in order to avoid environment pollution. Thank you for

your cooperation.

• Young children should be supervised to ensure that they do not play with the appliance.

• Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits

which are accessible to the user.)

• The appliance must be maneuvered by a minimum of 2 persons.

• This unit is for storing liquids only. Do not store food in this appliance.

• This appliance is not intended for use by persons (including children) with reduced sensory or

mental capabilities, or lack of experience and knowledge unless they have been given

supervision or instructions concerning the use of the appliance by a person responsible for

their safety.

Rated voltage: 230V

Rated frequency: 50Hz

Gross volume: 140L

4.95 (cubic feet)

Weight: 29kg

Product dimension h/w/d: 845 x 504 x 514mm

Sound decibel rating: 40db[A]

Refrigerant: R600a

Features and Specication are subject to change without prior notice.

SPECIFICATIONS

This symbol on the product or in the instructions means that your

electrical and electronic equipment should be disposed at the end of its

life separately from your household waste. There are separate collection

systems for recycling in the EU.

For more information, please contact the local authority or your retailer

where you purchased the product.

GB - 1 GB - 5

DSG Retail Ltd. Maylands Avenue Hemel Hempstead

Hertfordshire HP2 7TG England

Visit Partmaster.co.uk today for the easiest

way to buy electrical spares and accessories.

With over 1 million spares and accessories available

we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk

Or call

0870 6001 338

(UK customers only)

Calls charged at National Rate.

Safety First!

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL

TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF

COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS

YOURSELF.

MAINTENANCE

DISPOSAL

Changing the internal light

1. Before carrying out the bulb replacement always press the

Internal Light switch and the Thermostat Control Dial OFF.

Then, disconnect the mains supply.

2. Undo the screw holding the light bulb cover in place.

3. Remove the plastic light bulb cover.

4. Remove the old bulb by unscrewing in an anti-clockwise direction.

5. Replace with a new bulb (10W SES) making sure that it is secure in the bulb cover.

6. Ret the translucent light cover and re-connect your to the mains supply and switch on.

Old appliances still have some residual value. An environmentally friendly method of disposal will

ensure that valuable raw materials can be recovered and used again. The refrigerant used in your

appliance and insulation materials require special disposal procedures. Ensure that none of the

pipes on the back of the appliance are damaged prior to disposal. Up to date information

concerning options for disposing of your old appliance and packaging from the new one can be

obtained from your local council oﬃce.

If your Wine Cooler is tted with a lock, to prevent children being trapped inside, keep the key out of

reach and not in the vicinity of the appliance.

If disposing of an old Wine Cooler break oﬀ any old locks or latches as a safeguard.

GLASS FRONTED

WINE COOLER

INSTRUCTION

MANUAL

M34WC09

PRODUCT OVERVIEW

THERMOSTAT

(at the rear of the Cooler)

INTERNAL LIGHT

LEVELLING FEET

ADJUSTABLE

SHELVES

Moving your Wine Cooler

Care when handling

Hold the Wine Cooler around its sides or base when moving it. Under no circumstances should

it be lifted by holding the edges of the top surface.

Location

Do not locate your Wine Cooler near a heat source, eg. cooker, boiler or radiator. Also avoid

direct sunlight in lean-to’s sun lounges.

Leveling the Wine Cooler

Make sure that the Wine Cooler is level. Use the rotating levelling feet at the front. If the Wine

Cooler is not level, the doors and magnetic seal alignments will be aﬀected.

Do not Turn on the Wine Cooler for 2 Hours

After the Wine Cooler is in place it needs to be left for 2 hours. The coolant uid needs time to

settle.

Installation

Don’t cover or block the vents or grilles of your appliance.

Servicing

This product should be serviced by an authorised engineer and only genuine spare parts should

be used.

Under no circumstances should you attempt to repair the appliance yourself. Repairs carried

out by inexperienced persons may cause injury or serious malfunctioning. Contact the

Customer Service Department or a qualied technician.

When the appliance is not in use for a long period of time, disconnect it from the mains supply,

empty all wine and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Congratulations on the purchase of your new Matsui Wine Cooler. We recommend that

you spent some time to read this Instruction Manual in order to fully understand how to

install and operate it.

GLASS DOOR

Matsui M34WC09_A3_GB_1_090831.pdf 31/8/2009 23:08:40
