Manual

Setting Up The Main Room of Your Tent

1. Unroll the tent and separate the components.

Spread out the tent body. Assemble the tent

poles. Slide one of the long, straight aluminum

ridge poles through one of the mesh pole sleeves

on the roof of the tent. Repeat this step with the

second ridge pole (Fig. 2). Make sure the two

ridge poles bisect each other exactly and are

centered over the top of the tent.

2. Take one of the 4 aluminum leg poles and slide

its elbow end over the end of one of the ridge

poles until it is fully seated (Figure 3). Next,

install a leg pole on the other end of the same

ridge pole. Repeat this step with the second

ridge pole.

4. To prevent wind from moving the tent, stake

out the four corners of the main room using

the black stakeout loops where the poles are

attached (Fig. 6).

Becoming Familiar With Your Tent

Before your first camping outing we recommend

that you set up the tent at home and become

familiar with the parts and set up procedure. Your

storage bag contains the following: (See Fig. 1)

• Tentandfly

• One pole bag containing 2 long, straight

aluminum ridge poles, 4 aluminum leg poles

with pre-bent elbows, 2 long, straight fiberglass

poles and 2 short, straight fiberglass poles.

• Onestakebagwithstakesandguylines

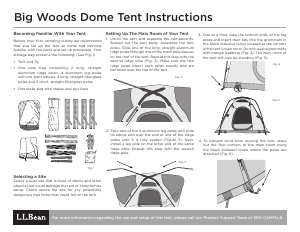

Big Woods Dome Tent Instructions

Fig. 1

For more information regarding the use and setup of this tent, please call our Product Support Team at 800-CAMPLLB.

Fig. 3

Fig. 5

3. Oneatatime,takethebottomendsoftheleg

poles and insert their tips into the grommets in

the black stakeout loops located at the corners

of the tent’s main room. Do not use the grommets

with orange webbing (Fig. 4). The main room of

the tent will now be standing (Fig. 5).

Fig. 4

Selecting a Site

Select a level site that is clear of debris and other

objects that could damage the tent or compromise

setup. Check above the site for any potentially

dangerous tree limbs that could fall on the tent.

Fig. 2
