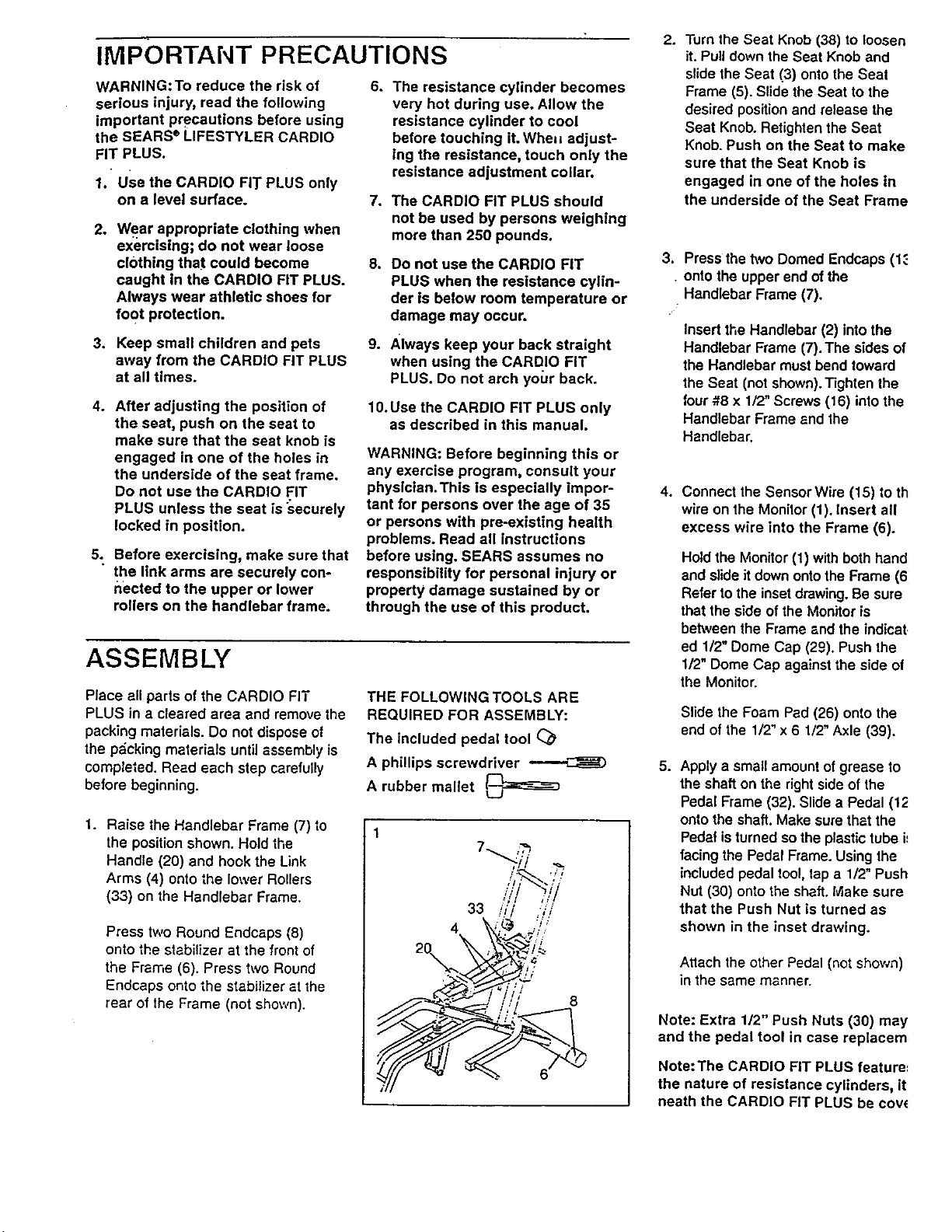

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of

serious injury, read the following

important precautions before using

the SEARS*' LIFESTYLER CARDIO

FIT PLUS.

1. Use the CARDIO FIT PLUS only

on a level surface.

2. Wear appropriate clothing when

e:<emising; do not wear loose

clothing that could become

caught In the CARDIO FIT PLUS.

Always wear athletic shoes for

foot protection.

3. Keep small children and pets

away from the CARDIO FIT PLUS

at all times.

6.

.

.

g.

The resistance cylinder becomes

very hot during use. Allow the

resistance cylinder to cool

before touching it. Wheil adjust-

ing the resistance, touch only the

resistance adjustment collar.

The CARDIO FIT PLUS should

not be used by persons weighing

more than 250 pounds.

Do not use the CARDIO FIT

PLUS when the resistance cylin-

der is below room temperature or

damage may occur.

Always keep your back straight

when using the CARDIO FIT

PLUS. Do not arch yofir back.

4. After adjusting the position of

the seat, push on the seat to

make sure that the seat knob is

engaged in one of the holes in

the underside of the seat frame.

Do not use the CARDIO FIT

PLUS unless the seat is _ecurely

locked in position.

5. Before exercising, make sure that

the link arms are securely con-

nected to the upper or lower

rollers on the handlebar frame.

10.Use the CARDIO FIT PLUS only

as described in this manual.

WARNING: Before beginning this or

any exercise program, consult your

physician. This Is especially impor-

tant for persons over the age of 35

or persons with pre-existing health

problems. Read all instructions

before using. SEARS assumes no

responsibility for personal injury or

property damage sustained by or

through the use of this product.

ASSEMBLY

Place all parts of the CARDIO FIT

PLUS in a cleared area and remove the

packing materials. Do not dispose of

the pdcking materials until assembly is

completed. Read each step carefully

before beginning.

1. Raise the Handlebar Frame (7) to

the position shown. Hold the

Handle (20) and hook the Link

Arms (4) onto the lower Rollers

(33) on the Handlebar Frame.

Press two Round Endcaps (8)

onto the stabilizer at the front of

the Frame (6). Press two Round

Endcaps onto the stabilizer at the

rear of the Frame (not shown).

THE FOLLOWING TOOLS ARE

REQUIRED FOR ASSEMBLY:

The included pedal tool (_

A phillips screwdriver

A rubber mallet !--_}:a=_

L_J

Turn the Seat Knob (38) to loosen

it. Pull down the Seat Knob and

slide the Seat (3) onto the Seat

Frame (5). Slide the Seat to the

desired position and release the

Seat Knob. Retighten the Seat

Knob. Push on the Seat to make

sure that the Seat Knob is

engaged in one of the holes in

the underside of the Seat Frame.

3. Press the hvo Domed Endcaps (13'

• onto the upper end ofthe

Handlebar Frame (7).

Insert the Handlebar (2) into the

Handlebar Frame (7). The sides of

the Handlebar must bend toward

the Seat (not shown). Tighten the

four #8 x 1/2" Screws (16) into the

Handlebar Frame and the

Handlebar.

4.

5.

Connect the Sensor Wire (15) to th{

wire on the Monitor (1). Insert all

excess wire into the Frame (6).

Hold the Monitor (1) with both hands

and slide it down onto the Frame (6)

Refer tothe inset drawing. Be sure

that the side of the Monitor is

behveen the Frame and the indicat-

ed 1/2" Dome Cap (29). Push the

1/2" Dome Cap against the side of

the Monitor.

Slide the Foam Pad (26) onto the

end of the 1/2" X 6 1/2" Axle (39).

Apply a small amount of grease to

the shaft on the right side of the

Pedal Frame (32). Slide a Pedal (12}

onto the shaft. Make sure that the

Pedal is turned so the plastic tube is

facing the Pedal Frame. Using the

included pedal tool, lap a 1/2" Push

Nut (30) onto the shaft. Make sure

that the Push Nut is turned as

shown in the inset drawing.

Attach the other Pedal (not shown)

in the same manner.

Note: Extra 1/2" Push Nuts (30) may

and the pedal tool in case replaceme

Note:The CARDIO FIT PLUS features

the nature of resistance cylinders, it i

neath the CARDIO FIT PLUS be cove
