Manual Kichler 6719NI Dover Lamp

Need a manual for your Kichler 6719NI Dover Lamp? Below you can view and download the PDF manual for free in English. This product currently has 7 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

Date Issued: 05/31/16 IS-6719-US

Estamos aquí para ayudarle 866-558-5706

Horario: Lunes-Viernes 9am a 5pm EST (hora oﬁcial del este)

1) Enrosque la tuerca hexagonal al tubo roscado para que 5

hilos queden expuestos por debajo de la tuerca hexagonal.

Desde parte inferior de la correa de montaje, extremo largo

del hilo de rosca tubo en el oriﬁcio de sujeción hasta que la

tuerca hexagonal toque correa de montaje. Apriete la tuerca

hexagonal contra correa de montaje.

2) Pase la segunda tuerca hexagonal al otro extremo del tubo

roscado. Apriete la tuerca hexagonal con correa de montaje.

3) Acople la correa del montaje a la caja con tornillos de mon-

taje de la correa

4) Instrucciones de conexión a tierra solamente para los

Estados Unidos. (Vea la ilustracion A o B).

A) En las lámparas que tienen el eje, de montaje con un

agujero y dos hoyue los realzados. Enrollar el alambre a

tierra de la caja tomacorriente alrededor del tornillo

verde y pasarlo por el aquiero.

B) En las lámparas con una arandela acopada. Fijar el

alambre a tierra de la caja tomacorriente del ajo de la

arandela acoada y tornillo verde, y paser por el eje de

montaje.

Si la lámpara viene con alambre a tierra. Conecter el alambre

a tierra de la lámpara al alambre a tierra de la caja tomacor-

riente con un conector de alambres (no incluido) espués de

seguir los pasos anteriores. Nunca conectar el alambra a

tierra a los alambres eléctros negro o blanco.

5) Haga les conexiones de los alambres (no se proveen los

connectores.) La tabla de referencia de abajo indica las con-

exiones correctas y los alambres correspondientes.

6) Accesorio empuje a la pared con cuidado pasando de rosca

tubo a través del oriﬁcio en el pabellón. Asegúrese de que

todos los cables están dentro de pabellón y no quedar apre-

tados entre la pared y la cubierta del aparato.

7) Perilla de bloqueo de tornillo en el tubo roscado. Apriete la

perilla de bloqueo para ﬁjar la luminaria a la pared.

8) Coloque el vidrio hacia abajo sobre el zócalo. Pasar agujero

en vidrio sobre zócalo y el resto en vaso.

9) Hilo de rosca anillo de toma en toma. Apriete el anillo de

conector para asegurar el vidrio en su lugar. (No apriete

demasiado.)

10) Inserte recomienda bombilla (s). (No incluido)

PRECAUCIÓN – RIESGO DE DESCARGA ELÉCTRICA –

Desconecte la electricidad en el panel principal del interruptor

automático o caja principal de fusibles antes de comenzar y

durante la instalación.

ARANDELA

CONCAVA

TIERRA DE LA

CAJA DE SALIDA

TORNILLO DE TIERRA,

VERDE

DEPRESIONES

TIERRA

ARTEFACTO

CONECTOR DE ALAMBRE

TIERRA DE LA

CAJA DE SALIDA

TORNILLO DE TIERRA,

VERDE

TIERRA

ARTEFACTO

Conectar el alambre de

suministro negro o rojo al

Conectar el alambre de

suministro blanco al

Negro Blanco

*Cordon paralelo (redondo y liso)

*Cordon paralelo (cuadrado y estriado)

Claro, marrón, amarillio o negro

sin hebra identificadora

Claro, marrón, amarillio o negro

con hebra identificadora

Alambre aislado (diferente del verde)

con conductor de cobre

Alambre aislado (diferente del

verde) con conductor de plata

*Nota: Cuando se utiliza alambre paralelo

(SPT I y SPT II). El alambre neutro es de forma

cuadrada o estriada y el otro alambre será de

forma redonda o lisa. (Vea la ilustracíón).

Hilo Neutral

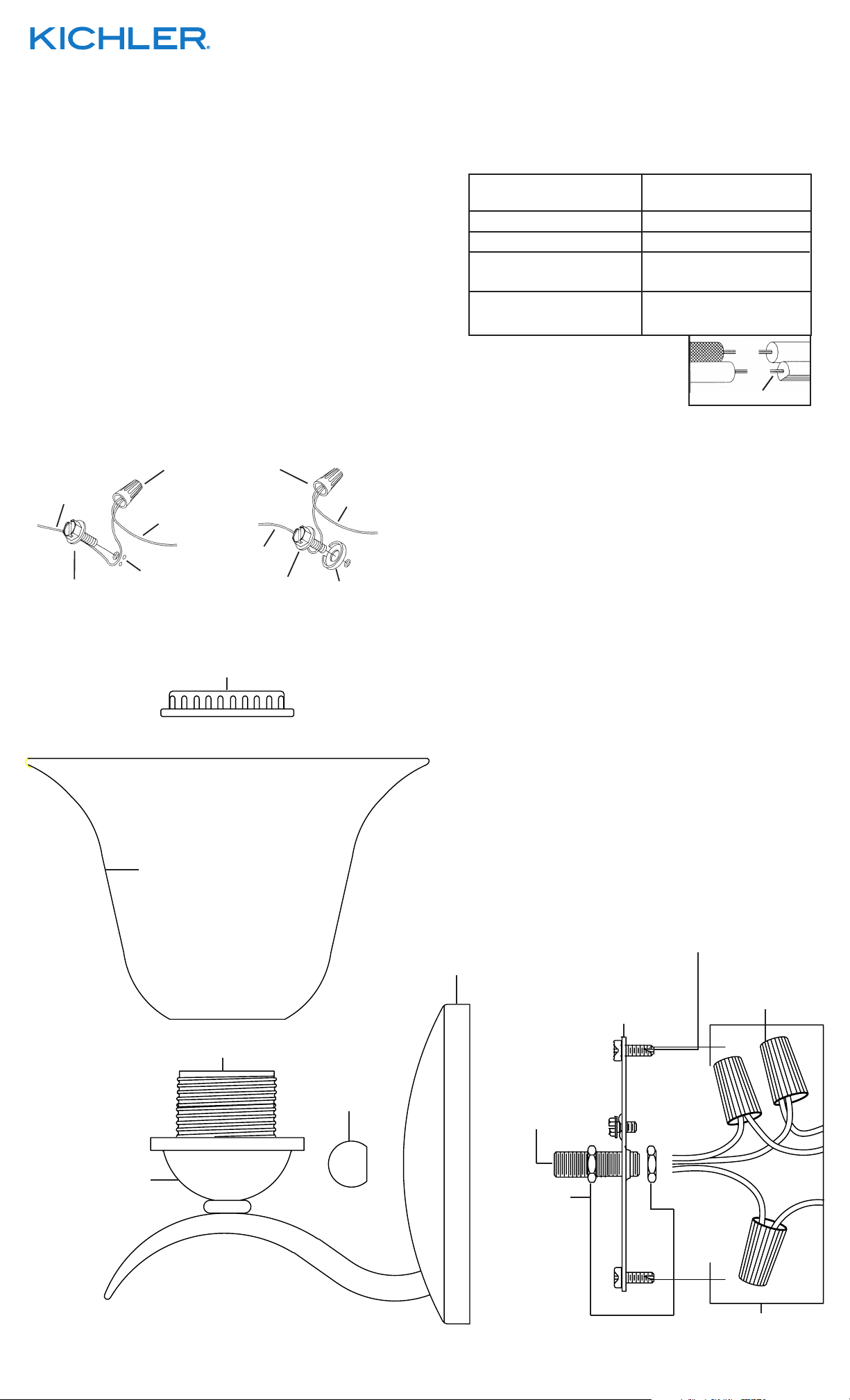

ANILLO DEL

PORTALÁMPARAS

VIDRIO

PORTALÁMPARAS

ZÓCALO TAZA

PERILLA DE

SUJECIÓN

ESCUDETE

ABRAZADERA

DE MONTAJE

TUBO ROSCADO

TUERCA

HEXAGONAL

TORNILLO DE MONTAJE

DE LA ABRAZADERA

CONECTORES

DE ALAMBRE

CAJA DE SALIDA

Download manual in English (PDF, 0.19 MB)
