Manual

1) Rotate arms until in line with center of fixture body. Arms should

tighten as they are turned. If they do not, remove finial and bot-

tom of fixture body tighten hexnuts for loose arms and

reassemble.

2) Slip holes in scrolls over studs at top and bottom of fixture.

Secure in place with ball knobs.

3) Turn off power.

4) Take threaded pipe from parts bag and screw into screw collar

loop a minimum of 6 mm (1/4”). Lock into place with hexnut.

5) Run another hexnut down threaded pipe almost touching first

hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread faced

into outlet box. Threaded pipe must protrude out the back of

mounting strap. Connect mounting strap to outlet box.

6) Unscrew the threaded ring from screw collar loop. Take canopy

and pass over screw collar loop. Approximately one half of the

screw collar loop exterior threads should be exposed. Adjust

screw collar loop by turning assembly up or down in mounting

strap. Remove canopy.

7) After desired position is found, tighten top hexnut up against

the bottom of the mounting strap.

8) Slip canopy over screw collar loop and thread on threaded ring.

Attach chain (with fixture connected) to bottom of screw collar

loop. Unscrew threaded ring, let canopy and threaded ring slip

down.

9) Weave electrical wire and ground wire through chain links no

more than 3 inches apart. Pass wire through threaded ring,

canopy, screw collar loop, threaded pipe and into outlet box.

10) Connect fixture ground wire to outlet box ground wire with wire

connector. (Not provided.) Never connect ground wire to black

or white power supply wire.

11) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

12) Raise canopy to ceiling.

13) Secure canopy in place by tightening threaded ring onto screw

collar loop.

1) Faire pivoter les bras jusqu’à ce qu’ils s’alignent avec le centre

du luminaire. Les bras doivent se resserrer au fur et à mesure

qu’ils sont tournés. S’ils ne se resserrent pas, enlever l’orne-

ment et la partie inférieure du luminaire, serrer les écrous

hexagonaux des bras desserrés et ré-assembler.

2) Faire passer les trous des spirales sur les goujons en haut et

en bas du luminaire. Bloquer avec les boules.

3) Couper le courant électrique.

4) Visser le tube fileté (qui se trouve avec les pièces détachées)

dans le collier-écrou, sur une longueur minimum de 6 mm (1/4

po). Fixer avec un écrou hexagonal.

5) Visser un second écrou hexagonal de manière à ce qu’il touche

presque le premier. Visser ensuite le tube fileté sur la patte de

fixation, en le faisant dépasser et en dirigeant la partie filetée

des vis vers la boîte de jonction. Connecter la patte de fixation

à la boîte de jonction.

6) Dévisser la bague filetée du collier-écrou. Passer le cache sur

le collier-écrou. Environ la moitié de filetage extérieur de celui-

ci doit être apparent. Fixer le collier-écrou en faisant pivoter

l’assemblage vers le haut ou vers le bas. Enlever le cache.

7) La bonne position étant trouvée, serrer l’écrou hexagonal

supérieur contre le partie inférieur de la patte de fixation.

8) Glisser le cache sur le collier-écrou et enfiler sur la bague

filetée. Attacher la chaine (avec l’assemblage connecté) au bas

du collier-écrou. Dévisser la bague filetée et laisser glisser le

cache et la bague filetée.

9) Entrelacer le fil électrque et le fil de mise á la terre et faire pass-

er le tout dans les anneaux de la chaîne en espaçant au max-

imum de 3 po. Passer le fil dans la bague filetée, le cache, le

collier-écrou, le tube fileté et la boîte de jonction.

10) Avec l’attache-fil (qui n’est pas fourni), connecter le fil de mise

á la terre au fil d’alimentation noir ou á celui qui est blanc.

11) Connecter les fils (connecteurs non fournis). Se reporter au

tableau ci-dessous pour faire les connexions.

12) Placer le cache au plafond.

13) Fixer le cache en serrant la bague filetée sur le collier-écrou.

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black White

*Parallel cord (round & smooth) *Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

Neutral Wire

Connecter le fil noir ou

rouge de la boite

Connecter le fil blanc de la boîte

A Noir A Blanc

*Au cordon parallèle (rond et lisse)

*Au cordon parallele (à angles droits el strié)

Au bransparent, doré, marron, ou

noir sans fil distinctif

Au transparent, doré, marron, ou

noir avec un til distinctif

Fil isolé (sauf fil vert) avec

conducteur en cuivre

Fil isolé (sauf fil vert) avec

conducteur en argent

*Remarque: Avec emploi d’un fil paralléle

(SPT I et SPT II). Le fil neutre est á angles

droits ou strié et l’autre fil doit étre rond ou

lisse (Voir le schéma).

Fil Neutre

Date Issued: 10/31/03 IS-2031-CB

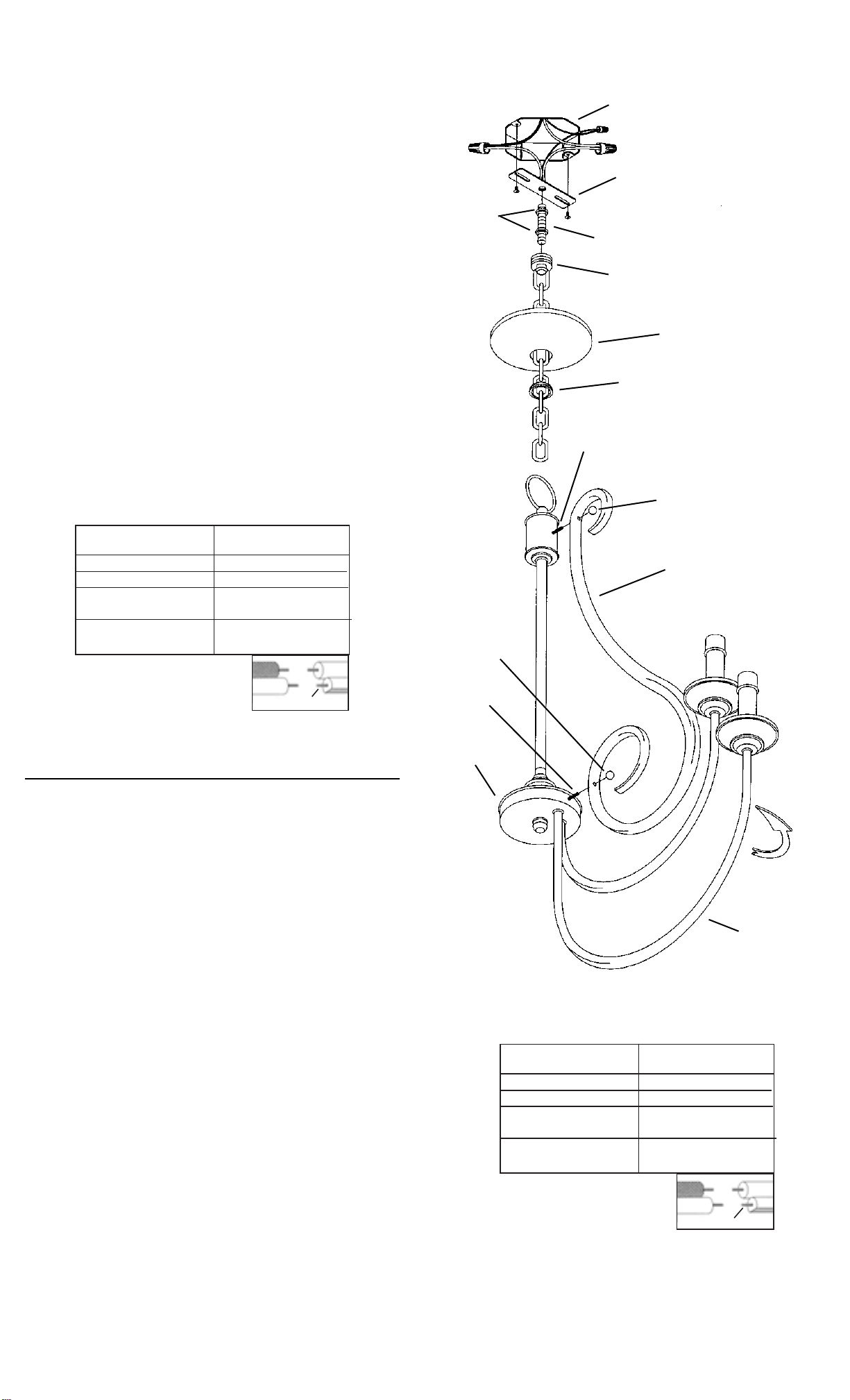

OUTLET BOX

BOITE DE JONCTION

MOUNTING STRAP

COLLIER DE FIXATION

THREADED PIPE

TUBE FILETE

THREADED RING

BAGUE-FILETE

SCREW COLLAR LOOP

COLLIER-ECROUS

HEXNUT

ECROU

HEXAGONAL

CANOPY

ABAT JOUR

ARM

BRAS

FIXTURE

BODY

LUMINAIRE

STUD

GOUJON

BALL KNOB

BOULE

SCROLL

SPIRALE

STUD

GOUJON

BALL KNOB

BOULE
