Manual

WARNING:

• This ﬁxture is intended for installation in accordance with the

National Electric Code (NEC) and all local code speciﬁcations.

• Supply wires are not intended for use through or concealed

behind walls, ﬂoors, or ceilings.

DIMMING: This LED ﬁxture is compatible with electronic low

voltage dimmers only.

CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main fuse

box before starting and during the installation.

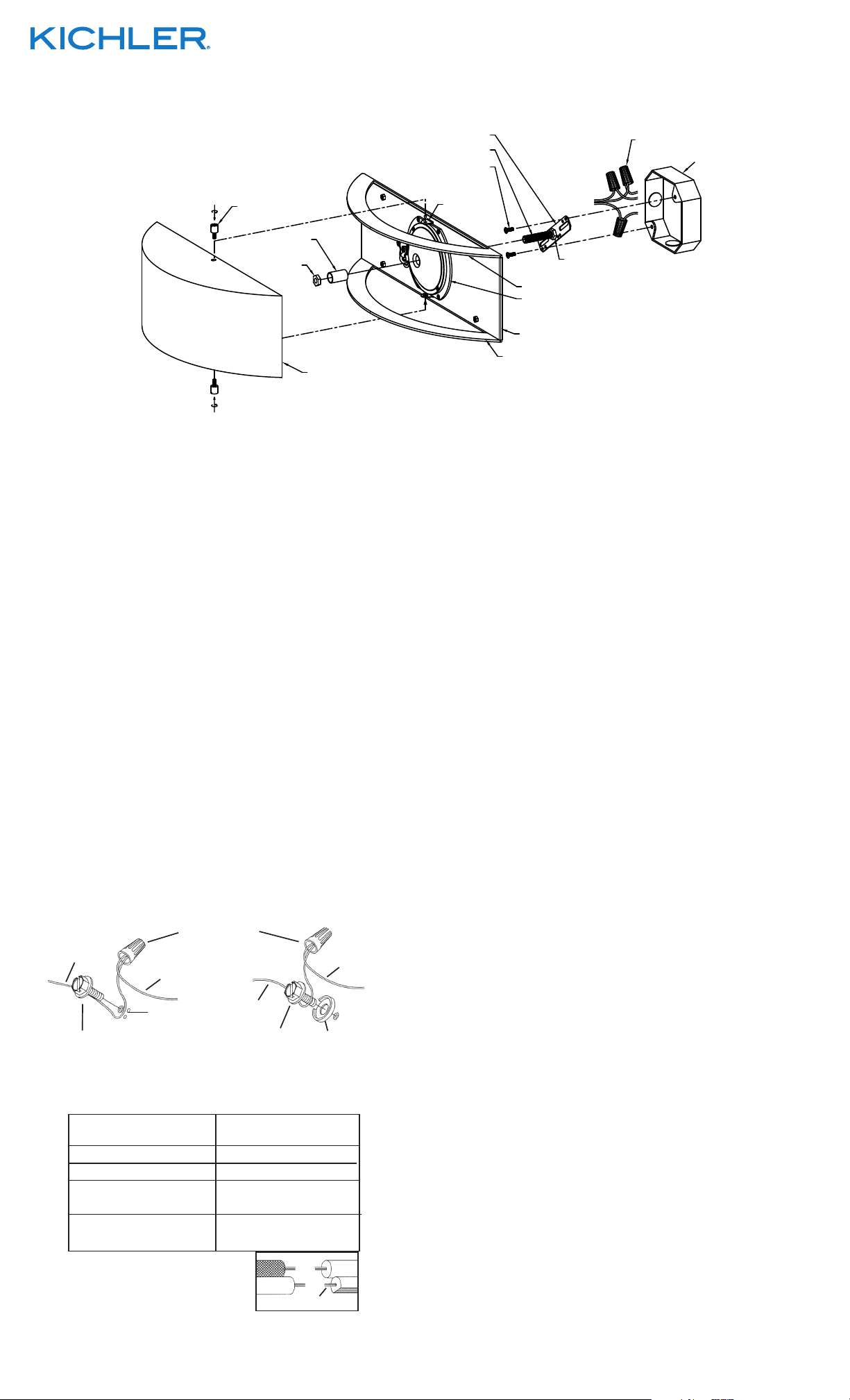

1) Screw end of threaded pipe into hole in center of mounting

strap so approximately 1/4” of thread is exposed on the

extruded side of mounting strap.

2) Thread hexnut onto the shorter end of the threaded pipe.

Tighten to secure.

3) Connect the mounting strap to the outlet box with the strap

mounting screws.

4) Grounding instructions: (See Illus. A or B).

A) On ﬁxtures where mounting strap is provided with a

hole and two raised dimples. Wrap ground wire from

outlet box around green ground screw, and thread into

hole.

B) On ﬁxtures where a cupped washer is provided. Attach

ground wire from outlet box under cupped washer and

green ground screw, and thread into mounting strap.

If ﬁxture is provided with ground wire. Connect ﬁxture

ground wire to outlet box ground wire with wire connector

(not provided.) after following the above steps. Never connect

ground wire to black or white power supply wires.

5) Make wire connections (connectors not provided). Reference

chart below for correct connections and wire accordingly.

6) Carefully push wire connections back into outlet box making

sure all connections remain secure.

7) Push ﬁxture to wall, pass the center hole of the ﬁxture over

the threaded pipe on the mounting strap.

8) Slip the spacer onto the threaded pipe and into the center of

the module hole.

9) Slip lockwasher over threaded pipe. Thread hexnut onto the

threaded pipe. Tighten to secure.

10) Place diffuser over LED Module and against the plate. Fit

diffuser in between top and bottom plates. Top and bottom

brackets on faceplate should ﬁt inside diffuser.

11) Thread top thumbscrew down into hole in shade and into

bracket. Thread bottom thumbscrew up into hole in shade

and into bracket.

12) Tighten thumbscrews to secure diffuser in place. (DO NOT

over tighten.)

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

Neutral Wire

Date Issued: 01/04/17 IS-10630LED-US

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLET BOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLET BOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

SEE OTHER SIDE FOR SPANISH TRANSLATIONS.

VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause un-

desired operation.

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable pro-

tection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the in-

structions, may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

STRAP MOUNTING SCREW(S)

THREADED PIPE

MOUNTING STRAP

OUTLET BOX

SPACER

HEXNUT

LED MODULE

COVER

FACEPLATE

WIRE

CONNECTORS

HEXNUT

LOCK-UP KNOBS

DIFFUSER

BOTTOM PLATE

TOP PLATE

BRACKET

Download manual in English (PDF, 0.33 MB)
