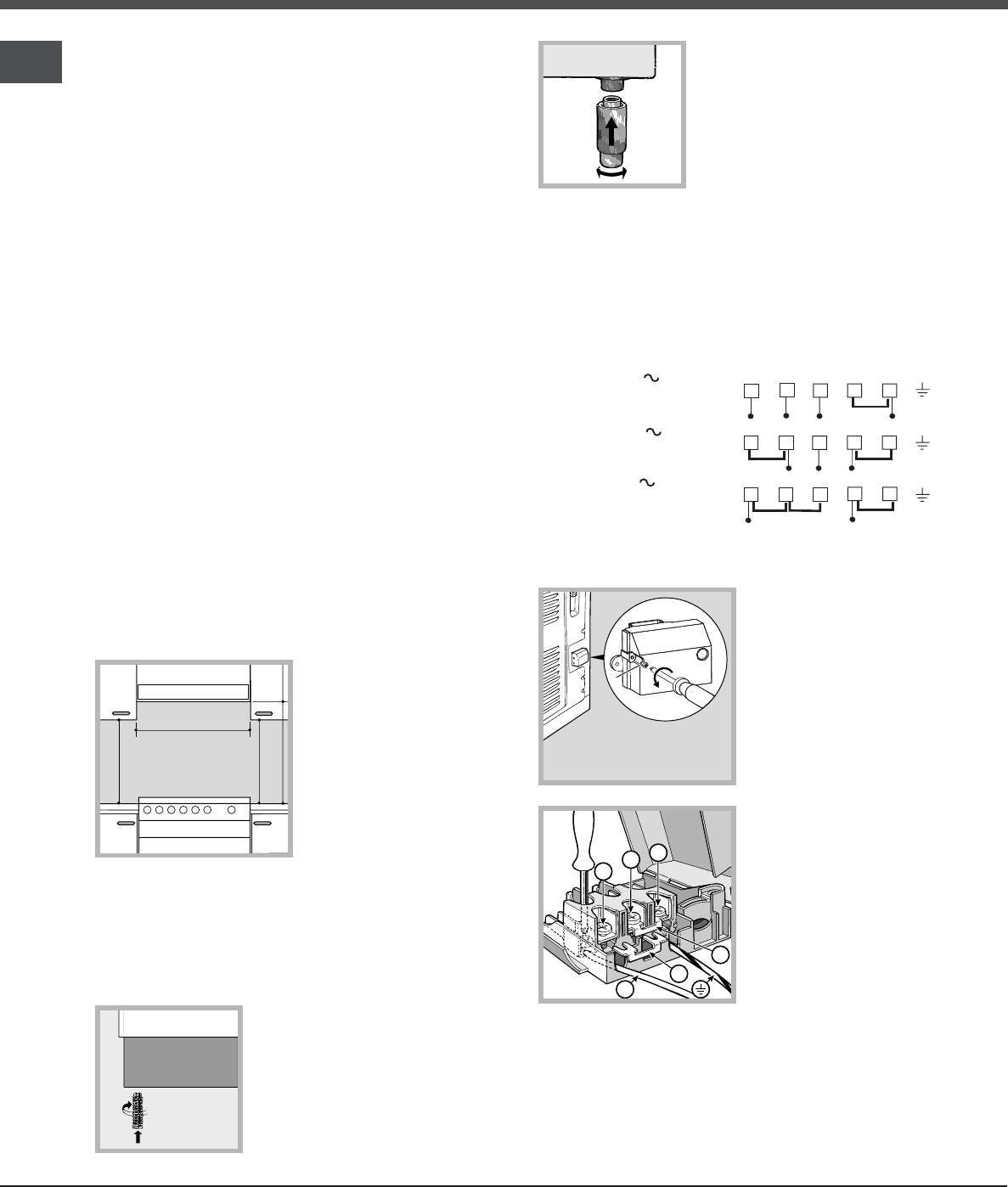

FR
! Conservez ce mode d’emploi pour pouvoir le consulter
à tout moment. En cas de vente, de cession ou de
déménagement, veillez à ce qu’il suive l’appareil.
! Lisez attentivement les instructions : elles
contiennent des conseils importants sur l’installation,
l’utilisation et la sécurité de votre appareil
! L’installation de l’appareil doit être effectuée par un
professionnel du secteur conformément aux
instructions du fabricant.
! N’importe quelle opération de réglage ou
d’entretien doit être effectuée après avoir débranché
la prise de l’appareil.
Positionnement et nivellement
! L’appareil peut être installé à côté de meubles dont
la hauteur ne dépasse pas celle du plan de cuisson.
! Assurez-vous que le mur en contact avec la paroi
arrière de l’appareil est réalisé en matériel ignifuge
résistant à la chaleur (T 90°C).
Pour une installation correcte :
installez cet appareil dans une cuisine, une salle à
manger ou un studio (jamais dans une salle de bains);
si le plan de cuisson de la cuisinière dépasse le
plan de travail des meubles, ces derniers doivent
être placés à au moins 200 mm de l’appareil.
• si la cuisinière est
installée sous un élément
suspendu, il faut que ce
dernier soit placé à au
moins 420 mm de
distance du plan.
Il faut prévoir une distance
de 700 mm si les
éléments suspendus sont
inflammables (
voir figure
);
ne placez pas de rideaux derrière ou sur les côtés
de la cuisinière à moins de 200 mm de distance.
pour l’installation de hottes, conformez-vous aux
instructions de leur notice d’emploi.
Nivellement
Pour mettre l’appareil bien à
plat, vissez les pieds de
réglage fournis aux
emplacements prévus aux
coins à la base de la
cuisinière (
voir figure
).
Montage des pieds* fournis
avec l’appareil par
encastrement sous la base.
Raccordement électrique
Montage du câble d’alimentation
Le cordon doit être dimensionné en fonction du type
de raccordement électrique utilisé selon le schéma
de connexion suivant:
Pour monter le câble d’alimentation :
1. Dévissez la vis V du
bornier et tirez le
couvercle pour l’ouvrir
(
voir figure
).
2. positionnez le
cavalier de
raccordement A (
voir
figure
) selon le schéma
de connexion illustré
plus haut. Le bornier
est prévu pour
raccordement
monophasé 230 V : les
bornes 1, 2 et 3 sont
reliées les unes aux autres; le pont 4-5 se trouve
dans la partie inférieure du bornier.
3. positionnez les fils N et
66
66
6
conformément au
dessin (
voir figure
) et effectuez le raccordement en
serrant à fond les vis des bornes.
4. positionnez les fils restants sur les bornes 1-2-3
et serrez les vis.
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600
Min. mm.
420
Min. mm.
V
1
2
3
N
A
B
Installation
1 2
3
4
5
12345
1
2
3
4
5
R
S
T
N
R
S
N
R
N
400 3N
H05RR-F 5x2.5 CEI-UNEL 35363
400V 2N
H05RR-F 4x4 CEI-UNEL 35363
230V
H05RR-F 3x4 CEI-UNEL 35363
H05VV-F 3x4 CEI-UNEL 35746
H05VV-F 4x4 CEI-UNEL 35746
H05VV-F 5x2.5 CEI-UNEL 35746
