Manual Hotpoint BI WDHG 75148 UK N Washer-Dryer

Manual

EN

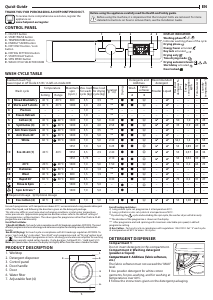

Quick Guide

THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.

To receive more comprehensive assistance, register the

appliance on

www.hotpoint.eu/register

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more

detailed instructions on how to remove them, see the Installation Guide.

CONTROL PANEL

WASH CYCLE TABLE

1. ON/OFF button

2. START/PAUSE button

3. TEMPERATURE button

4. ENERGY SAVER button

5. DRY ONLY button / Lock

button

6. DRYING SETTINGS button

7. START DELAY button

8. SPIN SPEED button

9. WASH CYCLE SELECTOR KNOB

1 2

5

6

7

8

4

3

9

DISPLAY INDICATORS

Washing phase

Indicates washing phase of the cycle

Drying phase

Energy Saver activated

Key lock activated

Drying only

Time drying mode

Drying automatic levels

Start delay activated

Door locked

PRODUCT DESCRIPTION

1. Worktop

2. Detergent dispenser

3. Control panel

4. Door handle

5. Door

6. Water lter

7. Adjustable feet (4)

DETERGENT DISPENSER

Compartment 1:

Do not insert detergent in this compartment.

Compartment 2: Washing detergent

(powder or liquid)

Compartment 3: Additives (fabric softeners,

etc.)

The fabric softener must not exceed the “MAX”

level.

! Use powder detergent for white cotton

garments, for pre-washing, and for washing at

temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

1

2

3

1.

3.

2.

5.

4.

6.

7.

For all testing institutes:

2) Long cotton cycle: set programme 5 at temperature 40°C.

3) Long synthetics cycle: set cycle 6 at a temperature of 40°C.

* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.

** The duration of the programme is shown on the display.

*** After programme end and spinning with maximum selectable spin speed, in default

programme setting.

4) Eco Cotton -

Test wash cycle in compliance with regulations 1061/2010. Set “

5” wash cycle

at a temperature of 60°C to access this cycles.

For wash programmes with temperatures above 50°C, we recommend using powder detergent

rather than liquid, and following the directions given on the detergent package.

This data may dier in your home due to changing conditions in inlet water temperature,

water pressure etc. Approximate programme duration values refer to the default setting of

the programmes, without options.

The values given for programmes other than the Eco 40-60

programme are indicative only.

For all Test Institutes

1)

Eco 40-60 (Wash)- Test wash cycle in compliance with EU Ecodesign regulation 2019/2014. The most

efficient programme in terms of energy and water consumption for washing normally soiled cotton

laundry.

Eco 40-60 (Drying)-

Test wash cycle in compliance with EU Ecodesign regulation

2019/2014

. To

access “wash and dry” cycle select “Eco 40-60” wash programme and set “Drying” option leval

to

“ ”.

The most ecient programme in terms of energy and water consumption for washing

and drying normally soiled cotton laundry. (Cycle duration: Full load 9:20 / Hald load: 5:10)

Note: spin speed values shown on the display can slightly differs from the values stated in the table.

Maximum load 7 kg

Power input in o mode 0.5 W / in left-on mode 8 W

Detergents and

Additives

Recommended

detergent

Residual

dampness %

(***)

Energy

consumption

kWh

Total water lt

Laundry

temperature °C

Wash cycle

Temperature

Maximum

spin

(r.p.m.)

Max. load

for wash

cycle (kg)

Max. load

for drying

cycle (kg)

Duration

(h : m)

Drying

Wash

Fabric

softener

Powder Liquid

Setting Range 2 3

1 Mixed Wash&Dry 40 °C 40 °C 800 3,5 3,5 **

  

–



– – – –

2 Shirts and T-shirts 40 °C 40 °C 1000 2,0 2,0 **

  

–



– – – –

3 Pre Iron – – – 1,0 – ** – – – – – – – – –

4 Steam Refresh – – – 1,0 – ** – – – – – – – – –

5 Cotton (2) 40 °C

- 60 °C

1400 7,0 5,0 3:40

    

50 1,0 75 45

6 Synthetics (3) 40 °C

- 60 °C

1200 4,0 4,0 2:55

    

35 0,9 60 43

7 Anti Stain Quick 40 °C

- 40 °C

1200 3,5 3,5 **

  

–



– – – –

8 Anti Stain 40° 40 °C

- 40 °C

1400 7,0 5,0 **

  

–



– – – –

9 White 60 °C

- 90 °C

1400 7,0 5,0 2:30

    

52,1 1,4 75 55

10 Eco 40-60 (1) 40 °C 40°C

1351 7,0 5,0 3:25

    

53 0,89 47 35

1351 3,5 2,5 2:40

    

53 0,57 45 34

1351 1,75 – 2:10

    

53 0,52 39 33

11 20°C 20 °C

- 20 °C

1400 7,0 5,0 1:50

  

–



52 0,2 64 22

12 Delicates 30 °C

- 30 °C

0 1,0 1,0 **

  

–



– – – –

13 Wool 40 °C

- 40 °C

800 1,5 1,5 **

  

–



– – – –

14 Rapid 30‘ 30 °C

- 30 °C

800 3,5 - 0:30 –

 

–



73 0,2 31 27

Rinse & Spin – – 1400 7,0 5,0 –



–



– – – – – –

Spin & Drain * – – 1400 7,0 5,0 –



– – – – – – – –

 Required dosage  Optional dosage

5 Eco Cotton (4) 60 °C 60 °C 1400 7,0 5,0 3:35

    

53 1,00 50 –
