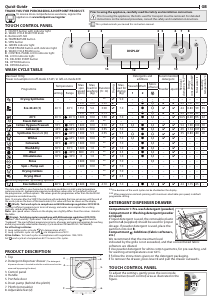

Manual Hotpoint AQD1072D 697 EU/B N Washer-Dryer

Manual

Wool - Woolmark Apparel Care - Green:

the wool wash cycle of this machine has been approved

by The Woolmark Company for the washing of wool

garments labelled as “hand wash” provided that the

garments are washed according to the instructions issued

by the manufacturer of this washing machine. Follow the

garment care label for drying and other laundry

instructions. (M1135)

Ultradelicates: use programme to wash very delicate garments

having strasses or sequins.

We recommend turning the garments inside out before washing and

placing small items into the special bag for washing delicates. Use liquid

detergent on delicate garments for best results.

When selecting an exclusively time-based drying function, a drying cycle

is performed at the end of the wash cycle that is particularly delicate,

thanks to light handling and appropriate temperature control of the

water jet.

The recommended durations are:

1 kg of synthetic garments --> 160 min

1 kg of synthetic and cotton garments --> 180 min

1 kg of cotton garments --> 180 min

The degree of dryness depends on the load and fabric composition.

To wash Silk garments and Curtains (these should be folded and placed

inside the bag provided), select cycle and then option ; the

machine will end the cycle while the laundry is soaking and the

indicator light will ash. To drain the water so that the laundry may be

removed, press the START/PAUSE button or the button.

Rinse: designed for rinsing and spinning.

Spin + Pump out: designed to spin and drain the water.

Drying Cottons: cycle studied for driyng cotton fabrics.

Drying Wool: cycle studied for driyng wool fabrics.

Eco Cotton: For washing normally soiled cotton garments at 60°C.

FIRSTTIME USE

Once the appliance has been installed, and before it is used for the rst

time, run a wash cycle with detergent and no laundry, by setting the

cycle.

DAILY USE

Prepare the laundry by following the suggestions appearing under the

“TIPS AND SUGGESTIONS” section.

- Press the button. All the indicator lights will illuminate for 1 second

and the text AQUALTIS will appear on the display; the indicator light

corresponding to the button will then remain lit in a constant manner

and the START/PAUSE indicator light will ash.

- Open the door. Load the laundry while making sure not to exceed the

maximum load quantity indicated in the wash cycle table.

- Pull out the detergent dispenser drawer and pour the detergent into the

relevant compartments, as described in the “DETERGENT DISPENSER

DRAWER” section.

- Close the door.

- Turn the PROGRAMME KNOB left or right, until the required programme

has been selected; the name of the programme will appear on the

display. A temperature and spin speed is set for each programme; these

may be adjusted. The cycle duration will also appear on the display.

- Modify the temperature and/or spin speed: the machine automatically

displays the maximum temperature and spin speed values set for the

selected cycle, or the most recently-used settings if they are compatible

with the selected cycle. The temperature can be decreased by pressing

the button, until the cold wash “OFF” setting is reached. The spin

speed may be progressively reduced by pressing the button, until it is

completely excluded “OFF”. If these buttons are pressed again, the

maximum values are restored.

- Select the desired options.

- Press the START/PAUSE button to start the wash cycle; the relative

indicator light will light up steady green and the door will lock (

symbol on).

OPENING THE DOOR, IF NECESSARY

Once a cycle starts, the symbol turns on to signal that the door cannot

be opened. While a wash cycle is running, the door remains locked. To

open the door while a cycle is under way, for example, to add or remove

garments, press the START/PAUSE button to pause the cycle; the

indicator light will ash amber. If the symbol is not lit, the door may be

opened. Press the START/PAUSE button again to continue the cycle.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washer-dryer

using the START/PAUSE button (the relative indicator light will ash

amber), then select the desired cycle and press the START/PAUSE

button again.

! To cancel a cycle that has already begun, press and hold the ON/OFF

button. The cycle will be stopped and the machine will switch o.

AT THE END OF THE WASH CYCLE

This is indicated by the illuminated text END. The porthole door may be

opened immediately. If the START/PAUSE indicator light is ashing,

press the button to end the cycle. Open the door, unload the laundry and

switch o the machine. If you do not press ON/OFF button, the

washer-dryer will switch o automatically after about 10 minutes.

CHANGE LANGUAGES

The rst time the machine is switched on, the rst language will ash on

the display. The “ “, “OK” and “V” symbols will appear on the display, in

line with the 3 buttons on the right-hand side. The languages change

automatically every 3”; alternatively, they can be changed by pressing the

buttons next to the “ “ and “V” symbols. Use the “OK” button to conrm

the language, which will be set after 2”. If no buttons are pressed, the

automatic language change will begin again after 30”.

To change the language, switch the machine on and o again; in the 30”

time period after it has been switched o, press and hold the temperature

+spin +delayed start buttons simultaneously for 5’’. A short

sound alert will be emitted and the set language will ash on the display.

Press the buttons next to the “ “ and “V” symbols to change the language.

Use the button next to the “OK” symbol to conrm the language, which

will be set after 2”. If no buttons are pressed, the language set previously

will be displayed after 30”. Switch on the machine.

WASH CYCLE PHASE ICONS

These illuminate to indicate the progress of the wash cycle (Wash –

Rinse – Spin/ Drain – Drying ). The text lights up when the

cycle is complete.

GREEN INDICATOR LIGHT

The icon lights up when, after altering the washing parameters, an

energy saving of at least 10% is made. Furthermore, before the machine

enters “Standby” mode, the icon will light up for a few seconds; when the

machine is switched o the estimated energy saving will be around the

80% mark.

BUTTONS M1M2

press and hold one of the buttons to store a cycle with your own set

preferences in the memory of the machine. To recall a previously-stored

cycle, press the corresponding button.

CONTROL PANEL LOCK

To activate or deactivate the control panel lock, press and hold the

button for approximately 2 seconds. when the indicator light is

illuminated, the control panel is locked (apart from the ON/OFF button).

This means it is possible to prevent wash cycles from being modied

accidentally, especially where there are children in the home.

LOCK INDICATOR LIGHT

When lit, the symbol indicates that the door is locked. To prevent any

damage, wait until the symbol turns o before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE

button; if the symbol is o, the door can be opened.

WHASH CYCLES

Follow the instructions on the symbols of the garment’s wash

care label. The value indicated in the symbol is the maximum

recommended temperature for washing the garment.

Drying Synthetics: cycle studied for driyng Synthetics fabrics.

: For washing normally soiled cotton garments declared to be

washable at 40 °C or 60 °C, together in the same cycle. This is the standard

cotton programme and the most ecient in terms of water and energy

consumption.

: For washing lightly soiled cotton garments, at a temperature of 20 °C.

Steam Refresh: This programme refreshes garments by removing bad

odours and relaxing the bres (2 kg, roughly 3 items). Insert dry items

only (that are not dirty) and select programme . The garments will be

damp once the cycle is completed, so we recommend hanging them to

dry. The programme makes ironing easier. Garments will be a little

damp at the end of the cycle and can be worn after a few minutes.

Moreover, with the “Steam Perfume” laundry balls, your favourite perfume

can be added to your laundry. Place a few drops of perfume on the sponge

contained inside the laundry ball, close it and insert it into the drum

together with the laundry. Then launch the specic programme . At the

end of the cycle, garments will be relaxed and fragrant

! The indicator light for the option will switch on when this cycle is selected.

! Not recommended for wool or silk garments.

! Do not add too much perfume to the sponge in order to avoid it dripping.

Cotton Hygiene Prewash: extremely soiled whites fabrics.

Cotton: Normally soiled cottons .

Synthetics Resistant: Suitable for washing moderately soiled garments

made of synthetic bres (e.g. polyester, polyacrylic, viscose, etc.) or mixed

synthetic-cotton bres.

Whites: use this cycle to wash white clothes. The programme is

designed to maintain the brightness of white clothes over time.

If the drying function is selected, a drying cycle automatically activates at

the end of the wash cycle that resembles open-air drying, with the added

advantages of preserving garments from yellowing due to sunlight

exposure and preventing loss of whiteness caused by the possible

presence of dust in the air. Drying cycles can only be selected on a level

basis.

Coloureds: use this cycle to wash bright coloured clothes. The

programme is designed to maintain bright colours over time.

Wash&Dry: select programme for washing and drying lightly soiled

garments (Cotton and Synthetic) in a short time. This cycle may be used

to wash and dry a laundry load of up to 1 kg in just 45 minutes. To

achieve optimum results, use liquid detergent and pre-treat cus, collars

and stains.
