6

ADAPTING THE HOB TO DIFFERENT TYPES OF GAS

To adapt the Hob for use with different types of gas, carry out the following instructions:

— remove the grids and burners

— insert on hexagonal spanner (7 mm) into the burner support (Fig. 6)

— unscrew the injector and replace it with one suitable for the gas to be used (see

Table of gas consumption)

1/2 GAS

CONICAL

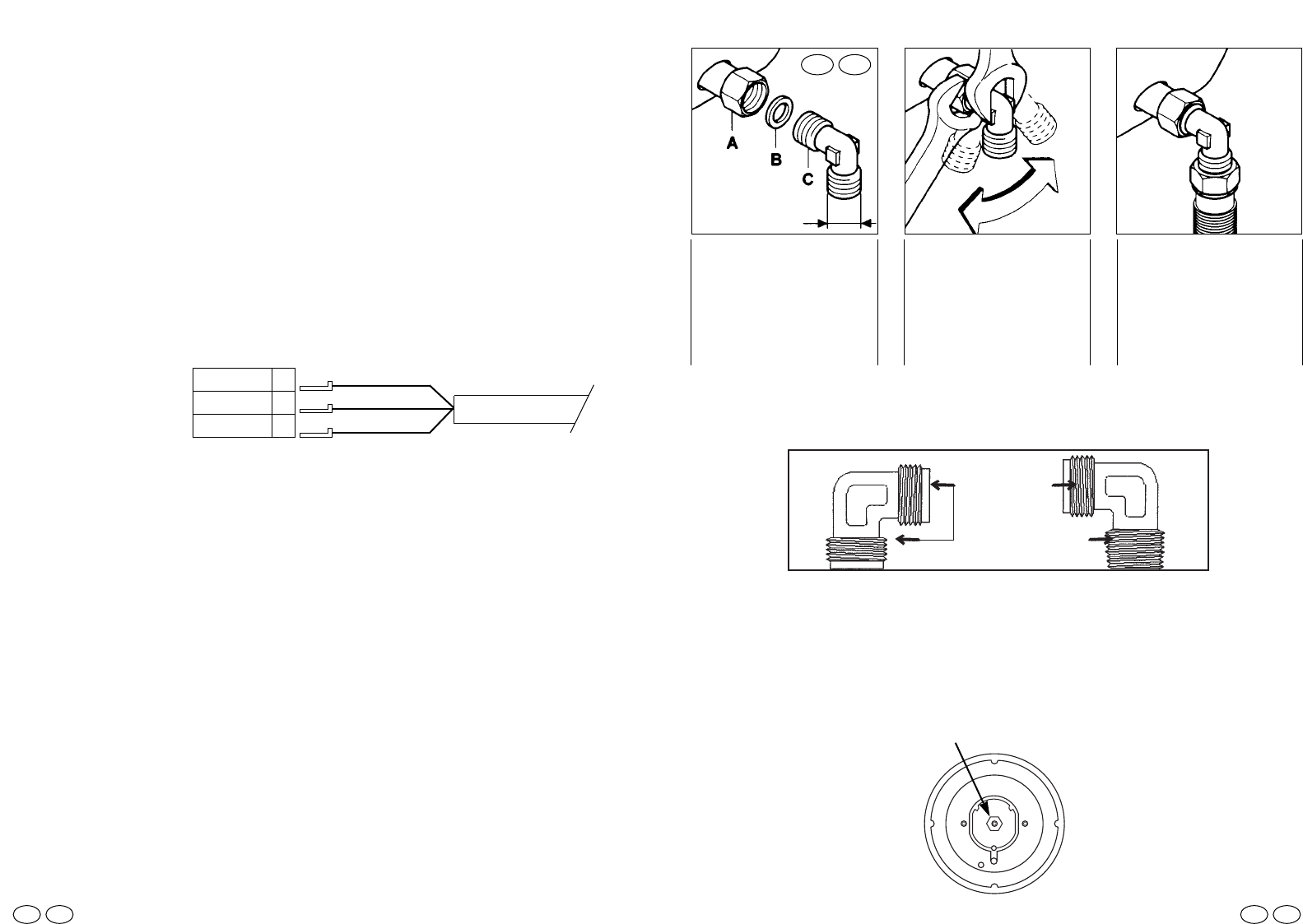

A) As illustrated, as-

semble parts in se-

quence:

A) fixed pipe

B) washer

C) Elbow fitting with

tapered thred

connection

2) Tighten the joints

with the Spanners,

remembering to twist

the pipes into position.

3) Attach fitting C to

mains gas supply us-

ing rigid copper pipe

or flexible steel pipe.

IEGB

For some models a conic link is furnished to outfit for the installation in the countries whe-

re this type of link is obligatory; in the following figures it is pointed out how to recognize

the different types of links. In every case the cylindrical part of the link has to be connec-

ted to the hob.

To prevent any potential damage to the hob please carry out the installation following

this sequence:

GB IE

Fig. 6

INJECTOR

CYLINDRICAL

CONICAL

Fig. 5

5

LIVE L

EARTH

NEUTRAL N

MAINS

SUPPLY

BROWN WIRE

GREEN/YELLOW WIRE

BLUE WIRE

POWER

CABLE

These instructions are for Fitters qualified for installation of equipment in line with the

relevant national standard. All work must be carried out with the electricity supply dis-

connected.

The rating plate on the hob shows the type of gas with which it is designed to be used.

It is possible to use other types of gas after carrying out some simple modifications.

(See the instructions in the following paragraphs).

connection to the mains gas supply or gas cylinder should be carried out according to

the relevant national standards, after having checked that it is regulated for the type of

gas with which it will be supplied. If it is not correctly regulated follow the instructions in

the paragraph entitlet «Adaption for different types of gas». For liquid gas (cylinder

gas) use pressure regulators which comply with the relevant national standards.

N.B.: for safe operation, economic use of energy and to ensure greater durability

of the

appliance, make sure that the supply pressure conforms with the values shown

in the

table on page 44.

Use only pipes, washers and sealing washers which comply with the relevant national

standards.

When connecting the hob to the gas supply via use of flexible hoses please ensure

that the maximum distance covered by the hose does not exceed 2 metres.

N.B.: carry out a final check for leaks on the pipework using a soapy solution.

Never use a flame. Also, make sure that the flexible pipe cannot come into con-

tact with a moving part of

the cabinet (eg, a drawer) and that it is not situa

ted

where it could be damaged.

GAS CONNECTION

ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the

supply and input voltage are suitable.

Before connection, check the earthing system.

By Law, this appliance must be earthed. If this regulation is not complied with, the

Manufacturer will not be responsible for any damage caused to persons or property.

If a plug is not already attached, fit a plug appropriate to the load indicated on the rating

plate. The earth wire is coloured yellow/green. The plug should always be accessible.

Where the Hob is connected direct to the electricity supply, a circuit breaker must be

fitted with at least a 3 mm contact spacing when in the open position.

If the power supply cord is damaged this is to be replaced by a qualified engineer so as

to prevent any potential risk.

The earth wire ( green a yellow coloured) must be at least 10 mm longer than the live

and neutral wires.

The section of the cable used must be of the correct size in relation to the absorbed

power of the hob.

Please check rating plate for the power details and ensure that the power supply cord

is of the type H05RR-F, H05VV-F, H05V2V2-F.

GBIE
