4

ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the mains supply must

be made by a competant electrician, ensuring that all current regulations concerning

such installations are observed.

The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp

plug/socket is not suitable. A double pole switch must be provided and the circuit must

have appropriate fuse protection. Further details of the power requirement of the in-

dividual product will be found in the users’ instruction and on the appliance rating plate.

In

the case of built-in product you are advised, should you wish to use a longer cable than

the one supplied, that a suitably rated heat resistant type must be used.

The wiring must be connected to the mains supply as follows:

CONNECT TO SPUR TERMINAL

Green & Yellow Wire Earth Connection

Blue Wire Neutral Connection

Brown Wire Live Connection

Note: We do not advocate the use of earth leakage devices with electric cooking applian-

ces installed to spur points because of the «nuisance tripping» which may occur. You are

again reminded that the appliance must be correctly earthed, the manufacturer decli-

nes any responsibility for any event occurring as a result of incorrect electrical installation.

Declaration of compliance: This equipment, in the parts intended to come into con-

tact with food, complies with the regulations laid down in EEC directives 89/109.

This appliance complies with directive 89/336/EEC, 73/23/EEC, 90/396/EEC and

the following changes.

GAS CONNECTION (FOR U.K. ONLY)

The labels on the Hob indicate the types of gas that can be used.

It is possible to use other types of gas after carrying out simple modifications.

Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the

appliance and call the engineer directly. Do not search for a leak with a naked flame.

GB IE

3

FOR U.K. ONLY

INSTRUCTIONS FOR THE INSTALLER

The following information is intended for qualified and competant persons only who will

ensure that your appliance is installed correctly. All current legislation concerning the in-

stallation of Gas appliances must be observed by the installer*

* For the U.K. only - By law, the gas installation/commissioning must be carried out by a

«Corgi», registered installer.

This appliance must be installed in accordance with applicable regulations and should only be

used in well-ventilated locations. Before using this appliance carefully study the instruction book.

Suitable location

A gas-powered cooking appliance produces heat and humidity in the area in which it is

installed. For this reason you should ensure good ventilation either by keeping all natu-

ral air passages open or by installing an extractor hood with an exhaust flue. Intensive

and prolonged use of the appliance may require extra ventilation, such the opening of a

window or an increase in speed of the electric fan, if you have one.

If a hood cannot be installed, an electric fan should be fitted to an outside wall or win-

dow as long there are air vents in the area.

The electric fan should be able to carry out a complete change of air in the kitchen 3-5

times every hour. The installer should follow the relavant national standards.

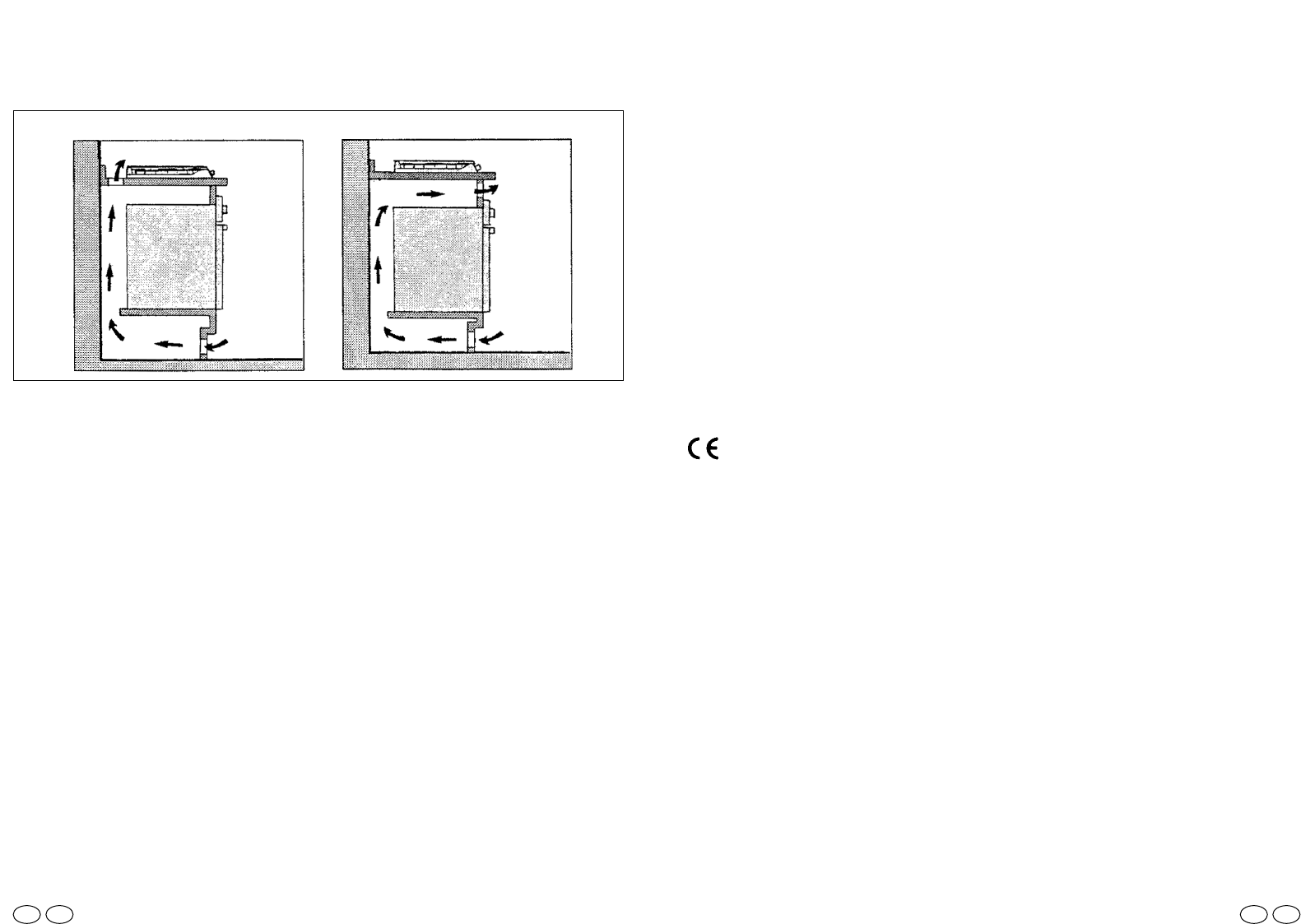

If a hob of 60 cm is fitted above an oven which is not equipped with fan cooling system

it is recommended that openings are created within the built in furniture to ensure cor-

rect air circulation.

The size of these openings must be at least 300 cm

2

and placed as shown in fig. 4.

When a 75 cm hob is fitted over a built in oven, the latter must be fan cooled.

FIG. 4

60 Cm

2

240 Cm

2

120 Cm

2

180 Cm

2

GBIE
