Manual Homelite HGCA3000 Generator

Need a manual for your Homelite HGCA3000 Generator? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

OFF

MARCHE

ARRÊT

A - Spark plug (bougie, bujía)

B - Spark plug cap (capuchon de bougie, tapa de

la bujía)

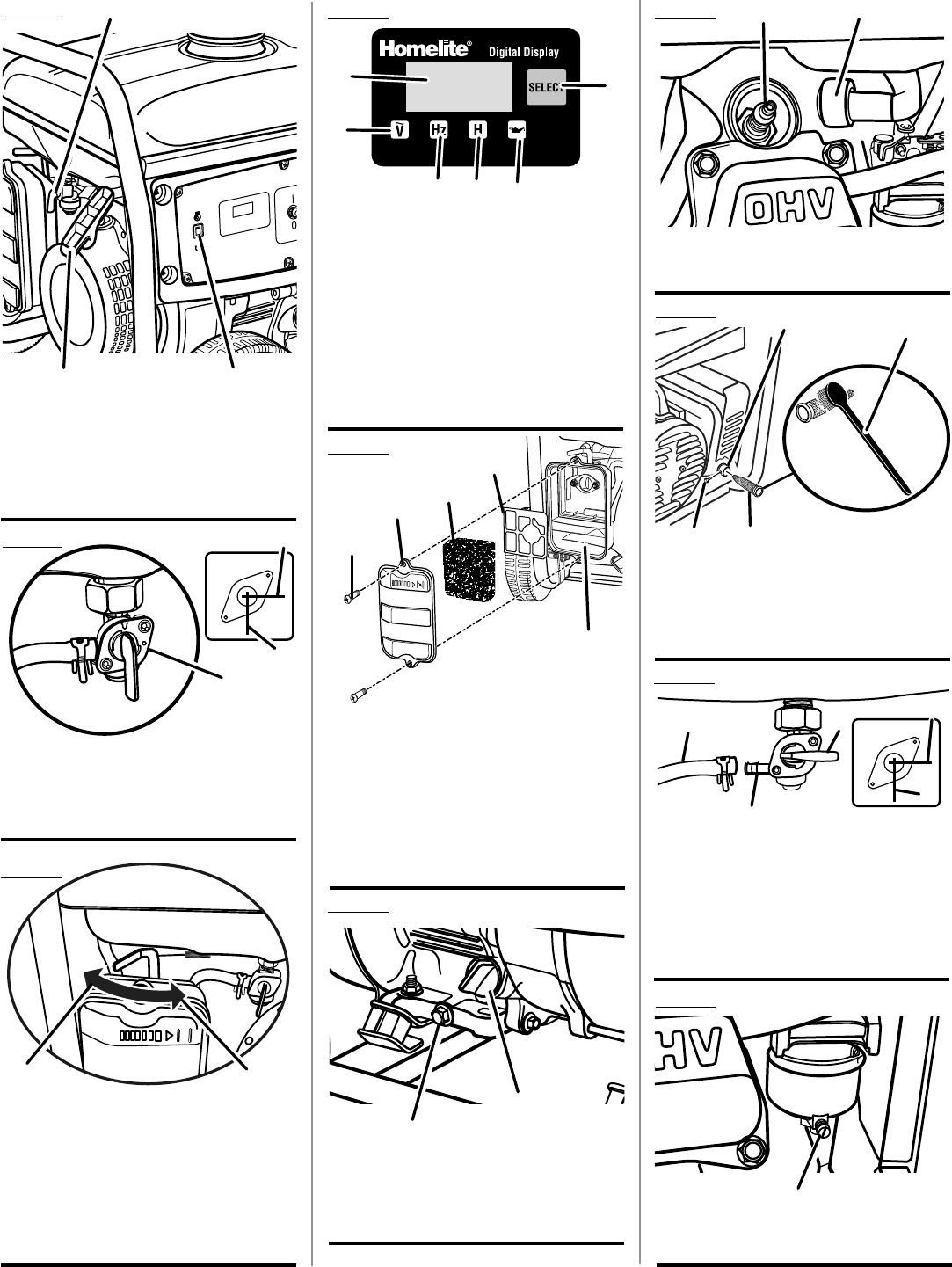

Fig. 18

A - Fuel line (conduite de carburant, conducto de

combustible)

B - Fuel valve (robinet de carburant, válvula de

combustible)

C - Petcock (robinet de carburant, llave de

purga)

D - Off (arret, apagado)

E - On (marche, encendido)

A - Carburetor drain screw (vis de vidange

du carburateur, tornillo de drenaje del

carburador)

Fig. 21

A - Fuel valve (robinet de carburant, interruptor

del motor)

B - Engine switch (contacteur du moteur, válvula

de combustible)

C - Recoil starter grip (poignée de démarreur à

rappel, mango del arrancador retráctil)

Fig. 16

A - Screw (vis, tornillo)

B - Air filter cover (couvercle du filtre à air, tapa del

filtro de aire)

C - Filter element (élément du filtre, elemento

de filtro)

D - Filter gasket (garniture de filtre, junta del

filtro)

E - Air filter unit (unité de filtre à air, unidad del

filtro de aire)

Fig. 17

A - Oil drainage bolt (vis de vidange d’huile,

perno de drenaje de aceite)

B - Oil cap/dipstick (bouchon/ jauge d’huile,

tapa de relleno de aceite/varilla medidora de

aceite)

OFF

MARCHE

ARRET

Fig. 12

Fig. 20

A - Fuel valve (robinet de carburant, válvula de

combustible)

B - Off (arret, apagado)

C - On (marche, encendido)

Fig. 14

A - Move choke lever left to run (pousser gauche

le levier d’étranglement pour la marche,

desplace izquierda la palanca del anegador

para poner en marcha)

B - Move choke lever right to start (tirer droite

le levier d’étranglement pour démarrer,

desplace derecha de la palanca del anegador

para arrancar)

Fig. 13

Fig. 15

A - Digital display (afficheur numérique, pantalla

digital)

B - AC voltage indicator (indicateur de tension

c.a., indicador de voltaje de corr. alt.)

C - Frequency indicator (indicateur de fréquence,

indicador de frecuencia)

D - Hour indicator (indicateur d’heures de

fonctionnement, indicador de tiempo)

E - Low lubricant alert (alerte de bas niveau de

lubrifiant, alerta de poco lubricante)

F - Select button (bouton de sélection, botón de

selección)

Fig. 19

A - Screw (vis, tornillo)

B - Muffler outlet (sortie du silencieux,

recubrimiento del silenciador)

C - Spark arrestor (pare-étincelles, parachispas)

D - Wire brush (brosse métallique, cepillo de

alambre)

Download manual in English (PDF, 8.03 MB)
