Manual Electrolux ER1522P Refrigerator

Manual

33

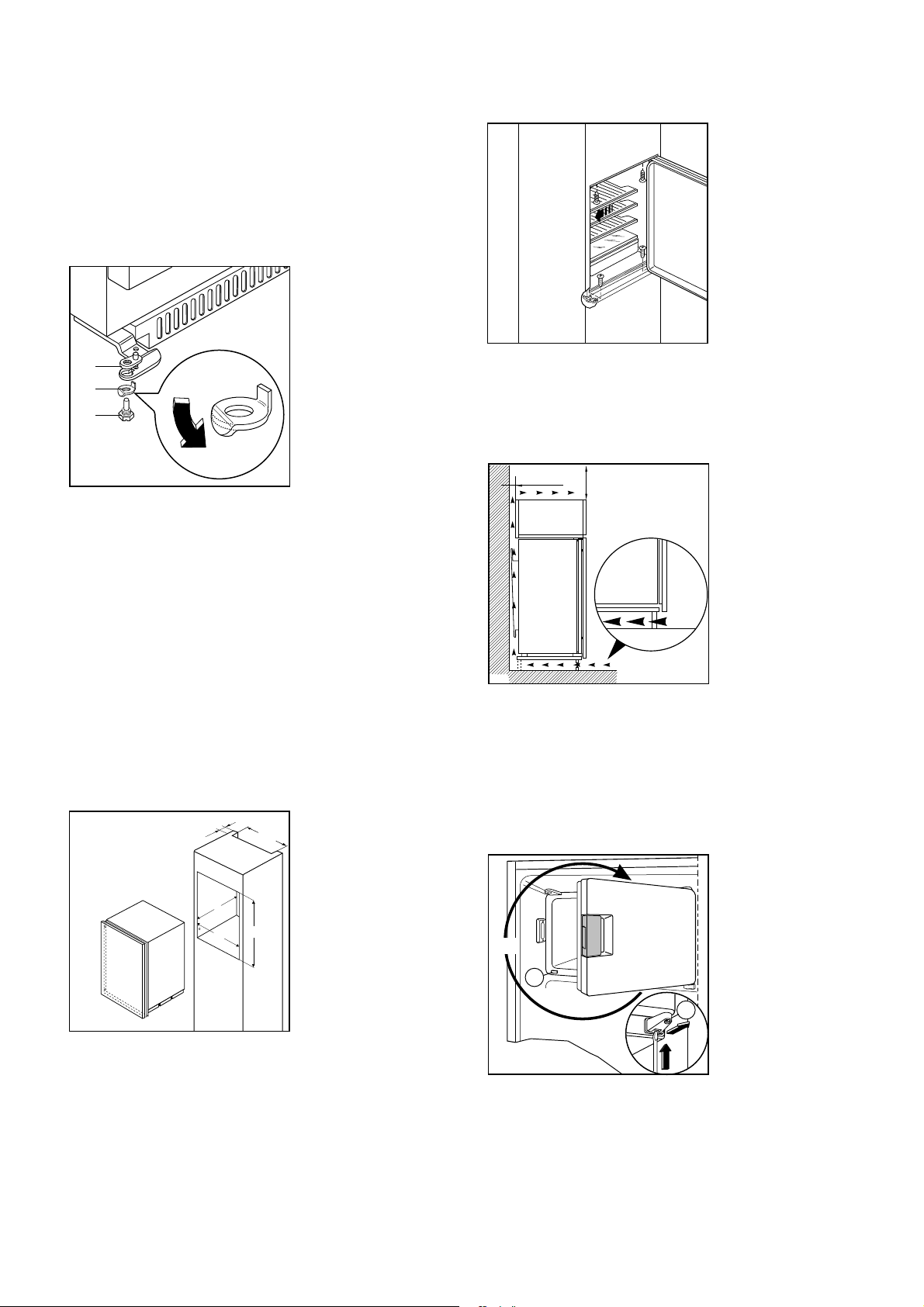

Left hand door opening

Remove the upper right screw and pivot. Straighten

the safety washer (4) of the lower right hinge. Remove

the screw (5) and the pivot (6) (Fig. 3). For safety rea-

sons bend the washer located under the left hinge

(Fig. 4), by using a tool (for ex. a screwdriver). Remove

the right door stop hinge (3-Fig. 3).

Fig. 4

Fitting the handle

Holes for fitting the handle on the opposite side are

provided, with fixing screws already in place.

Building-in

Recess dimensions

Height 880 mm

Depth 550 mm

Width 560 mm

The appliance’s door has been locked in position

for transport by means of pins on both sides.

According to the door opening direction, remove

relevant pins at the top and at the bottom.

Fig. 5

Air is taken in

through the ventila-

tion grille at the bot-

tom of the appli-

ance, but an air

outlet “gap”, meas-

uring 50 mm deep

by 540 mm wide

(Fig. 5), must be

provided in the rear

of the kitchen unit.

This outlet gap must also be kept clear between the

top of the unit and the ceiling.

6

5

D563

4

D240

P

H

L

50

540

Fig. 6

Slide the refrigera-

tor into the unit re-

cess and fit the

screws into the top

bracket (Fig. 6) and

into the bottom

hinge (Fig. 6).

For safety reasons, minimum ventilation must be as

shown in the Fig. 7.

Attention: keep ventilation openings clear of ob-

struction.

Fig. 7

Inner door reversal

(Only for model ER 1522 P)

Using a screwdriver release bracket (1) by pressing on

the internal spring (Fig. 8) and withdraw it from its seat

together with the door;

remove plug (2) and fit it in the hole left open on the

opposite side;

Fig. 8

turn the door

through 180°, re-

move the bracket

(1) and refit it on the

opposite side.

Refit the door and

insert the top pin

and bottom bracket

(1), pushing it into

place.

To ensure correct

storage of food, the

door is fitted with a simple spring device which holds

it in the open position until it is properly closed.

D585

50 mm

min.

cm

2

200

200 cm

2

min.

D526

PR140

1

2

180°
