Eastron DCM230 User Manual

Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 83698882 Fax: 0086-573-83698883

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com

- 2 -

Introduction

Eastron DCM230 series DC energy meters are designed for measuring and monitoring in DC systems. The din rail DC

energy meters can measure of important DC parameters: Village,. current, power and energy etc. It also support bi-

directional measurement with pulse output. All data in the meter are accessible via RS485 using Modbus RTU. The

meter has two versions working with AC or DC power supply. Input voltage range up to 300, 600, 1000V DC, and

current inputs are flexible with DC shunt and current sensors. The multi-tariff version has a RTC equipped inside, it

can provides multi-tariff information and monthly records.

PART 1 Specification

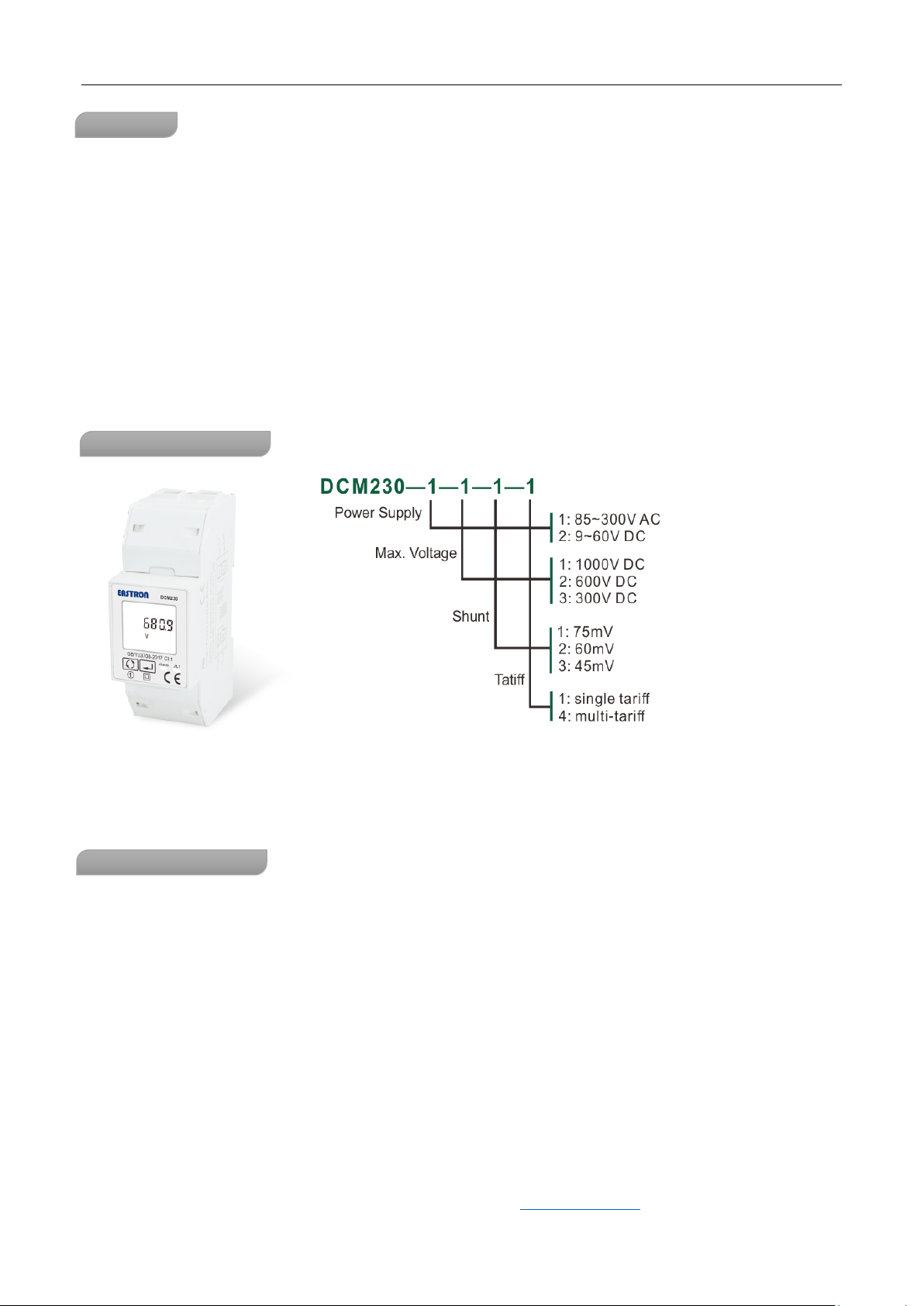

Model list

General Specifications

Voltage DC Input 5~300V DC, 5~600V DC, 5~1000V DC

Auxiliary Supply 85~300V AC (DCM230-1)

or 9-60V DC (DCM230-2)

DC Shunt Input 75mV (default)

60mV, 45mV (optional)

Current Range 0~2000A

Power consumption ≤ 2W / 5VA

AC voltage withstand 4400V/ 1min

Impulse voltage withstand 6.4kV - 1.2/50µS waveform

Pulse output 1, 10, 100, 1000imp/kWh (default)

Pulse duration 60, 100 (default), 200mS

Pulse output indicate Total kWh/ import kWh/ export kWh
