1. COMMISSIONING THE BOILER

To light the boiler correctly, proceed as follows:

• Check that the system pressure is correct (section 7);

• Power the boiler;

• Open the gas tap (yellow, positioned under the boiler);

• Select the required heating mode (section 1.2).

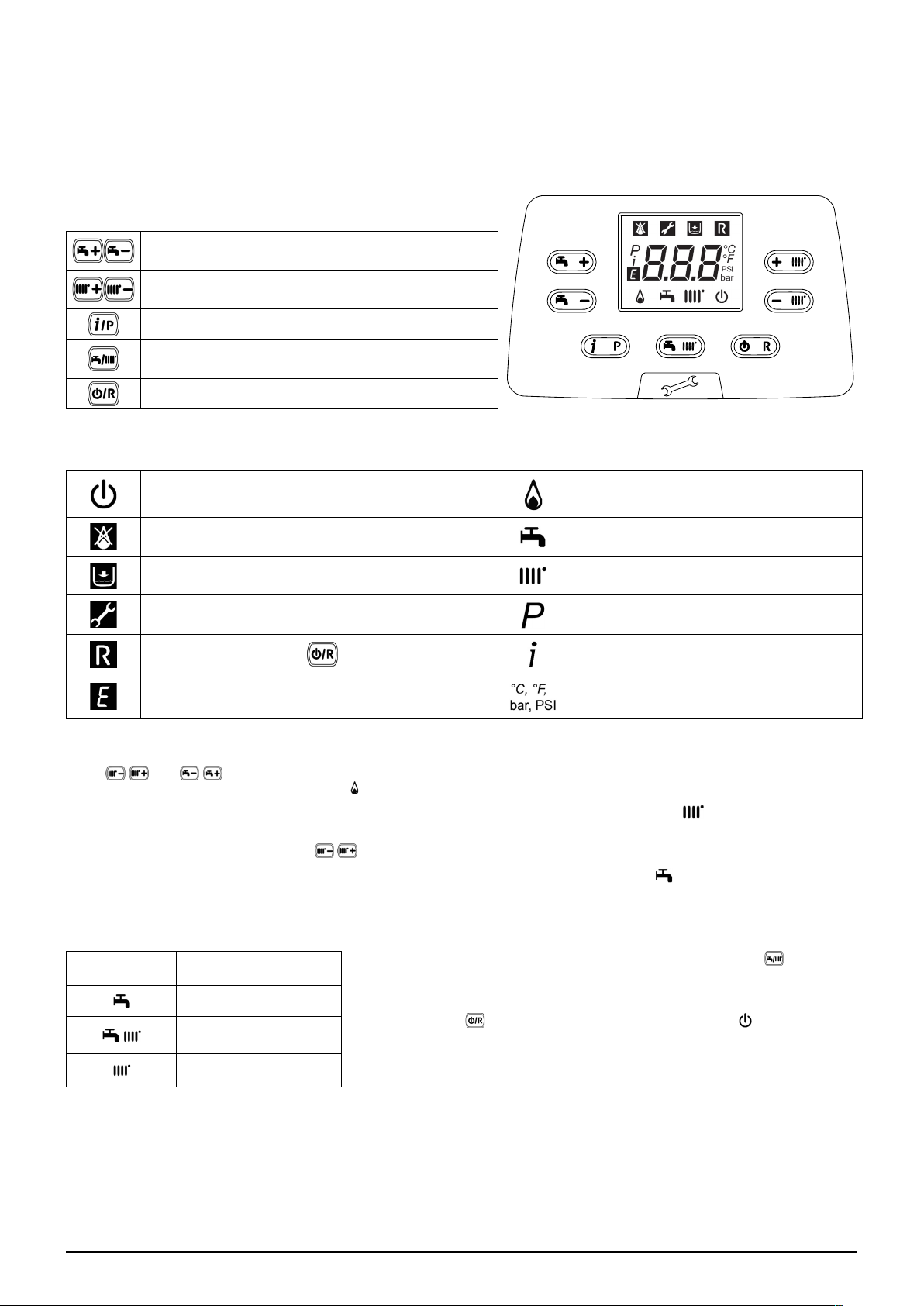

Key to BUTTONS

DHW temperature adjustment

(+ to increase the temperature and – to decrease it)

Heating water temperature adjustment

(+ to increase the temperature and – to decrease it)

Boiler operating information

Operating mode:

DHW – DHW & Heating – Heating Only

Off – Reset – Exit menu/functions

Key to SYMBOLS

Off: heating and DHW disabled

(only boiler anti-freeze protection is active)

Burner lit

Fault preventing the burner from lighting DHW operating mode enabled

Boiler/system water pressure low Heating mode enabled

Technical Service Centre call-in Programming menu

Manually resettable fault ( )

Boiler information menu

Fault in progress Set unit of measurement (SI/US)

1.1 ADJUSTING THE CH AND DHW FLOW TEMPERATURE

Press and respectively to adjust the CH and DHW ow temperature (if an external storage boiler is tted). When

the burner is lit, the display shows the symbol .

HEATING: while the boiler is operating in the heating mode, the display shows the ashing symbol and the heating delivery

temperature (°C).

When connected to an External Sensor, indirectly adjust the room temperature (factory setting 20°C - see section 11.2.1).

DHW: While the boiler is operating in the DHW mode, the display shows the ashing symbol and the primary boiler circuit

temperature (°C).

1.2 OPERATING MODES

SYMBOL

DISPLAYED

OPERATING MODE

To enable the appliance in DHW - Heating or Heating only press

repeatedly

and choose one of the three available modes.

To disable the boiler operating modes whilst keeping the anti-freeze function

enabled, press

for at least 3 seconds. Just the symbol appears on the

display (the display backlighting ashes if the boiler is blocked).

DHW

DHW & HEATING

HEATING ONLY



Download manual in English (PDF, 1.4 MB)
