7679433.01 (3-06/17) 10

INSTALLER Section (en)

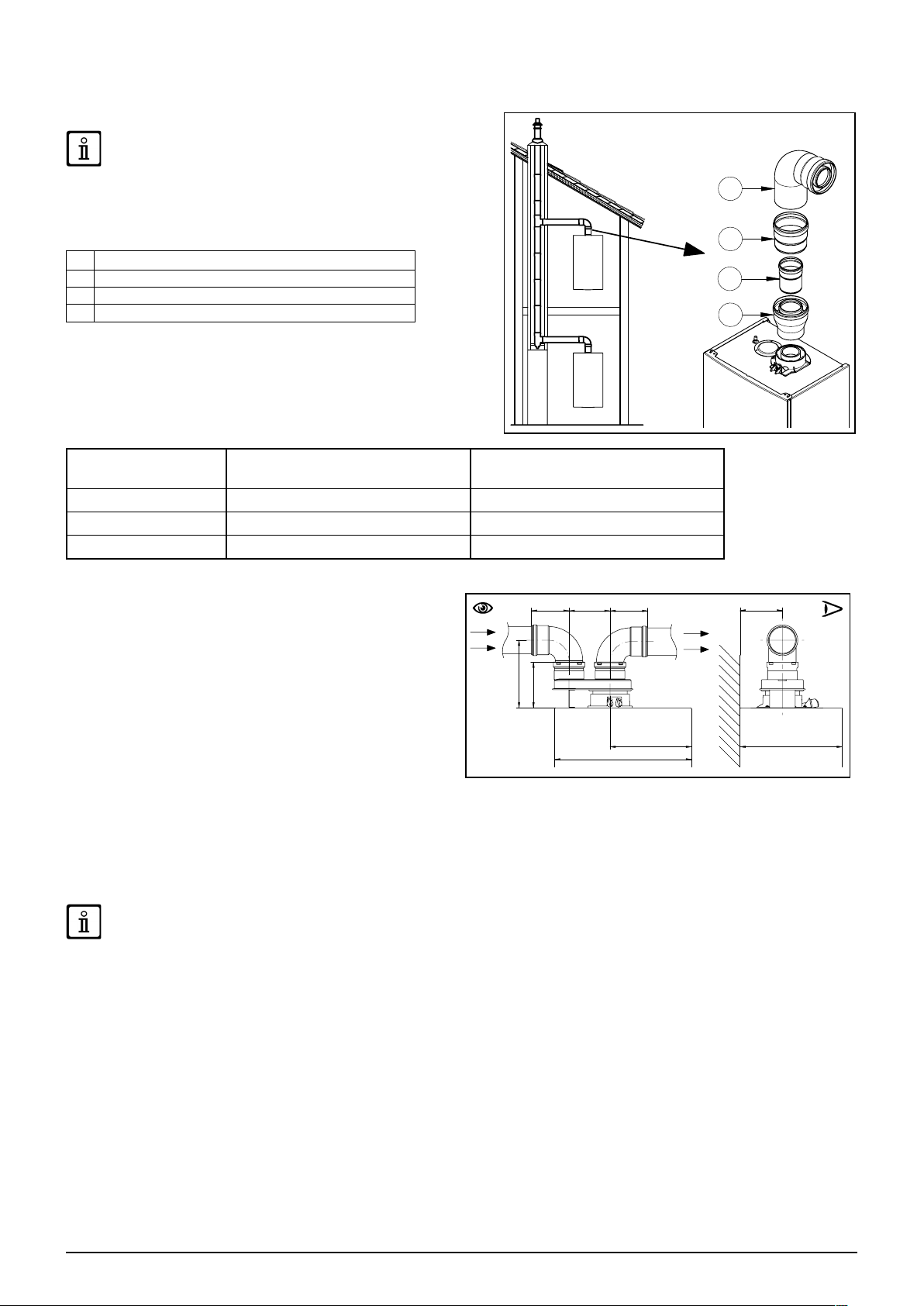

10.1.1 C43P EXHAUST TYPE

Collective positive pressure ue pipe for sealed chamber boilers

This type of installation is only possible with natural gas

boilers (G20)

In order to connect the boiler to a C43P collective ue pipe, the non-

return valve is required.

The sizing of the ue pipe is dened by the conduit supplier in

accordance with EN 13384-2.

1 90° elbow Ø 80/125 mm

2 Conduit Ø 80/125 mm

3 Non-return valve Ø 80 mm

4 Adaptor Ø 60/100 -> 80/125 mm

For this type of installation, it is necessary to modify the P71 and P72

parameters in the electronic card as shown in the table (also see the

SERVICE instructions).

After changing the parameters, the boiler must be calibrated as

described in the SERVICE manual.

Model

P72

Qmin - Pressure at the chimney 25 Pa

P71

Qmax - Pressure at the chimney 86 Pa

MPX 24 - MPX 20/24 MI 85 130

MPX 24/28 MI 85 185

MPX 28/33 MI 85 180

10.2 SEPARATE DUCTS

For special installations of the fumes inlet/outlet ducts, the

single splitting kit (C), supplied as an accessory, can be used.

This accessory, in fact, can be used to move the inlet and outlet

in any direction. This type of installation makes it possible to

discharge exhaust fumes both outside the building and into

single ue ducts. Comburent air can be drawn in at a different

location from that of the ue terminal. The splitting kit is xed

to the boiler turret (100/60 mm) and allows the comburent air

and outlet fumes to enter/leave the two separate ducts (80

mm). For further information, read the assembly instructions

supplied with the accessory.

The 90° bend is used to connect the boiler to the inlet and

outlet ducts, adapting them to various requirements. It can

also be used as a supplementary curve combined with a duct or a 45° bend.

• A 90° bend reduces the total duct length by 0.5 metres.

• A 45° bend reduces the total duct length by 0.25 metres.

• The rst 90° bend is not included when calculating the maximum available length.

SOME OUTLET DUCT INSTALLATION EXAMPLES AND THEIR RELATIVE MAXIMUM LENGTHS ARE SHOWN IN ANNEX

"SECTION" D AT THE END OF THIS MANUAL.






























