Manual Clarke CBM 130SS Water Pump

Need a manual for your Clarke CBM 130SS Water Pump? Below you can view and download the PDF manual for free in English. This product currently has 0 frequently asked questions, 0 comments and has 0 votes. If this is not the manual you want, please contact us.

Is your product defective and the manual offers no solution? Go to a Repair Café for free repair services.

Manual

WATER CONNECTIONS

IMPORTANT: The pump must not be connected to the power supply until the

hose/pipe installation is completed.

If any part of the system is to be connected to the mains water supply, do ensure

that you comply with your local water authority regulations.

Because of the variety of possible installations, no plumbing accessories are supplied

as standard with your pump, (except for the Handy Pump 2, which is provided

with a 4 metre inlet hose complete with a foot valve and filter). However,

accessories designed specifically for this range of pumps are available from your

CLARKE dealer and are listed on page 30.

The pump must always be installed and operated in a horizontal position i.e. with

the outlet port facing vertically upwards. The fixing holes in the base should be

used as necessary to secure the pump firmly in its operating position. (Not

applicable to the Handy Pump 2, which is portable). Also, ensure that there is

adequate air circulation around the motor.

Avoid situations where there is the risk of water coming into contact with the outside

of the pump. Neither the motor or the terminal box are designed to be waterproof.

These notes are for guidance on how to achieve a proper working system.

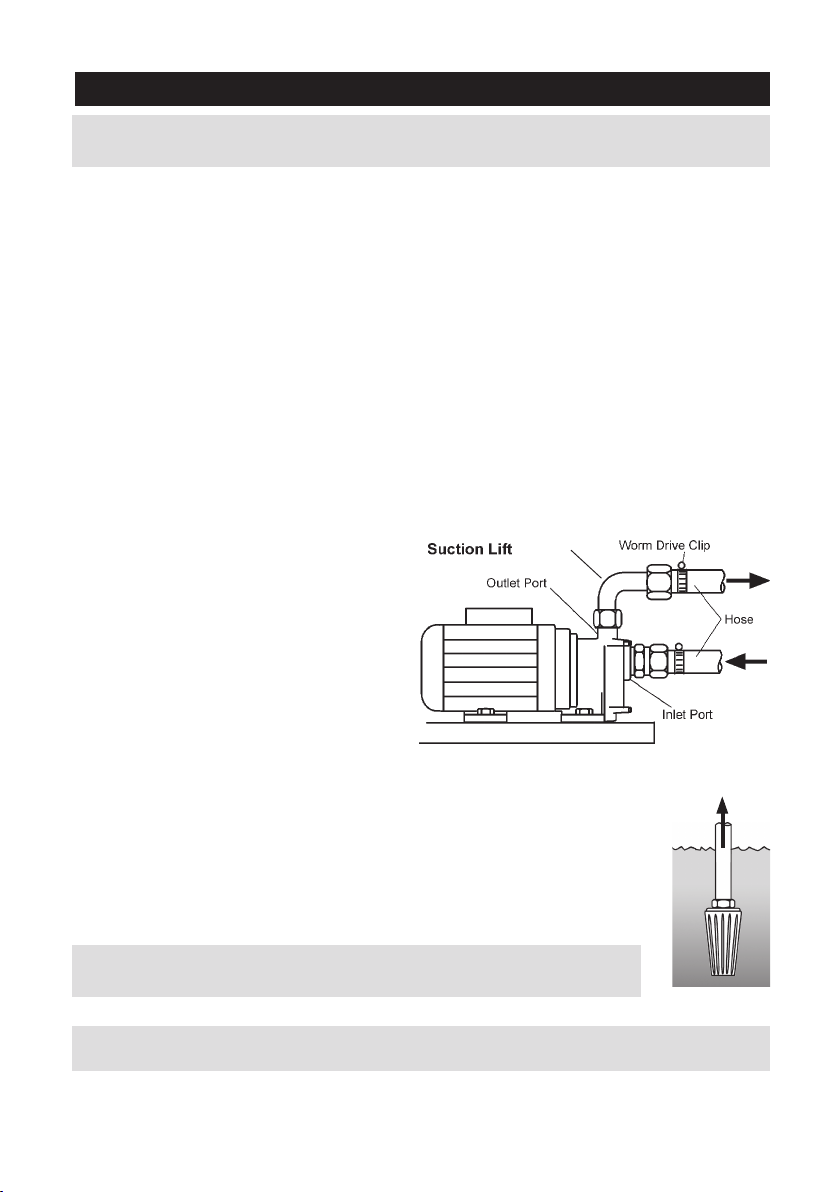

The schematic diagram opposite illustrates

a typical pipework installation.

The suction lift i.e. the vertical distance

between the water level and the pump

should not exceed the distance

specified for your pump. (See

Specifications, pages 9 to 11).

A foot valve and filter should be fitted

to the lower end of the suction hose,

as illustrated below, so as to help retain

Outlet Adapter

water in the suction system and to prevent the possibility of large foreign bodies

entering the pump body.

A 1” BSP hose adapter will be required for connection to the inlet

port. This is available from your CLARKE dealer.

The performance of your pump will be effected by the diameter of the

inlet pipe - any restriction will greatly reduce the flow. We strongly

recommend that you use a diameter pipe which is as large as practicable,

with a suitable reducer for connection to the 1” BSP inlet adapter.

NOTE: The Handy Pump 2 is provided with a 4 metre inlet hose

complete with a foot valve and filter

The delivery hose should be attached to the outlet adapter which is supplied.

IMPORTANT: In the case of the CBM250SS model, the hose MUST rise vertically

for 70cm before elbows are connected.

A gate valve may be installed in-line on the delivery side of the pump which can be set

as required to regulate the flow of water. DO NOT place any such restriction on

Filter

Foot

Valve
