Manual

5 <

IMPRESSIVE FIGURES

Making an El Primero

movement involves:

> 9 months of work

> 296 expert craftsman

> 2,500 operations

> 50 milling operations

on the dial side

> 77 other milling operations

on the bridge side

> 18 different metals in

the classic version

Characteristics

> 13-

ligne

calibre. 30 mm diameter

> 36,000 vibrations/hour

> Minimum 6.5 mm thickness.

> Minimum of 280 components

and 31 jewels

> Index assembly with

ﬁne adjustment

> Power reserve of over 50 hours

> Central rotor with ball bearings

> Automatic winding in

both directions

> Fast date adjustment

> Chronograph function

(except Synopsis models)

> Column-wheel chronograph

control centre

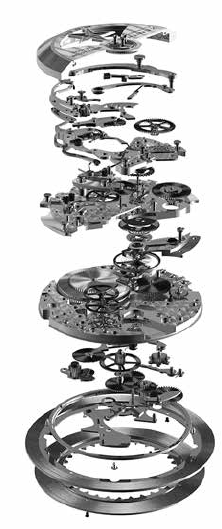

1 > THE EL PRIMERO MOVEMENT

LOOK AT IT CAREFULLY!

Before you is the most famous movement in watchmaking

history, one which every watch enthusiast around the world

is capable of naming.

It is currently the world’s most accurate series-produced

movement. Its secret lies in the cadence of its balance. Whil st

other movements generally perform 8 vibrations per second

at best, the El Primero calibre beats 10 times in that same

second. Its development has been accompanied by a number

of breakthrough innovations, including dry lubrication that

ensures excellent long-term stability, and the power reserve

that had to be optimised to match the higher and more energy-

consuming frequency. All Zenith watches are equipped with a

proprietary Zenith movement.

Few brands in the world can lay claim to such a rigorous

approach. When you opt for a Zenith timepiece, you enjoy the

absolute certainty of owning a watch produced from start

to ﬁnish in the Manufacture of Le Locle. This fundamental

requirement entails a need for calibres that has resulted in

the creation of more than 600 different movements.
