4. Instruction for the Installer

● The side walls of the unit in which the hob is

going to be installed, must not exceed the height

of the working top.

● Avoid installing the appliance in the proximity of

inflammable materials (e.g. curtains, tea towels

etc.).

● The following instructions about installation and

maintenance must be carried out by qualified

personnel in compliance with the regulation in

force. The regulation to be applied for this type of

installation is NBN D 5I.003 : "Installations

functioning with combustible gas lighter than

air".

● The appliance must be electrically disconnected

before all interventions. If any electric supply to

the appliance is required to carry out the work,

ensure all the necessary precautions are

followed.

GAS CONNECTION

It is indispensible that the connection to the gas mains

are carried out by means of an AGB tap. Choose fixed

connections or use a flexible pipe in AGB (stainless

steel).

If using flexible metallic pipes, be careful they do not

come in contact with mobile parts or they are not

squeezed. Use the same attention when the hob is

combinated with an oven.

This hob can be operated by Slochteren gas (G25) with

a nominal pressure of 25 mbar or by natural gas with

nominal pressure of 20 mbar. No regulation is required

for use by these two types of gas.

Before fitting the appliance ensure that the installation

has the correct voltage for the appliance. At full capacity,

the drop in pressure must not exceed 5%. Such a drop

in pressure is caused by the following parameters:

- maximum capacity of meter;

- diameter and lenght of the tube in front and behind

the meter;

- section of transit of variuos tubes positioned on the

circuit;

- diameter of eventual connections.

IMPORTANT - To ensure a correct operation, a saving

of energy and the long-life of the appliance, the voltage

pressure of the appliance must correspond to the

recommended values.

The adjustable connection is fixed to the comprehensive

ramp by means of a threaded nut GJ 1/2". Interpose the

sealing between the components as shown in fig. 3.

Screw the parts without forcing, adjust the connection in

the required direction and tighten everything.

The adjustable connection allows the feeding pipe to be

situated in the site purposefully allocated on the side of

the protection box of the hob itself (Fig. 4). This connection

allows the overall dimensions of the hob plus the fedding

pipe to be contained into a depth of 30 mm.

IMPORTANT - When the final connection has been

made, it is essential that a thorough leak test is carried

out on the hob and installation. Use some soapy water,

never a flame.

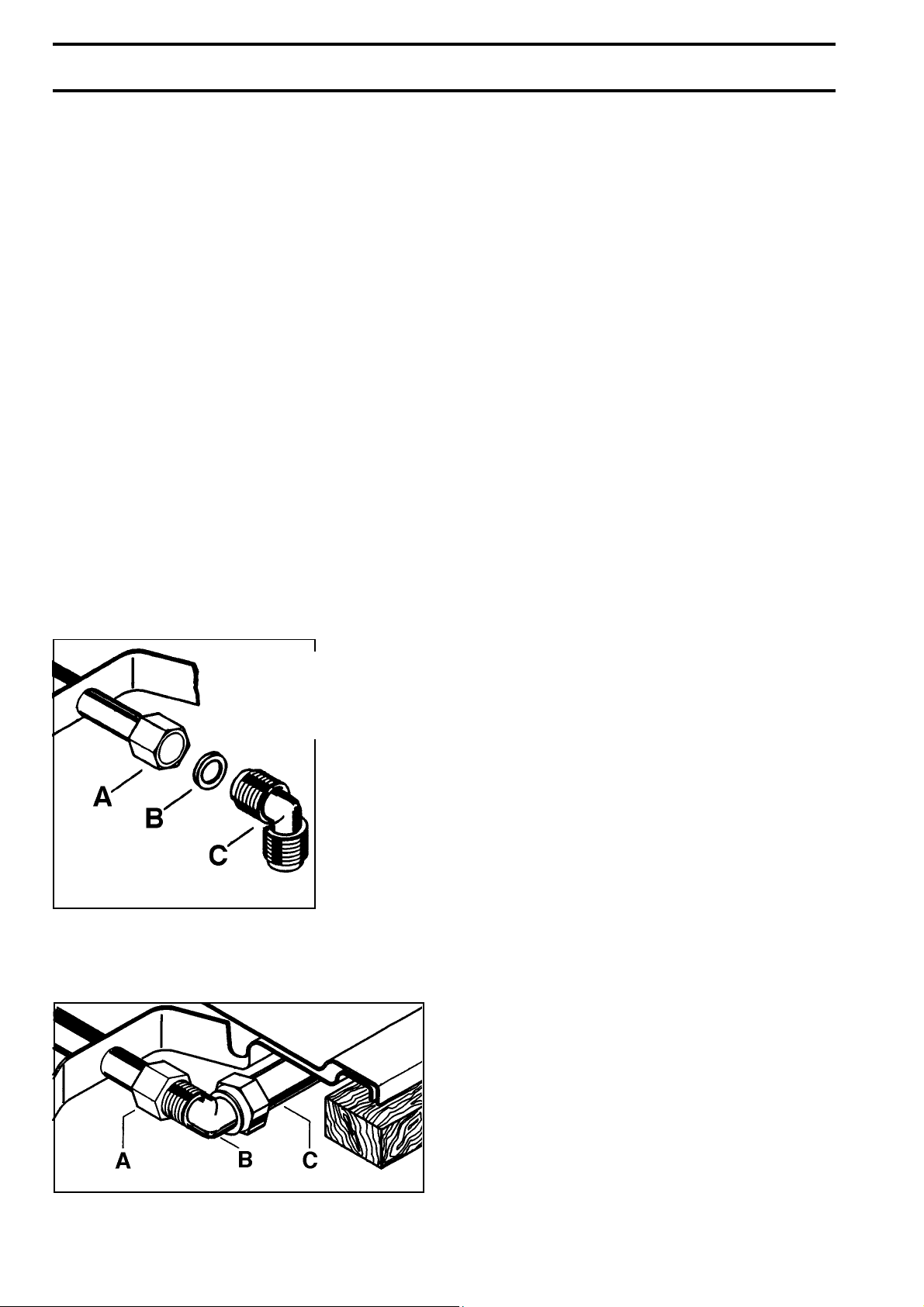

A) Ramp with ending nut

B) Seal

C) Adjustable connection

Fig. 3

FO 0264

Fig. 4

A) Ramp ending with nut

B) Adjustable connection

C) Rigid or flexible metallic gas pipe

FO 0265
