PRATICAL ADVICE FOR USING THE BURNERS

IMPORTANT: WHEN THE HOB IS IN USE, THE ENTIRE HOB AREA MAY BECOME HOT.

• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting.

• Press the knob against the control panel to ignite the burner.

• After the burner has ignited, keep the knob pressed for about 5-10 seconds to allow proper device operation.

This burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of sudden

draught, an interruption in the gas delivery, boiling over of liquids, etc.).

• The knob must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not remain lit,

wait at least one minute before trying to light it again.

In the event of the burners flames being accidentally extinguished, turn off the burner control and do not attempt to

reignite it for at least one minute.

NOTE: should particular local conditions of the delivered gas make the ignition of burner difficult, it is advisable to repeat

the operation with the knob turned to small flame setting.

The burner might go out when the knob is released. This means that the safety device has not warmed up enough. In this

case, repeat the operations described above.

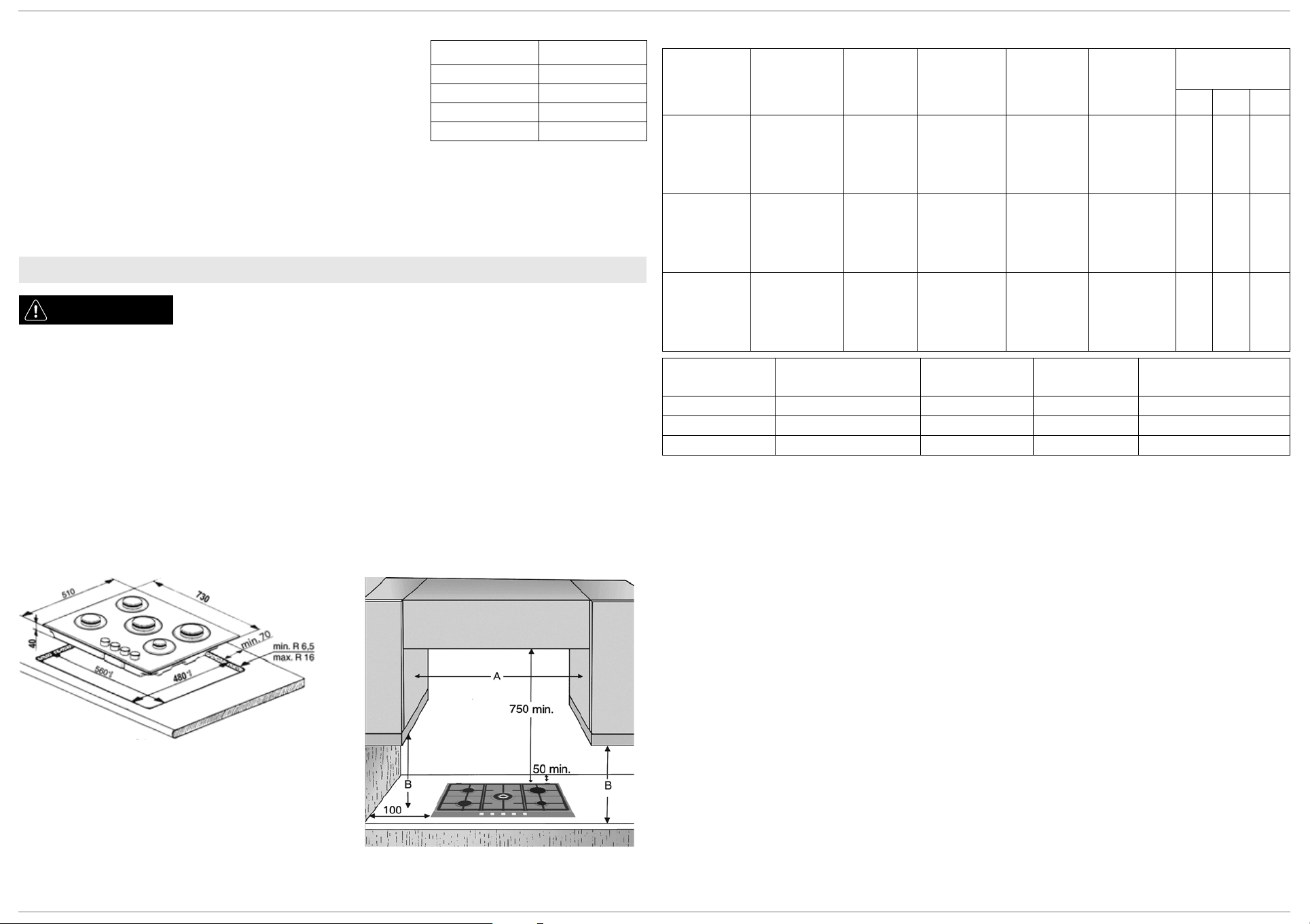

DIMENSIONS AND DISTANCES TO BE MANTAINED (mm)

This hob has burners of different diameters. For better burner performance,

please stick to the following rules:

- Use pots and pans with bottoms the same width as that of the burners or

slightly larger (see table on the right).

- Only use flat-bottomed pots and pans.

- Use the correct amount of water for cooking foods and keep the pot

covered.

- Make sure pots on the grates do not protrude beyond the edge of the hob.

IMPORTANT: improper use of the grids can result in damage to the hob: do

not position the grids upside down or slide them across the hob.

Do not use:

- Cast iron griddles, ollar stones, terracotta pots and pans.

- Heat diffusers such as metal mesh, or any other types.

- Two burners simultaneously for one receptacle (e.g. fish kettle).

Burner Pot Ø

Power burner From 24 to 26 cm

Rapid From 24 to 26 cm

Semi-rapid From 16 to 24 cm

Auxiliary From 8 to 14 cm

HOW TO USE THE HOB

WARNING

Do not let the burner flame extend beyond the edge of the pan.

NOTE: if the distance “A” between the wall cabinets is

between 600 mm and 730 mm, the height “B” must be a

minimum of 530 mm.

if the distance “A” between the wall cabinets is greater

than the width of the hob, the height “B” must be a

minimum of 400 mm.

In case of installation of a hood above the hob, please refer

to the hood instructions fot the correct distance.

INJECTORS TABLE CATEGORY II2H3+

Type of gas

used

Type of burner Injector

marking

Rated thermal

flow rate

Rated

consumption

Reduced heat

capacity

Gas pressure

mbar

kW kW min. rat. max.

NATURAL GAS

(Methane) G20

Power burner

138 A

3.50 333 l/h 1.55

17 20 25

Rapid

129 B

3.00 286 l/h 0.60

Semi-rapid

97

1.75 167 l/h 0.35

Auxiliary

74 B

1.00 95 l/h 0.30

LIQUEFIED

PETROLEUM GAS

(Butane) G30

Power burner

90

3.20 233 g/h 1.55

20 28-30 35

Rapid

86

3.00 218 g/h 0.60

Semi-rapid

65

1.75 127 g/h 0.35

Auxiliary

50

1.00 73 g/h 0.30

LIQUEFIED

PETROLEUM GAS

(Propane) G31

Power burner

90

3.20 229 g/h 1.55

25 37 45

Rapid

86

3.00 214 g/h 0.60

Semi-rapid

65

1.75 125 g/h 0.35

Auxiliary

50

1.00 71 g/h 0.30

Type of gas used Model configuration

5 BURNERS

Rated thermal

flow rate (kW)

Total rated

consumption

Air required (m

3

) for

burning 1 m

3

of gas

G20 20 mbar

1 PB -1 R - 2 SR - 1 AUX

11.00 1048 l/h 9.52

G30 28-30 mbar

1 PB -1 R - 2 SR - 1 AUX

10.70 778 g/h 30.94

G31 37 mbar

1 PB -1 R - 2 SR - 1 AUX

10.70 764 g/h 23.80

ELECTRIC SUPPLY: 220-240 V ~ 50/60 Hz
