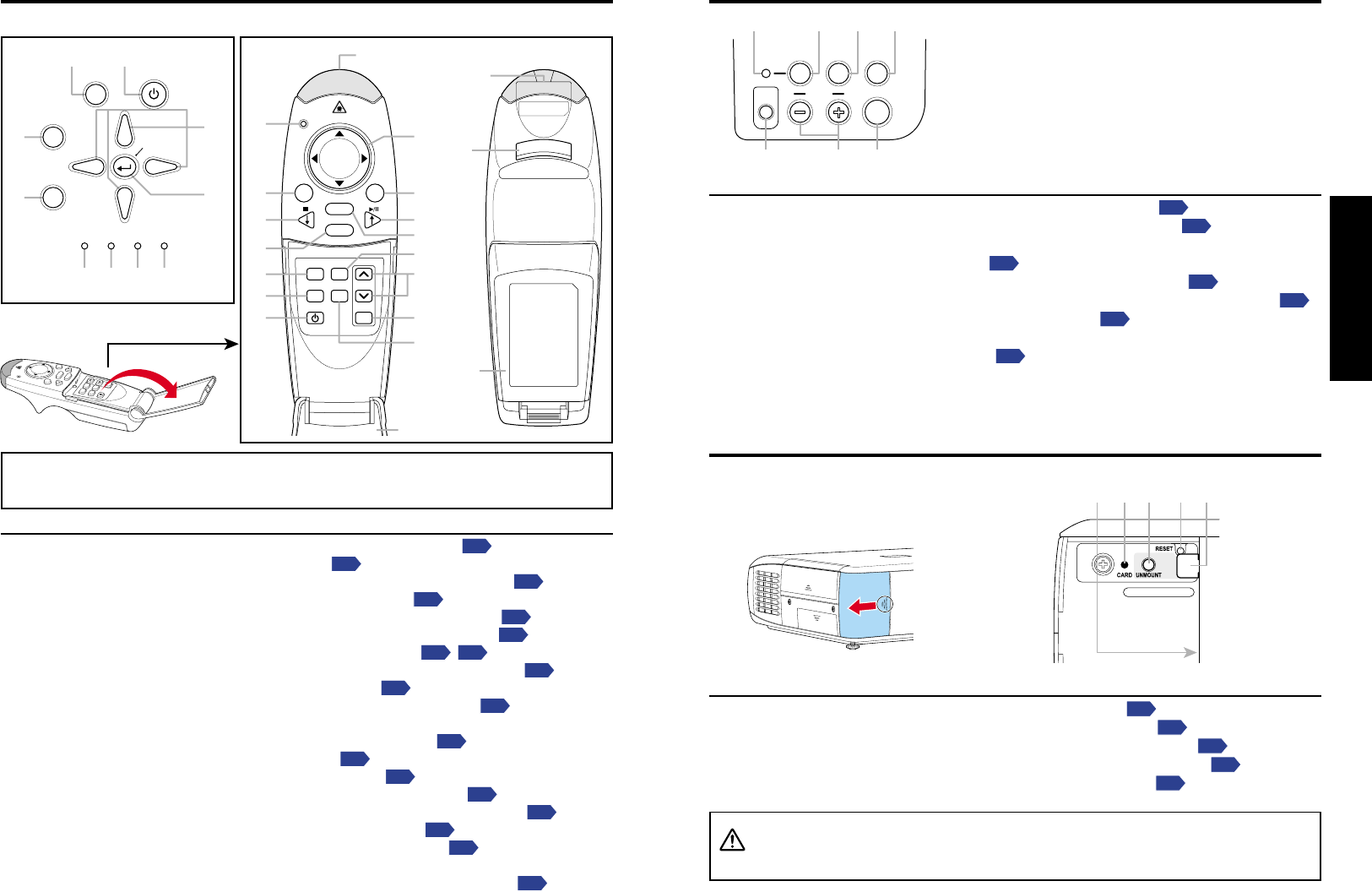

Preparations

Names of each part on the control panel and remote control

Name : Main Function

(1) ON/STANDBY button : Turns the power on/off (standby)

p.25

(2) INPUT button : Selects input

p.27

(3) AUTO KEYSTONE button : Adjusts keystone (trapezoidal distortion)

p.30

(4) AUTO SET button : Sets up image and mode

p.29

(5) MENU/ENTER button : Displays menus and makes selections

p.52

(6) Selection button : Menu selections and adjustments, etc.

p.52

(7) FAN indicator : Displays cooling fan mode

p.26

p.64

(8) TEMP indicator : Lights when internal temperature too high

p.64

(9) LAMP indicator : Displays lamp mode

p.26

(

10

) ON indicator : Displays whether power is on or off

p.25

(

11

) LASER button : Displays laser point

(

12

) PLAY button : Begins PC card slide display

p.42

(

13

) FREEZE button : Pauses image

p.31

(

14

) RESIZE button : Enlarges picture size

p.31

(

15

) OFF button : Turns off enlarged picture display

p.31

(

16

) MUTE button : Cuts off the picture and sound temporarily

p.30

(

17

) STOP button : Ends PC card slide display

p.42

(

18

) PJ MODE button : Switches remote control mode

p.20

(

19

) Transmission indicator : Lights when remote control transmitting

(

20

) L-CLICK button : Left button click of remote control mouse

p.51

W.BALANCE OVERLAY

LOCK

STORE


ARM LIGHT

CAMERACAMERA

GAIN

(1)(2)(3)(4)

(5) (6) (7)

Name : Functions

(1) ARM LIGHT button : Turns camera light on and off

p.44

(2) OVERLAY button : Turns overlay function on and off

p.46

(3) W.BALANCE button : Switches white balance between auto adjust and

lock

p.47

(4) LOCK indicator : Lights when white balance locked

p.47

(5) STORE IMAGE button

[See note 1]

: Stores camera images onto a memory PC card

p.50

(6) CAMERA GAIN button : Adjusts camera gain

p.45

(7) CAMERA button : Switches between camera input and previous

input

p.45

Notes

1: Models equipped with PC card slot

Names of each part on the PC card slot

(Models equipped with PC card slot)

■ Removing the PC card slot cover

Press on the circle (“O”) while sliding the cover

in the direction of the arrow. The cover will come off.

(1) (2) (3) (5)(4)

Name : Functions

(1) PC card slot : Insert PC cards here

p.23

(2) CARD indicator : Displays PC card’s status

p.23

(3) UNMOUNT button : Press before removing PC card

p.23

(4) RESET switch (inside depression) : Press if CARD indicator turns red

p.23

(5) Eject button : Press to remove PC card

p.23

Control panel

FAN TEMP LAMP ON

VOL.

+

VOL.

-

(1)(2)

(3)

(4)

(5)

(6)

(7) (8) (9) (10)

ON/STANDBY

INPUT

MENU

AUTO SET

AUTO

KEYSTONE

ON/

STANDBY

AUTO

KEYSTONE

MUTE

AUTO SET FREEZE

INPUT

R-CLICK

PJ MODE LASER

VOL.

+

VOL.

-

MENU / ENTER

RESIZE

OFF

(1)

(2)

(3)

(4)

(5)

(6)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

I

N

P

U

T

R

-C

L

I

C

K

P

L

A

Y

S

T

O

P

P

J

M

O

D

E

LA

SE

R

V

O

L

.

-

ME

NU

/

E

N

TE

R

O

N

/

S

T

A

N

D

B

Y

A

U

T

O

K

E

Y

S

T

O

N

E

M

U

T

E

A

U

T

O

S

E

T

F

R

E

E

Z

E

R

E

S

I

Z

E

O

F

F

Remote Control

Rear

Front

Remote control

transmitter

Laser

emitter

Battery cover

Control button

cover

Caution - use of controls or adjustments or performance of procedures other

than those specified herein may result in hazardous radiation exposure.

Names of each part on the camera control panel

(Models equipped with

document camera)

CAUTION

Do not carry the projector by having the PC card slot cover part.

Doing so, the projector may fall if that cover comes off, and injury or

damage may result.

Rating
