x-HLV4

User Manual

Part Number:

Installation Instructions

LED Headlight Kit

Important: Read all instructions prior to installation.

Rev Date: V1 11/08/2016

Safety and Notes

1. Product shall be installed and serviced by a qualied technician.

2. LED headlight replacements are weatherproof when used in an

approved headlight housing assembly.

3. Good heat dissipation will prolong the working life of the driver,

ensure good ventilation.

4. Check voltage of the vehicle to be sure it complies with working

voltage of the product. (9~32 VDC)

5. Ensure all wire connections and polarities are correct before

applying power to avoid any damages to the LED lights.

6. If a fault occurs, return product to Super Bright LEDs. Do not

attempt to x this product by yourself.

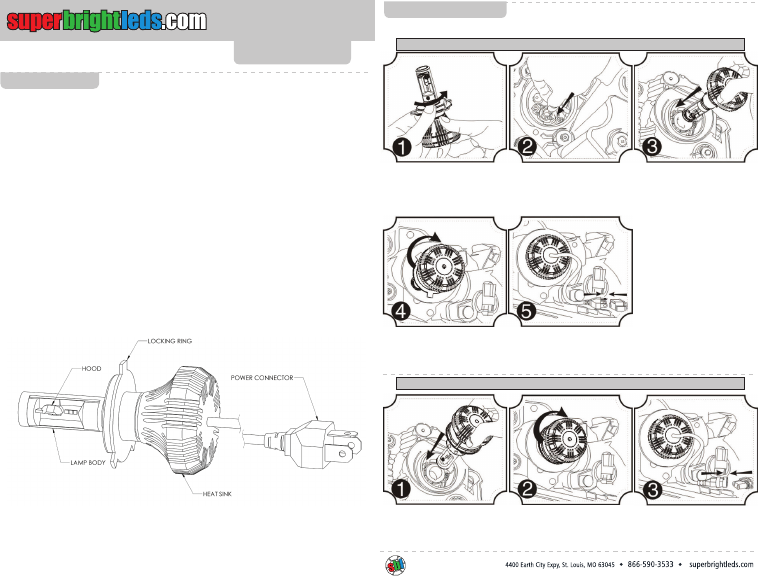

Remove bulb retaining ring if so equipped and remove stock bulb.

H4/H7/9007

H8/H11/H13/H16JP/P13/9004/9005/9006/PSX24/PSX26

Turn locking ring

counter clockwise

until it stops and lift

to remove.

Rotate the lamp

body clockwise until

it stops.

Insert lamp body into

housing. Position as

shown in FIG. 1.

Insert locking

ring into housing

and reinstall bulb

retaining ring.

Connect bulb to

original car lamp

connector.

Rotate lamp body

clockwise until it

stops.

Insert the lamp body into the

locking ring. Ensure posts on

lamp body are aligned with

slots in locking ring and low

beam hoods are positioned

as shown in FIG. 1.

Connect bulbs to

original car lamp

connector.

MAKE SURE HOOD IS POSITIONED AS SHOWN ONCE INSTALLED

LOW BEAM
