Manual

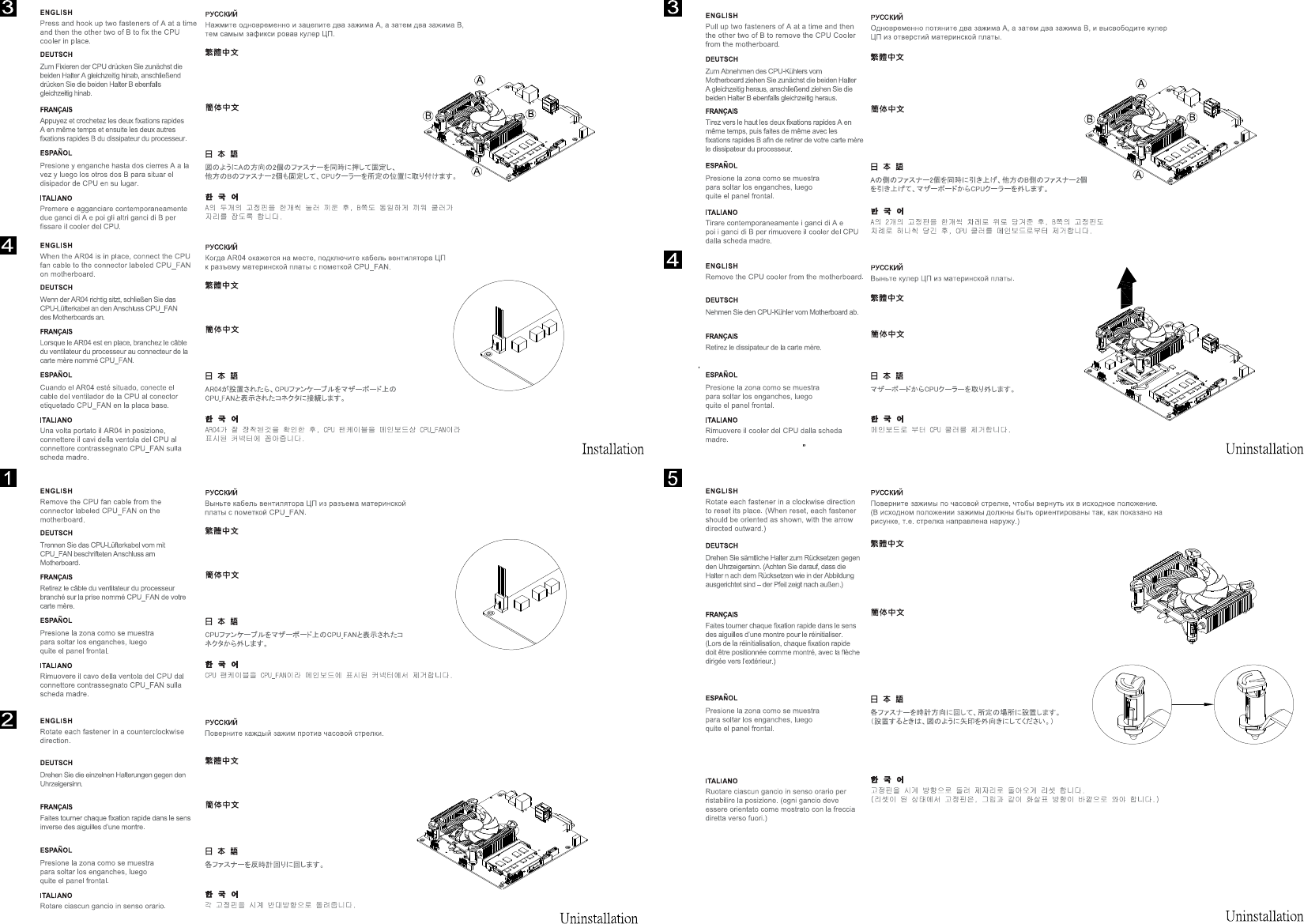

請依圖示下壓與鎖上位置A的2顆散熱器螺絲，

再下壓與鎖上位置B的2顆散熱器螺絲。

请依图标下压与锁上位置A的2颗散热器螺丝，

再下压与锁上位置B的2颗散热器螺丝。

當AR04安裝完成後，將CPU風扇的電源線接上主機板CPU_FAN接頭。

当AR04安装完成后，将CPU风扇的电源线接上主机板CPU_FAN接头。

將CPU風扇的電源線自主機板上的CPU_FAN接頭移除。

将CPU风扇的电源线自主机板上的CPU_FAN接头移除。

請依圖示以逆時針方向鬆開4顆散熱器螺絲。

请依图示以逆时针方向松开4颗散热器螺丝。

請依圖示拉起位置A的2顆散熱器螺絲，

再拉起位置B的2顆散熱器螺絲，

準備將CPU散熱器自主機板取出。

请依图标拉起位置A的2颗散热器螺丝，

再拉起位置B的2颗散热器螺丝，

准备将CPU散热器自主机板取出。

將CPU散熱器自主機板上移除。

将CPU散热器自主机板上移除。

將4顆散熱器螺絲以順時針方向旋轉回復原位。（當回復原位後，

每顆散熱器螺絲上的箭頭應與圖示中的箭頭方向一致）

将4颗散热器螺丝以顺时针方向旋转回复原位。（当回复原位后，

每颗散热器螺丝上的箭头应与图示中的箭头方向一致）
